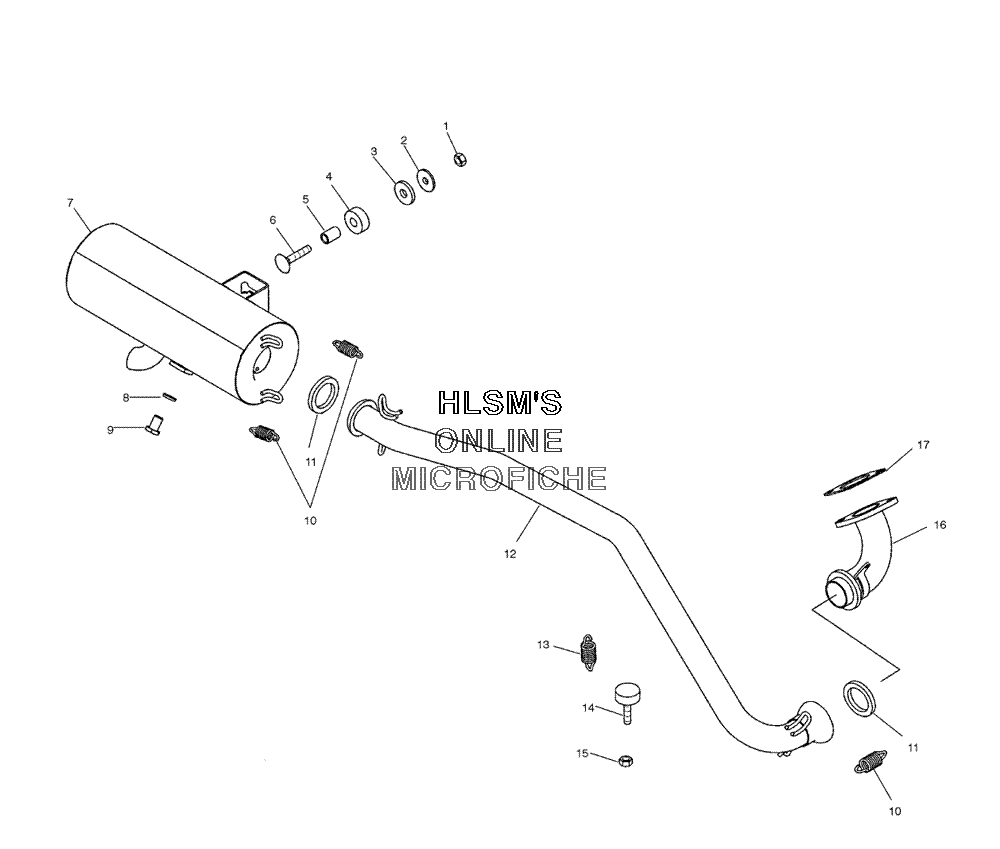

EXHAUST SYSTEM для Polaris ATP 500 4X4 (A04JD50AA) (CAMO GREEN MET.) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
17542324 NUT NYLOKNUT NYLOK
-
27555716 WASHERWASHER
-
35410436 WASHER RUBBERWASHER RUBBER
-
45412233 DAMPENER VIBRATIONDAMPENER VIBRATION
-
55010192 BUSHINGBUSHING
-
67515316 BOLTBOLT
-
71261215-029 WELD SILENCER (BLACK)WELD SILENCER (BLACK)
-
87556230 WASHER CLEAN OUTWASHER CLEAN OUT
-
97512666 BOLTBOLT
-
107041804 SPRINGSPRING
-
115243517 SEAL EXHAUSTSEAL EXHAUST
-
121261222-029 WELD HEADPIPE (BLACK)WELD HEADPIPE (BLACK)
-
137041687 SPRINGSPRING
-
143110064 MOUNT TORQUE STOPMOUNT TORQUE STOP
-
157542301 NUT HEXAGONNUT HEXAGON
