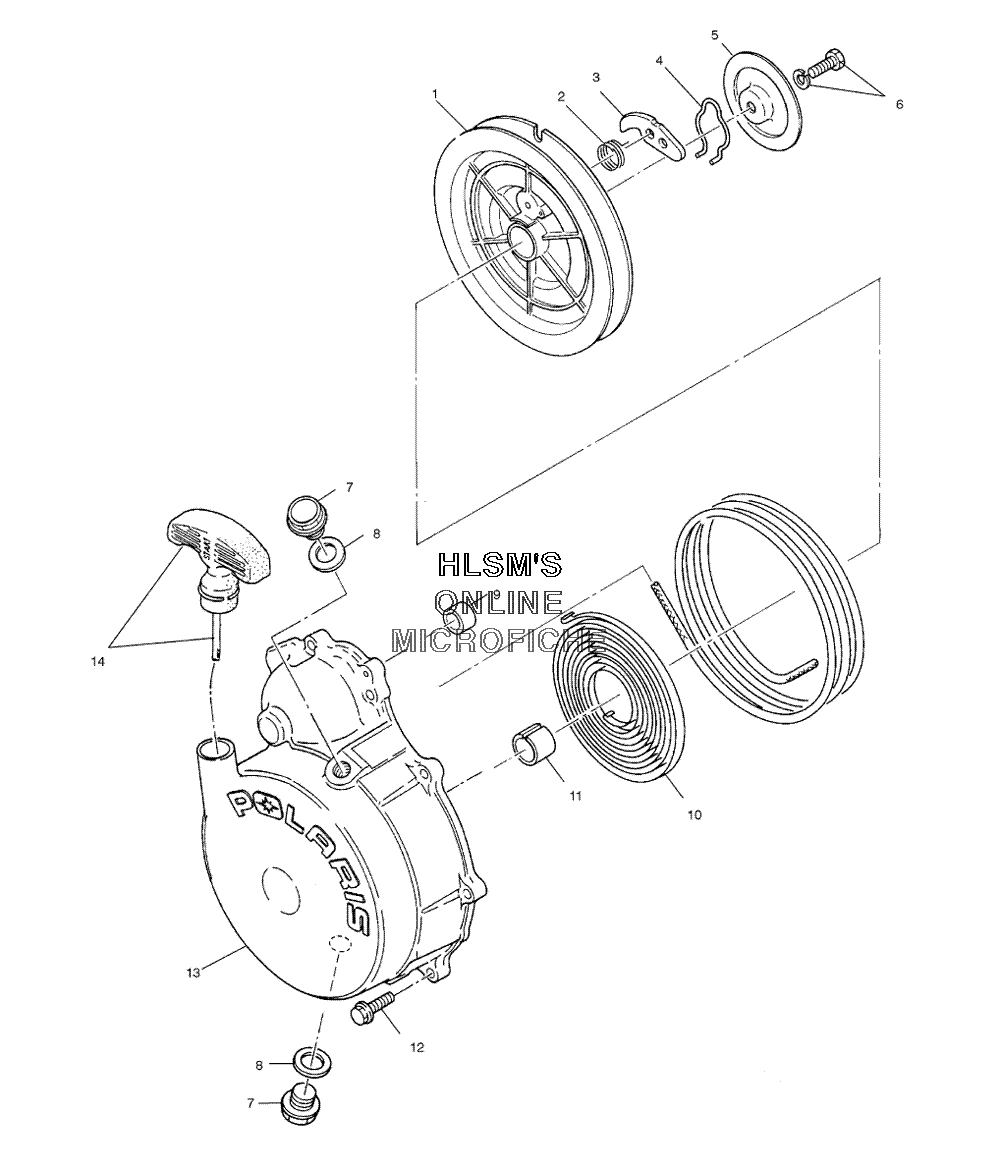

STARTER - RECOIL для Polaris ATP 500 4X4 (A04JD50AA) (CAMO GREEN MET.) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
13084822 REEL ASSYREEL ASSY
-
23083463 SPRING RETURNSPRING RETURN
-
33083378 RATCHETRATCHET
-
43083379 SPRING FRICTIONSPRING FRICTION
-
53084744 PLATE FRICTIONPLATE FRICTION
-
63085266 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
73083453 PLUGPLUG
-
83082956 GASKETGASKET
-
93083669 BUSHING STARTERBUSHING STARTER
-
103083185 SPRING SPIRALSPRING SPIRAL
-
113084750 BUSHINGBUSHING
-
123084877 BOLT FLANGEBOLT FLANGE
-
133087163 RECOIL ASSY (INCL. 1-6, 9-11, 14)RECOIL ASSY (INCL. 1-6, 9-11, 14)
-
133087164 CASE STARTER ASSY (INCL. 11)CASE STARTER ASSY (INCL. 11)
-
143085083 ROPE, ASSYROPE, ASSY
