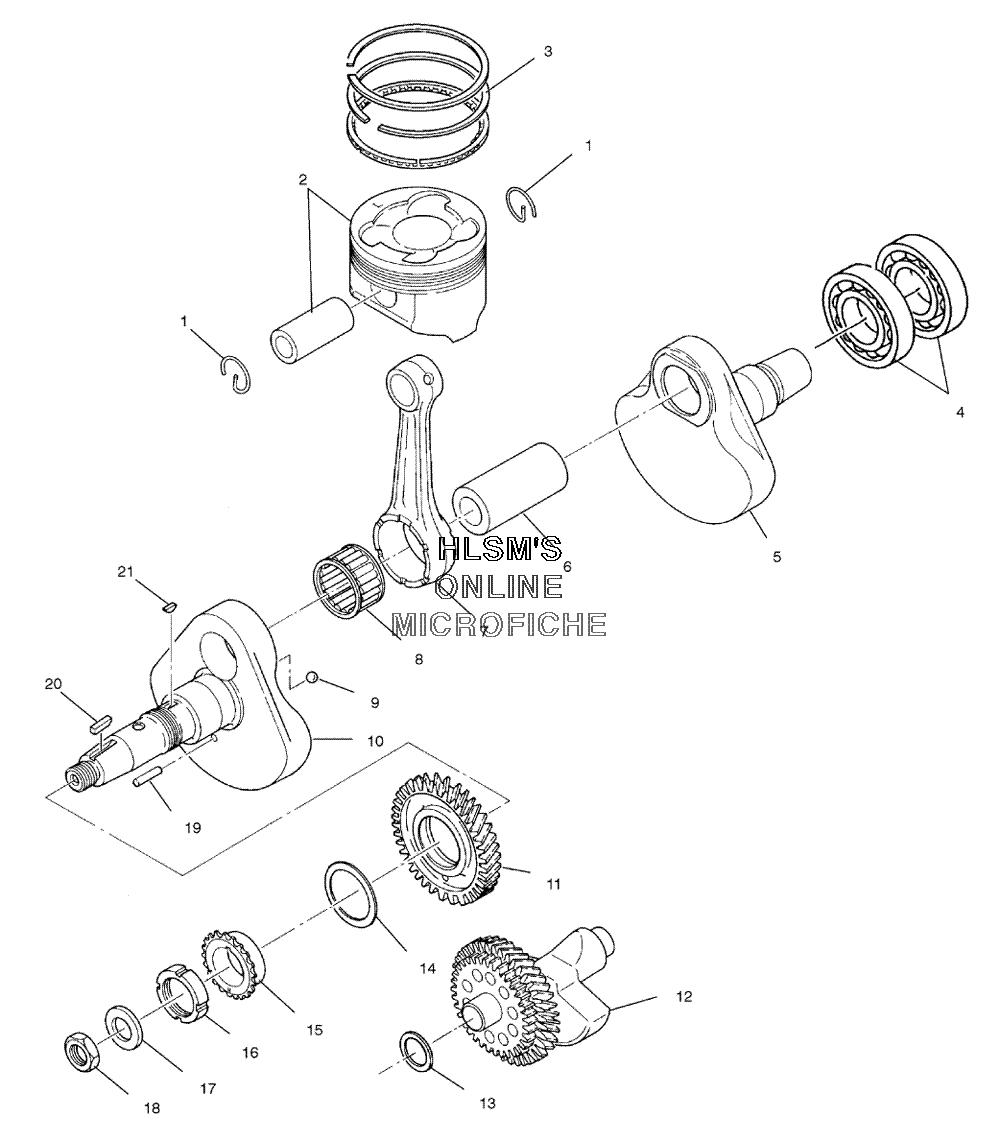

CRANKSHAFT W/ PISTON для Polaris SCRAMBLER 500 4X4 (A04BG50FA) (CANADA) - 2004 года выпуска
-
№АртикулНазвание
-
13085534 CLIPCLIP
-
23087221 SET, PISTON (STD) (INCL. 1)SET, PISTON (STD) (INCL. 1)
-
23087222 SET, PISTON (.010"/.25MM O/S) (INCL. 1)SET, PISTON (.010"/.25MM O/S) (INCL. 1)
-
23087223 SET, PISTON (.020"/.50MM O/S) (INCL. 1)SET, PISTON (.020"/.50MM O/S) (INCL. 1)
-
33087224 SET, PISTON RING (STD)SET, PISTON RING (STD)
-
33087225 SET, PISTON RING (.010"/.25MM O/S)SET, PISTON RING (.010"/.25MM O/S)
-
33087226 SET, PISTON RING (.020"/.50MM O/S)SET, PISTON RING (.020"/.50MM O/S)
-
43085815 BEARING, BALLBEARING, BALL
-
53085812 CRANKSHAFT, #2CRANKSHAFT, #2
-
63085341 CRANK, PINCRANK, PIN
-
73085813 ROD, CONNECTINGROD, CONNECTING
-
83085400 BEARING LARGE ENDBEARING LARGE END
-
93085024 BALL, STEELBALL, STEEL
-
103089257 CRANKSHAFT, ASSY (INCL. 4-11, 19)CRANKSHAFT, ASSY (INCL. 4-11, 19)
-
103089258 CRANKSHAFT 1CRANKSHAFT 1
-
113089245 BALANCE GEAR 1BALANCE GEAR 1
-
123086837 SHAFT, BALANCERSHAFT, BALANCER
-
133084895 SPACER (0.8)SPACER (0.8)
-
133084896 SPACER (1.0)SPACER (1.0)
-
133084897 SPACER (1.2)SPACER (1.2)
-
143240088 SPACER (0.6)SPACER (0.6)
-
143084892 SPACER (0.8)SPACER (0.8)
-
143084893 SPACER (1.0)SPACER (1.0)
-
143084894 SPACER (1.2)SPACER (1.2)
-
153084882 SPROCKET 1SPROCKET 1
-
163085528 NUT, SLITNUT, SLIT
-
173086767 WASHERWASHER
-
183083905 NUT, LOCKNUT, LOCK
-
193086838 PIN, DOWELPIN, DOWEL
-
203081447 KEYKEY
-
213240168 KEY, WOODRUFFKEY, WOODRUFF
