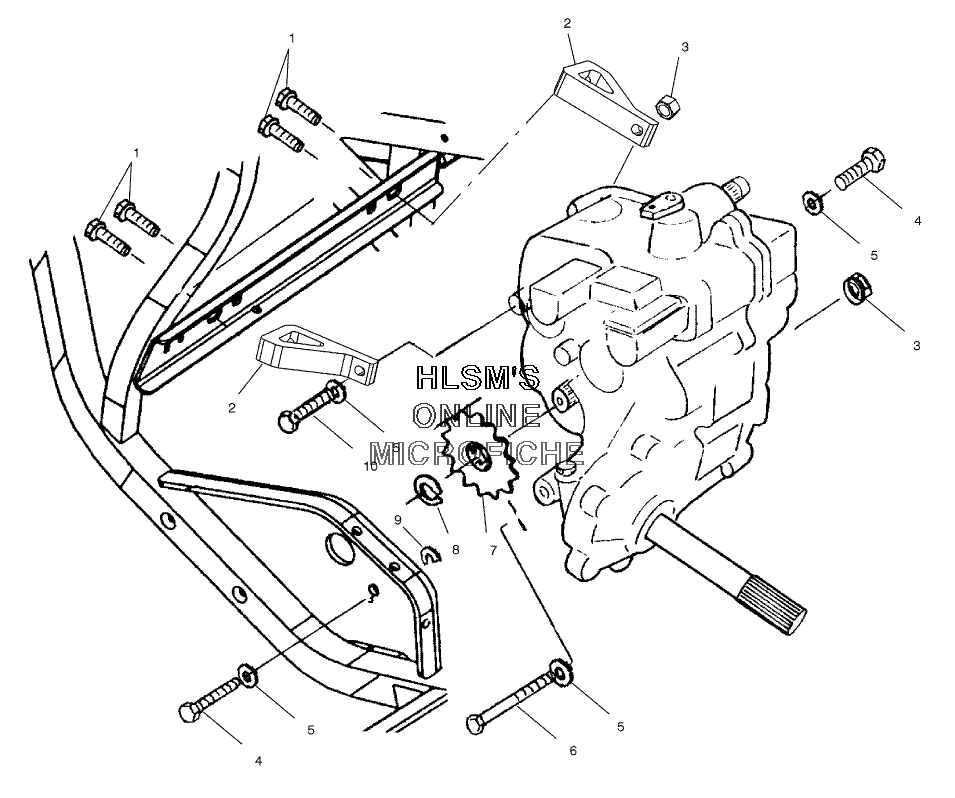

GEARCASE MOUNTING для Polaris SCRAMBLER 500 4X4 (A04BG50FA) (CANADA) - 2004 года выпуска
-
№АртикулНазвание
-
17517632 SCREWSCREW
-
25132046 MOUNT TRANSMISSION MACH (REAR)MOUNT TRANSMISSION MACH (REAR)
-
37547089 NUT FLANGE LOCK YNUT FLANGE LOCK Y
-
47512492 SCREWSCREW
-
57555806 WASHER, FLATWASHER, FLAT
-
67517646 SCREWSCREW
-
73221041 SPROCKET, SPLINED (13T)SPROCKET, SPLINED (13T)
-
87710434 RING, SNAPRING, SNAP
-
95211065 SHIM (.010)SHIM (.010)
-
95210764 SPACER (.020)SPACER (.020)
-
95211517 SHIM (.030)SHIM (.030)
-
107517642 SCREWSCREW
