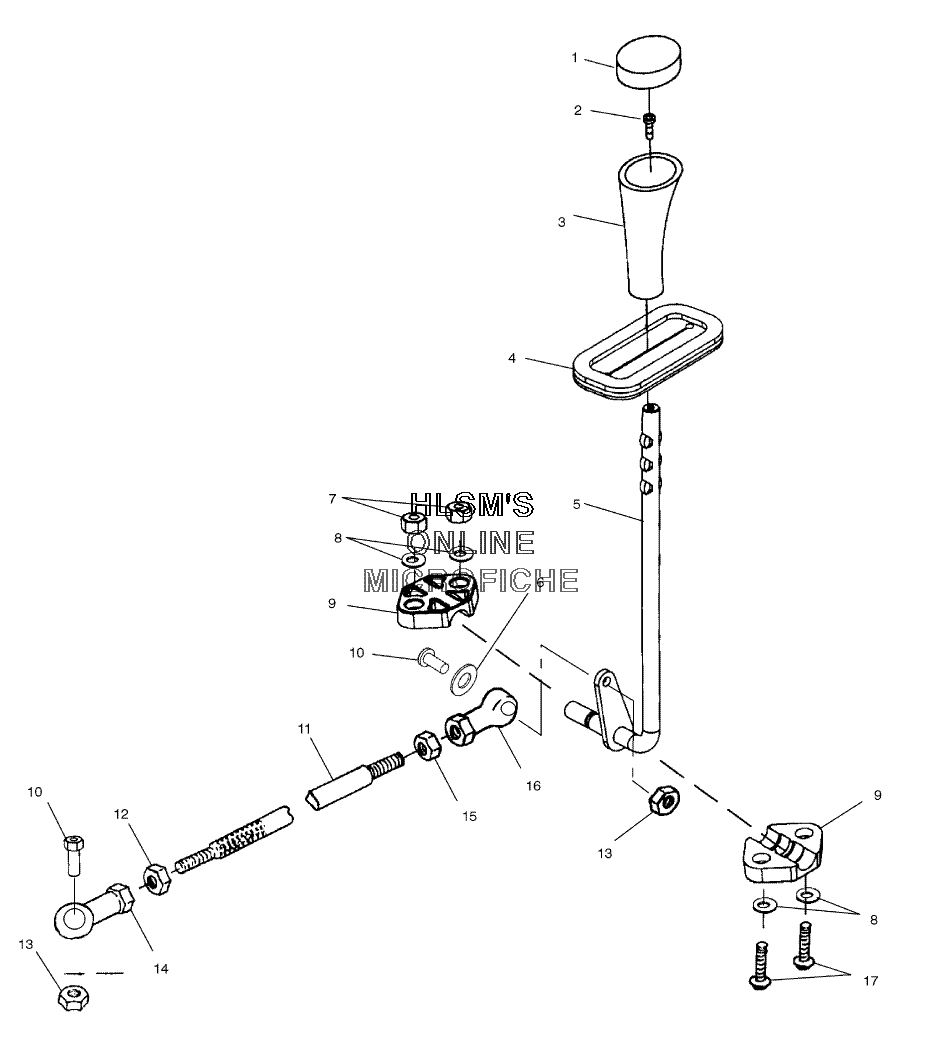

GEAR SELECTOR для Polaris SCRAMBLER 500 4X4 (A04BG50FA) (CANADA) - 2004 года выпуска
-
№АртикулНазвание
-
15411006 KNOB HI/REV ASSYKNOB HI/REV ASSY
-
27512024 SCREWSCREW
-
35411007 KNOB HI/REV ASSYKNOB HI/REV ASSY
-
45411008 GROMMET, HR SHIFTERGROMMET, HR SHIFTER
-
51012797-067 GEAR, SELECTOR (BLACK)GEAR, SELECTOR (BLACK)
-
67556250 WASHERWASHER
-
77542343 NUT, FLANGENUT, FLANGE
-
87558402 WASHER, FLATWASHER, FLAT
-
95435042 MOUNT GEAR SELECTORMOUNT GEAR SELECTOR
-
107518001 SCREW, HEXAGONSCREW, HEXAGON
-
111821206 SHIFT LINKAGE ASSY (19.9") (IF BUILT BEFORE 12/29/03)SHIFT LINKAGE ASSY (19.9") (IF BUILT BEFORE 12/29/03)
-
111821489 SHIFT LINKAGE, ASSY (21.19") (IF BUILT AFTER 12/29/03)SHIFT LINKAGE, ASSY (21.19") (IF BUILT AFTER 12/29/03)
-
127547083 NUT, JAM (RIGHT)NUT, JAM (RIGHT)
-
137546703 NUT, NYLOKNUT, NYLOK
-
147061102 ROD END 5/16 (RIGHT)ROD END 5/16 (RIGHT)
-
157547198 NUT JAM Y (LEFT)NUT JAM Y (LEFT)
-
167061101 ROD END 5/16 (LEFT)ROD END 5/16 (LEFT)
-
177515306 SCREWSCREW
