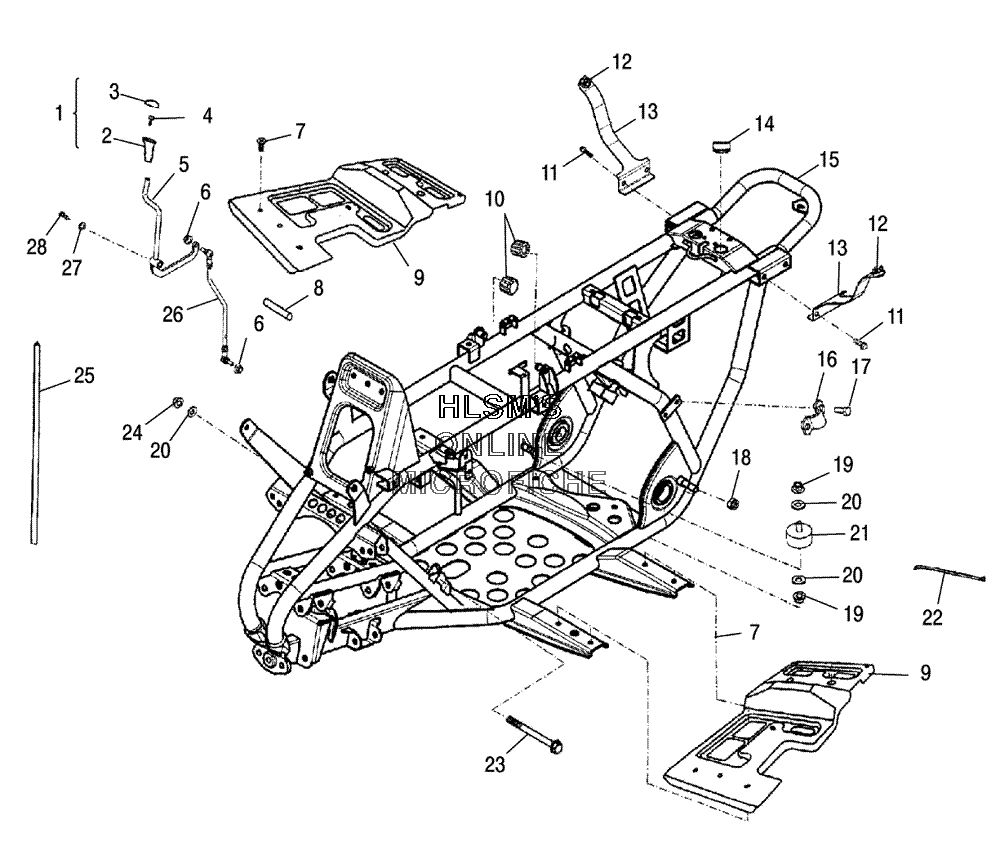

FRAME для Polaris PHOENIX 200 (A05PB20AB) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
10450966 GRIP TRANS LEVERGRIP TRANS LEVER
-
20452168 KNOB TRANSMISSION LEVERKNOB TRANSMISSION LEVER
-
30450967 COVER TRANSMISSION LEVER KNOBCOVER TRANSMISSION LEVER KNOB
-
40450309 BOLT HEXAGONBOLT HEXAGON
-
50452601 SHIFT LEVERSHIFT LEVER
-
60450268 NUT FLANGENUT FLANGE
-
70452597 SCREW PHIL. FAT HEADSCREW PHIL. FAT HEAD
-
80452596 DAMPNER FOOT BRAKE LEVERDAMPNER FOOT BRAKE LEVER
-
90452594 PLATE FOOTWELLPLATE FOOTWELL
-
100452591 GROMMET SEATGROMMET SEAT
-
110452598 BOLT ASSYBOLT ASSY
-
120450800 RUBBERRUBBER
-
130452593 BRACKET CAB SUPPORTBRACKET CAB SUPPORT
-
140450290 RUBBER, SEAT (77220-131-000)RUBBER, SEAT (77220-131-000)
-
150452590 FRAME ASSYFRAME ASSY
-
160452602 BRACKET KICK STARTBRACKET KICK START
-
170450309 BOLT HEXAGONBOLT HEXAGON
-
180452799 NUT HEXAGON (KICK STARTER)NUT HEXAGON (KICK STARTER)
-
190450882 NUT LOCK, NYLONNUT LOCK, NYLON
-
200450279 WASHERWASHER
-
210452592 MOUNT ENGINEMOUNT ENGINE
-
220450559 STRAPSTRAP
-
230452599 BOLT HEXAGON, SEMSBOLT HEXAGON, SEMS
-
240450276 NUT LOCKNUT LOCK
-
250452603 TRIM RUBBERTRIM RUBBER
-
260452600 SHIFT LINKAGESHIFT LINKAGE
-
270452198 WASHER FLATWASHER FLAT
-
280450298 BOLT, HEXAGONBOLT, HEXAGON
