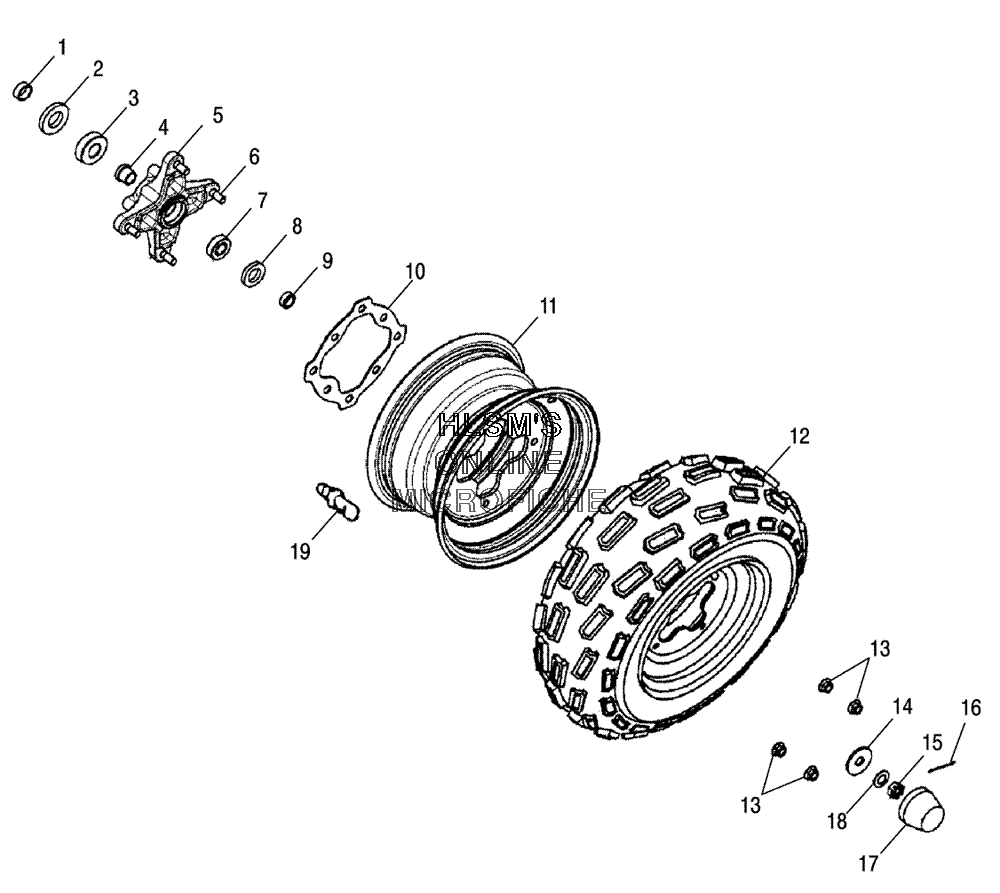

WHEEL - FRONT для Polaris PHOENIX 200 (A05PB20AB) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
15133341 SPACER SPINDLE (INNER)SPACER SPINDLE (INNER)
-
23610093 SEAL LIP (1.00X1.88X.25)SEAL LIP (1.00X1.88X.25)
-
33514528 BEARING BALL, SEALED (6202, 15X35)BEARING BALL, SEALED (6202, 15X35)
-
45133343 SPACER TAPEREDSPACER TAPERED
-
55133294 WHEEL HUBWHEEL HUB
-
65133343 SPACER TAPEREDSPACER TAPERED
-
73514527 BEARING BALL, SEALED (6204, 20X47)BEARING BALL, SEALED (6204, 20X47)
-
83610090 SEAL LIP (875X1.503X.25)SEAL LIP (875X1.503X.25)
-
95133342 SPACER SPINDLE (OUTER)SPACER SPINDLE (OUTER)
-
100452664 SPACERSPACER
-
110452657 RIM FRONTRIM FRONT
-
120452656 TIRE (FRONT) (MAXXIS, 21X7 10)TIRE (FRONT) (MAXXIS, 21X7 10)
-
120452788 TIRE DURO (21X7 10) (DURO)TIRE DURO (21X7 10) (DURO)
-
137542459 NUT, FLANGEDNUT, FLANGED
-
147555633 WASHERWASHER
-
157542712 NUTNUT
-
160450395 PIN COTTERPIN COTTER
-
170452661 CAP HUBCAP HUB
-
180452663 WASHERWASHER
-
190450401 VALVE, RIMVALVE, RIM
