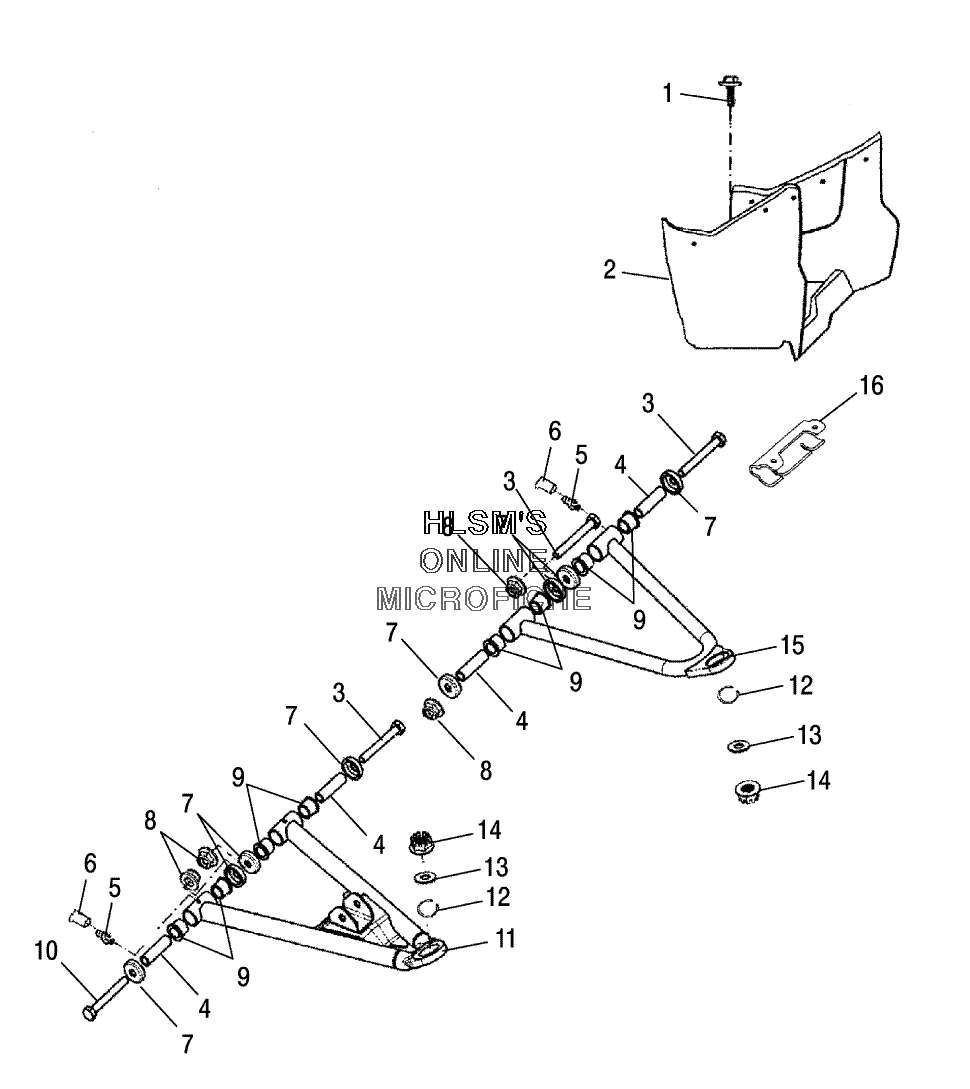

SUSPENSION - SWING ARM W/ FOOTREST для Polaris PHOENIX 200 (A05PB20AB) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
10452215 BOLT HEXAGONBOLT HEXAGON
-
20452628 FOOTREST (LEFT)FOOTREST (LEFT)
-
20452627 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
30452626 BOLT HEXAGON (M10X75)BOLT HEXAGON (M10X75)
-
40452625 SPACER TUBESPACER TUBE
-
50450320 VALVE, GREASEVALVE, GREASE
-
60450321 CAP, RUBBERCAP, RUBBER
-
70451762 CAP RUBBERCAP RUBBER
-
80450249 NUT FLANGENUT FLANGE
-
90451763 BUSHINGBUSHING
-
100451764 BOLT HEXAGON FLANGE (10MM)BOLT HEXAGON FLANGE (10MM)
-
110452622 A-ARM (LOWER/LEFT)A-ARM (LOWER/LEFT)
-
110452621 A-ARM (LOWER/RIGHT)A-ARM (LOWER/RIGHT)
-
120452630 SNAP RINGSNAP RING
-
130450279 WASHERWASHER
-
140450502 NUT LOCKNUT LOCK
-
150452624 A-ARM (UPPER/LEFT)A-ARM (UPPER/LEFT)
-
150452623 A-ARM (UPPER/RIGHT)A-ARM (UPPER/RIGHT)
-
165435861 RETAINER, BRAKE LINE (FRONT)RETAINER, BRAKE LINE (FRONT)
