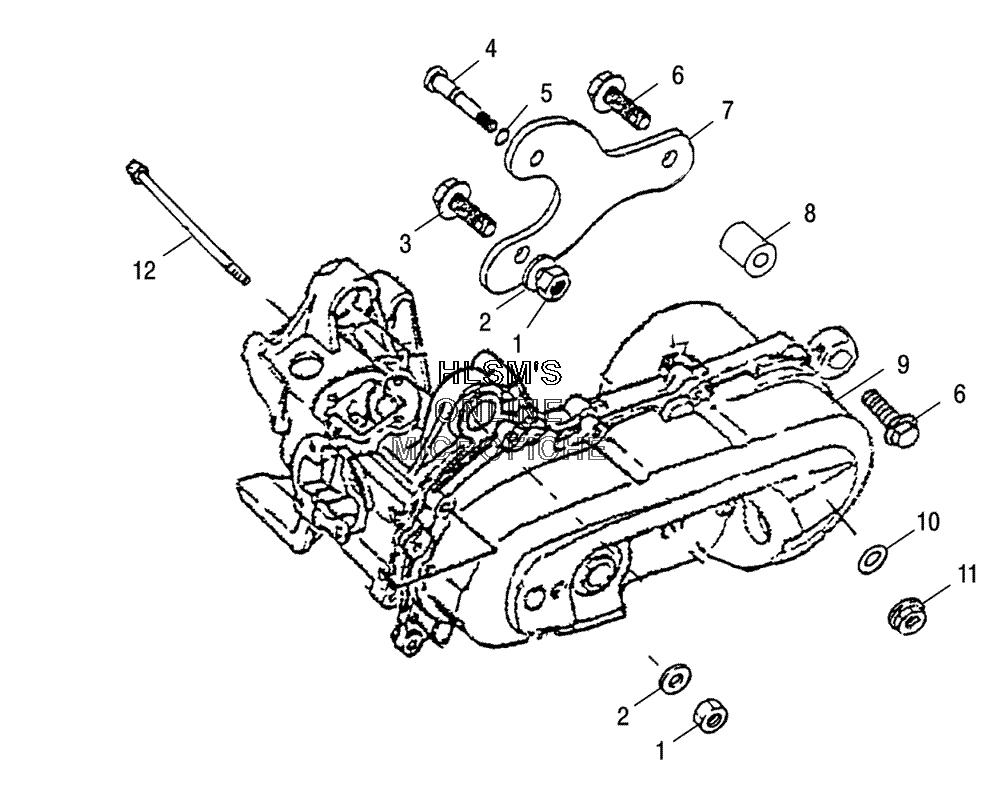

MOUNTING - ENGINE для Polaris PREDATOR 50 (A05KA05CA) - 2005 года выпуска
-
№АртикулНазвание
-
10451751 NUT NYLOCK (12MM)NUT NYLOCK (12MM)
-
20450286 WASHERWASHER
-
30451750 BOLT HEXAGON FLANGE (12MM)BOLT HEXAGON FLANGE (12MM)
-
40450266 SHAFT FIXED ENGINE BRACKETSHAFT FIXED ENGINE BRACKET
-
50450709 O-RINGO-RING
-
60450684 BOLT HEXAGON WASHERBOLT HEXAGON WASHER
-
70451749 BRACKET ENGINEBRACKET ENGINE
-
80450132 BUSHING RUBBERBUSHING RUBBER
-
90451150 ENGINE 50CC ASSYENGINE 50CC ASSY
-
100450192 WASHERWASHER
-
110450268 NUT FLANGENUT FLANGE
-
120451752 BOLT, HEXAGON FLANGE 12MMBOLT, HEXAGON FLANGE 12MM
