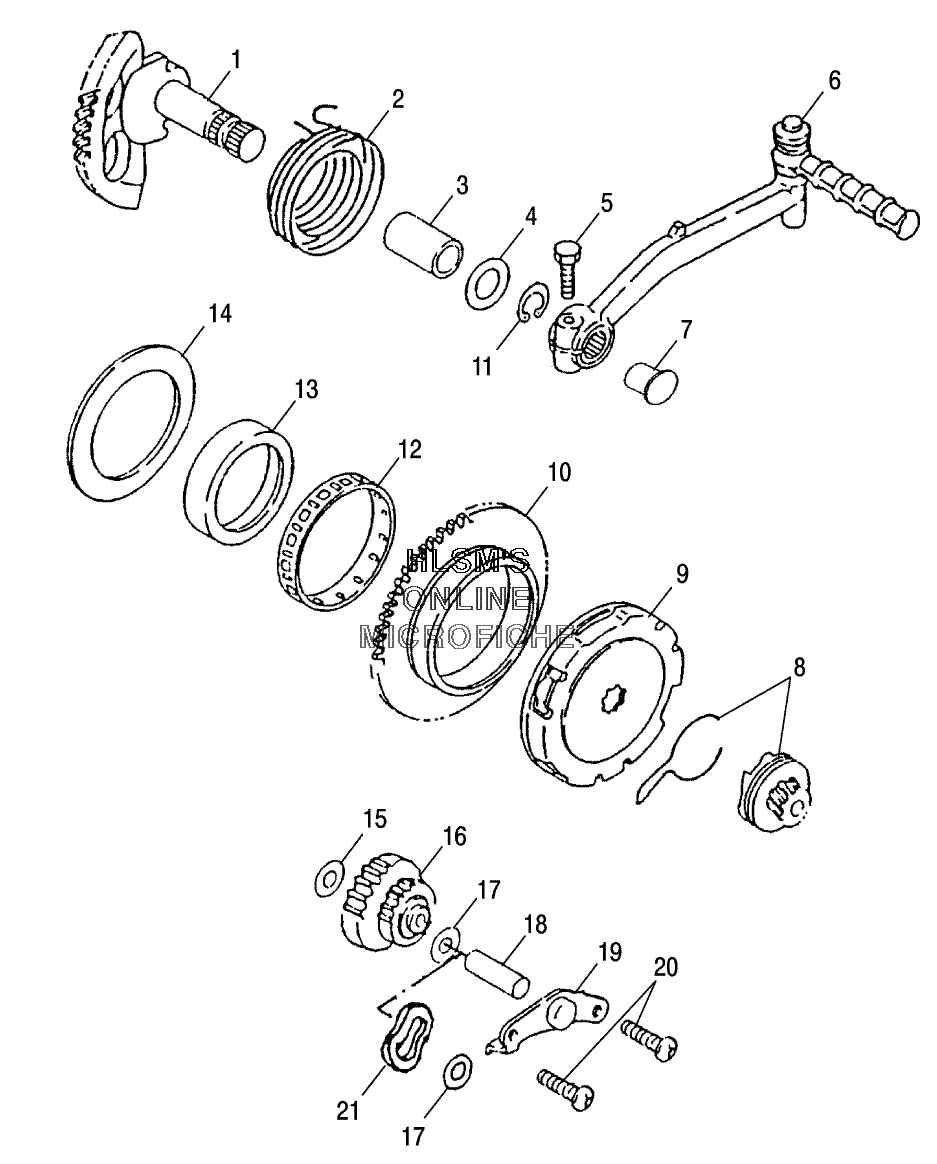

STARTER - RECOIL для Polaris PREDATOR 50 (A05KA05CA) - 2005 года выпуска
-
№АртикулНазвание
-
10450183 SHAFT KICK ASSYSHAFT KICK ASSY
-
20450184 SPRING REST STARTER SHAFTSPRING REST STARTER SHAFT
-
30450185 BUSHINGBUSHING
-
40450186 WASHERWASHER
-
50450189 BOLT HEXAGONBOLT HEXAGON
-
60451744 CRANK KICK ASSYCRANK KICK ASSY
-
70451746 CAP SHAFT KICK STARTERCAP SHAFT KICK STARTER
-
80451745 KICK PINION ASSYKICK PINION ASSY
-
90450175 SET CLUTCH STARTER ELECTRICSET CLUTCH STARTER ELECTRIC
-
100450171 WHEEL STARTERWHEEL STARTER
-
110450187 CIRCLIP EXTERNALCIRCLIP EXTERNAL
-
120450172 BEARING NEEDLEBEARING NEEDLE
-
130450173 BOSS GEARBOSS GEAR
-
140450174 WASHERWASHER
-
150450192 WASHERWASHER
-
160450177 GEAR IDLE ASSYGEAR IDLE ASSY
-
170450180 WASHERWASHER
-
180450682 PIN SHAFTPIN SHAFT
-
190450181 PLATE IDLE GEARPLATE IDLE GEAR
-
200450805 BOLT HEXAGON SOCKETBOLT HEXAGON SOCKET
-
210450193 WASHER, WAVEWASHER, WAVE
Все узлы модели:
- AIR BOX ASSY.
- AXLE - REAR
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY.
- CARBURETOR
- CHAIN / CHAIN GUARD
- CRANKCASE
- CRANKSHAFT W/ CYLINDER
- CYLINDER HEAD
- DECALS
- DRIVESHAFT - FRONT
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - REAR W/ SEAT
- FLY WHEEL COVER
- FRAME
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- MOUNTING - ENGINE
- OIL PUMP
- OIL TANK / FUEL TANK
- PULLEY - DRIVE
- • STARTER - RECOIL
- STARTING MOTOR /W GENERATOR
- STEERING POST
- SUSPENSION
- SUSPENSION - SWING ARM W/ FOOTREST
- WHEEL - FRONT
- WHEEL - REAR
