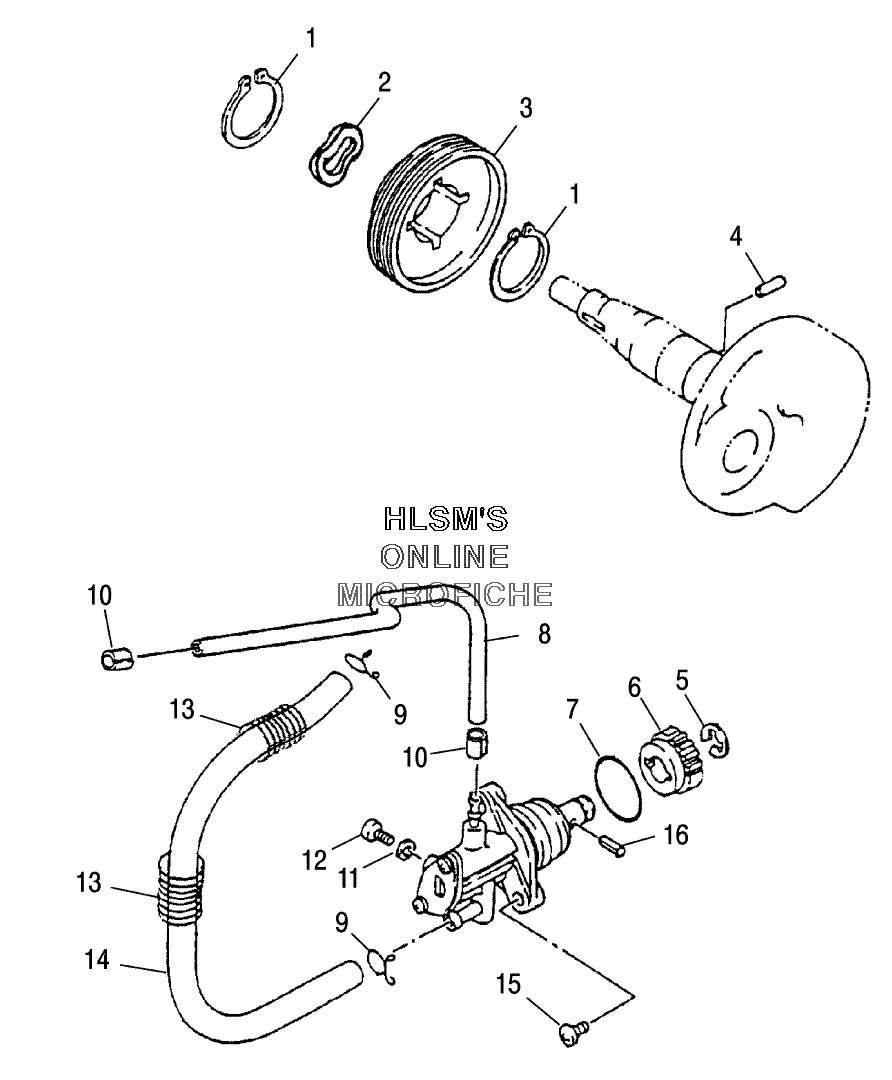

OIL PUMP для Polaris PREDATOR 50 (A05KA05CA) - 2005 года выпуска
-
№АртикулНазвание
-
10450060 CIRCLIP EXTERNALCIRCLIP EXTERNAL
-
20450655 WASHER WAVEWASHER WAVE
-
30450058 GEAR DRIVE OIL PUMPGEAR DRIVE OIL PUMP
-
40450059 PIN DOWELPIN DOWEL
-
50450052 CIRCLIP EXTERNALCIRCLIP EXTERNAL
-
60451725 GEAR OIL PUMPGEAR OIL PUMP
-
70450047 O-RINGO-RING
-
80450055 TUBE OILTUBE OIL
-
90450054 CLIPCLIP
-
100450056 CLIPCLIP
-
110450046 WASHERWASHER
-
120451723 BOLT PHILLIPS PANBOLT PHILLIPS PAN
-
130451728 SPRING PIPE PROTECTIVESPRING PIPE PROTECTIVE
-
140450363-440 FUEL LINEFUEL LINE
-
150450977 BOLT HEXAGONBOLT HEXAGON
-
160451726 PIN SHAFTPIN SHAFT
-
160451722 OIL PUMP, ASSY (INCL. 5-14, 16)OIL PUMP, ASSY (INCL. 5-14, 16)
