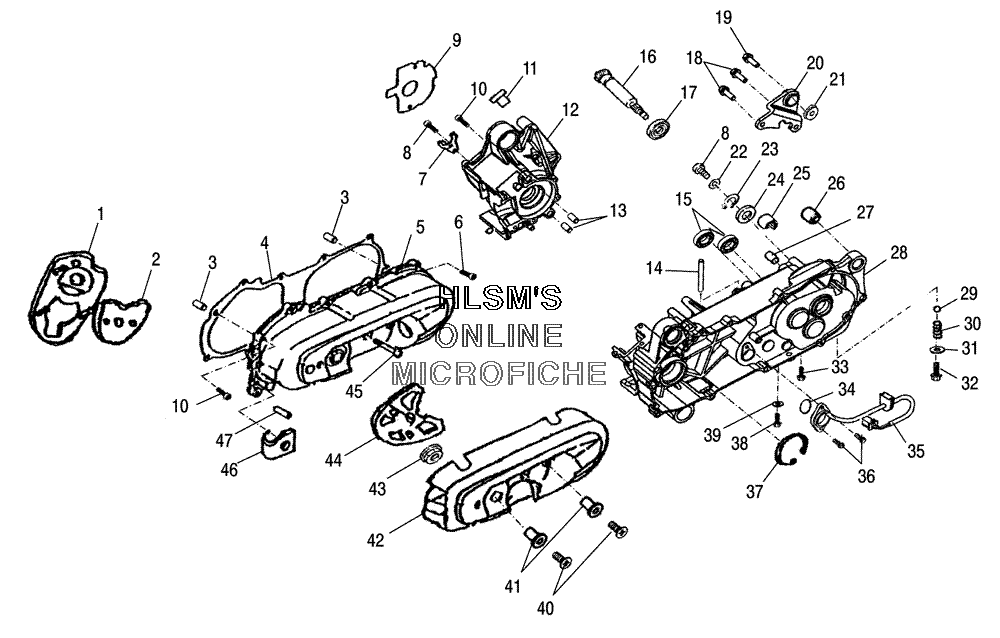

CRANKCASE для Polaris PREDATOR 90 (A05KA09CA) (COSMIC SUNBURST) - 2005 года выпуска
-
№АртикулНазвание
-
10450166 PROTECTOR APROTECTOR A
-
20450164 FILTERFILTER
-
30450142 PIN DOWELPIN DOWEL
-
40450141 GASKET CRANKCASE COVER (LEFT)GASKET CRANKCASE COVER (LEFT)
-
50451671 COVER CLUTCHCOVER CLUTCH
-
60450148 BOLT SOCKET HEXAGONBOLT SOCKET HEXAGON
-
70450157 BRACKET OIL SEALBRACKET OIL SEAL
-
80450158 BOLT SOCKET HEXAGONBOLT SOCKET HEXAGON
-
90450159 GASKET GENERATORGASKET GENERATOR
-
100450138 BOLT SOCKETBOLT SOCKET
-
110450170 PLUG RUBBERPLUG RUBBER
-
120450135 CRANKCASE (RIGHT)CRANKCASE (RIGHT)
-
130450137 PIN DOWELPIN DOWEL
-
140452127 BREATHER CRANKCASE (UPPER)BREATHER CRANKCASE (UPPER)
-
150450254 BEARING BALLBEARING BALL
-
160452130 SHAFT DRIVE PRIMARYSHAFT DRIVE PRIMARY
-
170450199 BEARINGBEARING
-
180450298 BOLT HEXAGONBOLT HEXAGON
-
190450684 BOLT HEXAGON WASHERBOLT HEXAGON WASHER
-
200452131 MOUNT ENGINE (REAR)MOUNT ENGINE (REAR)
-
210450132 BUSHING RUBBERBUSHING RUBBER
-
220450041 WASHER PLAINWASHER PLAIN
-
230450198 CIRCLIP EXTERNALCIRCLIP EXTERNAL
-
240450200 SEAL OILSEAL OIL
-
250452139 BEARING NEEDLEBEARING NEEDLE
-
260451139 BUSHING RUBBERBUSHING RUBBER
-
270452125 BREATHER CRANKCASE (LOWER)BREATHER CRANKCASE (LOWER)
-
280452124 CRANKCASE (LEFT)CRANKCASE (LEFT)
-
290452134 BALL STEELBALL STEEL
-
300452135 SPRING DETENTSPRING DETENT
-
310452136 WASHER FLATWASHER FLAT
-
320452137 BOLT HEXAGONBOLT HEXAGON
-
330452126 BOLT HEXAGON WASHER FACEBOLT HEXAGON WASHER FACE
-
340452129 O-RING GEAR POSITION SENSORO-RING GEAR POSITION SENSOR
-
350452128 SENSOR GEAR POSITIONSENSOR GEAR POSITION
-
360452138 BOLT HEXAGON FLANGEBOLT HEXAGON FLANGE
-
370450162 CIRCLIP INTERNALCIRCLIP INTERNAL
-
380452132 BOLT HEXAGON WASHER FACEBOLT HEXAGON WASHER FACE
-
390452133 WASHER FLATWASHER FLAT
-
400450167 BOLT FLAT HEADBOLT FLAT HEAD
-
410450168 GROMMETGROMMET
-
420451672 GUARD CLUTCH COVERGUARD CLUTCH COVER
-
430450150 NUT FLANGE HEXAGONNUT FLANGE HEXAGON
-
440450152 PROTECTOR BPROTECTOR B
-
450450151 BOLT SOCKET HEXAGONBOLT SOCKET HEXAGON
-
460450160 BRACKET CARBURETOR TUBEBRACKET CARBURETOR TUBE
-
470450147 SHAFTSHAFT
