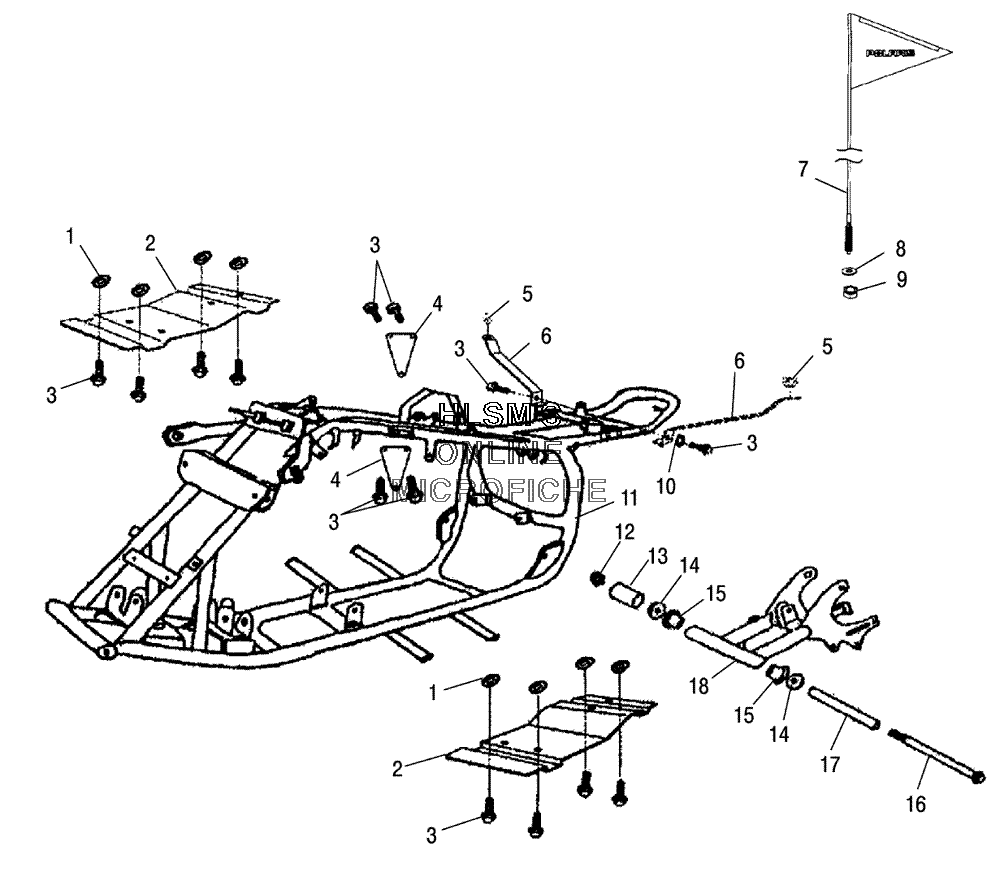

FRAME для Polaris PREDATOR 90 (A05KA09CA) (COSMIC SUNBURST) - 2005 года выпуска
-
№АртикулНазвание
-
10450613 GROMMET FOOTRESTGROMMET FOOTREST
-
20451112 SUPPORT FOOTWELL (LEFT)SUPPORT FOOTWELL (LEFT)
-
20451113 SUPPORT FOOTWELL (RIGHT)SUPPORT FOOTWELL (RIGHT)
-
30452030 BOLT HEXAGON 14 WASHER NYLOCKBOLT HEXAGON 14 WASHER NYLOCK
-
40450299 PLATE ENGINE BRACKETPLATE ENGINE BRACKET
-
50450800 RUBBERRUBBER
-
60451114 BRACKET CAB SUPPORT (REAR/RIGHT/LEFT)BRACKET CAB SUPPORT (REAR/RIGHT/LEFT)
-
70450993 FLAG VISUALFLAG VISUAL
-
80450844 WASHER SPRINGWASHER SPRING
-
90450845 NUT HEXAGONNUT HEXAGON
-
100450180 WASHERWASHER
-
110452178 FRAME MAINFRAME MAIN
-
120450265 NUT LOCKNUT LOCK
-
130450304 SLEEVE RUBBERSLEEVE RUBBER
-
140450303 COVER SWING ARM SEALCOVER SWING ARM SEAL
-
150450302 SEAT GREASE CONTAINSEAT GREASE CONTAIN
-
160450305 BOLT HEXAGONBOLT HEXAGON
-
170450301 TUBE SPACERTUBE SPACER
-
180452179 SWING ARMSWING ARM
Все узлы модели:
- AIR BOX ASSY.
- AXLE - REAR
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY.
- CARBURETOR
- CHAIN / CHAIN GUARD
- CRANKCASE
- CRANKSHAFT W/ CYLINDER
- CYLINDER HEAD
- DECALS
- DRIVESHAFT - FRONT
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FAN COVER
- FENDER - REAR W/ SEAT
- • FRAME
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- MOUNTING - ENGINE
- OIL PUMP
- OIL TANK / FUEL TANK
- PULLEY - DRIVE
- STARTER - RECOIL
- STARTING MOTOR /W GENERATOR
- STEERING POST
- SUSPENSION
- SUSPENSION - SWING ARM W/ FOOTREST
- TRANSMISSION - SHIFTER ASSY.
- WHEEL - FRONT
- WHEEL - REAR
