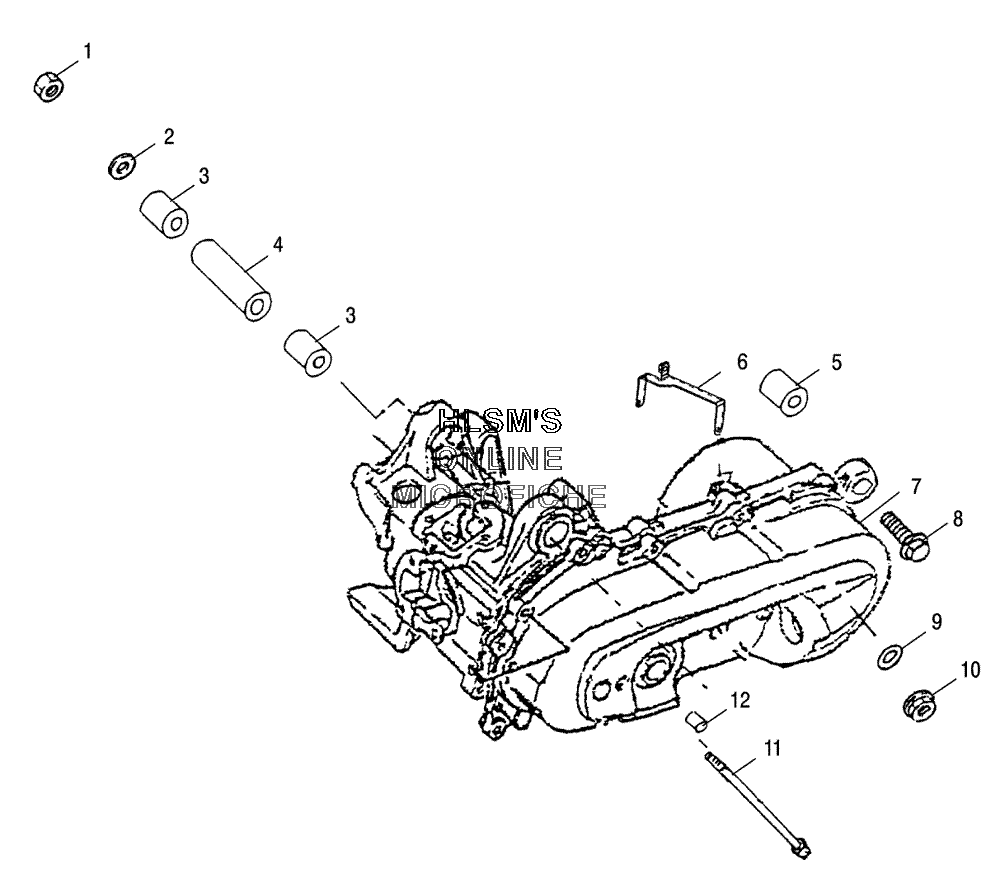

MOUNTING - ENGINE для Polaris PREDATOR 90 (A05KA09CA) (COSMIC SUNBURST) - 2005 года выпуска
-
№АртикулНазвание
-
10450271 NUT HEXAGONNUT HEXAGON
-
20450286 WASHERWASHER
-
30450284 BUSHING RUBBERBUSHING RUBBER
-
40450283 TUBE FIXED ENGINE (FRONT)TUBE FIXED ENGINE (FRONT)
-
50450132 BUSHING RUBBERBUSHING RUBBER
-
60452165 BRACKET OIL TANKBRACKET OIL TANK
-
70451151 ENGINE 90CC ASSYENGINE 90CC ASSY
-
80450684 BOLT HEXAGON WASHERBOLT HEXAGON WASHER
-
90450192 WASHERWASHER
-
100450268 NUT FLANGENUT FLANGE
-
110451107 BOLT HEXAGONBOLT HEXAGON
-
120451108 COLLARCOLLAR
Все узлы модели:
- AIR BOX ASSY.
- AXLE - REAR
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY.
- CARBURETOR
- CHAIN / CHAIN GUARD
- CRANKCASE
- CRANKSHAFT W/ CYLINDER
- CYLINDER HEAD
- DECALS
- DRIVESHAFT - FRONT
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FAN COVER
- FENDER - REAR W/ SEAT
- FRAME
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- • MOUNTING - ENGINE
- OIL PUMP
- OIL TANK / FUEL TANK
- PULLEY - DRIVE
- STARTER - RECOIL
- STARTING MOTOR /W GENERATOR
- STEERING POST
- SUSPENSION
- SUSPENSION - SWING ARM W/ FOOTREST
- TRANSMISSION - SHIFTER ASSY.
- WHEEL - FRONT
- WHEEL - REAR
