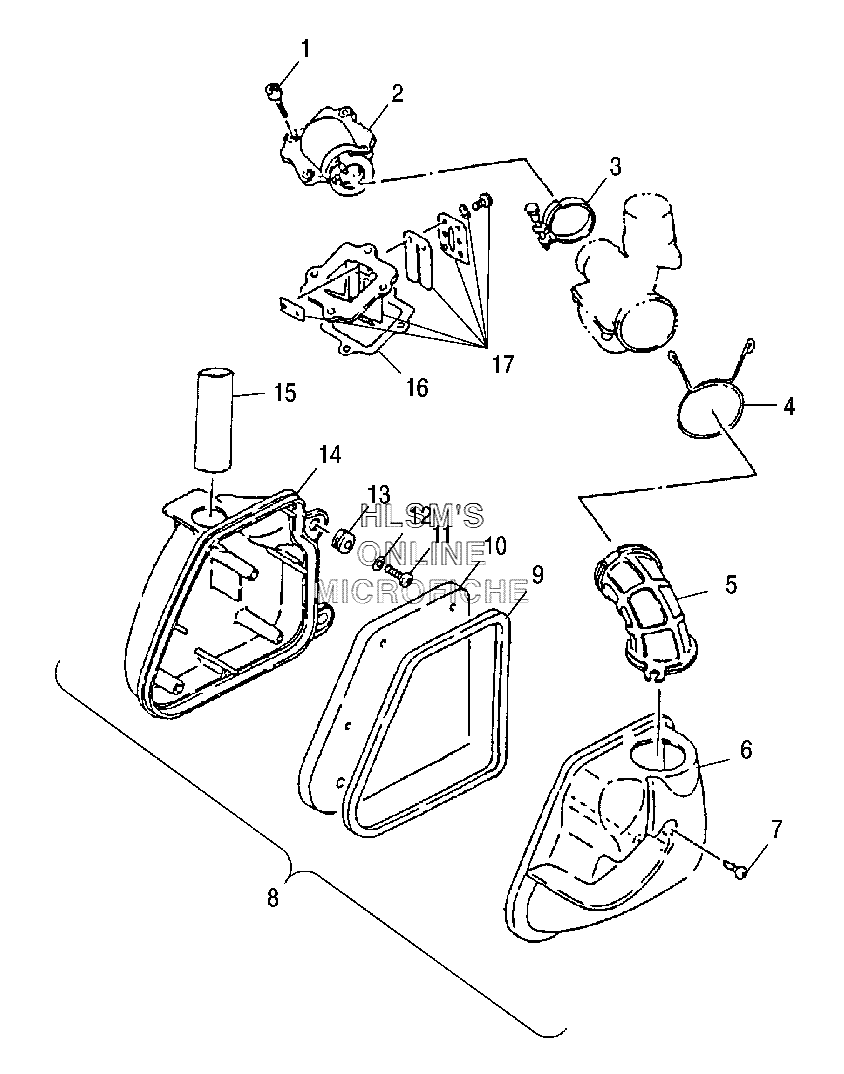

AIR BOX ASSY. для Polaris Predator 90 (A06KA09CA) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
10450066 BOLT HEXAGON, WASHERBOLT HEXAGON, WASHER
-
20450065 MANIFOLD INTAKEMANIFOLD INTAKE
-
30450067 CLAMP HOSE, INTAKE MANIFOLDCLAMP HOSE, INTAKE MANIFOLD
-
40450068 CLIPCLIP
-
50451077 INLET, AIR BOXINLET, AIR BOX
-
60450071 CAP CASE, AIR CLEANERCAP CASE, AIR CLEANER
-
70450076 SCREW TAPPINGSCREW TAPPING
-
80451080 AIR CLEANER ASSY (INCL. 5, 6, 7, 9, 10, 13, 14, 15)AIR CLEANER ASSY (INCL. 5, 6, 7, 9, 10, 13, 14, 15)
-
90451081 SEALSEAL
-
100450073 ELEMENT AIR CLEANERELEMENT AIR CLEANER
-
110450039 BOLT SOCKETBOLT SOCKET
-
120450034 WASHER PLAINWASHER PLAIN
-
130450079 GROMMETGROMMET
-
140450070 CASE AIR CLEANERCASE AIR CLEANER
-
150451138 INLET TUBE, AIR CLEANERINLET TUBE, AIR CLEANER
-
160450064 GASKET, REEDGASKET, REED
-
170450063 REED VALVE ASSYREED VALVE ASSY
