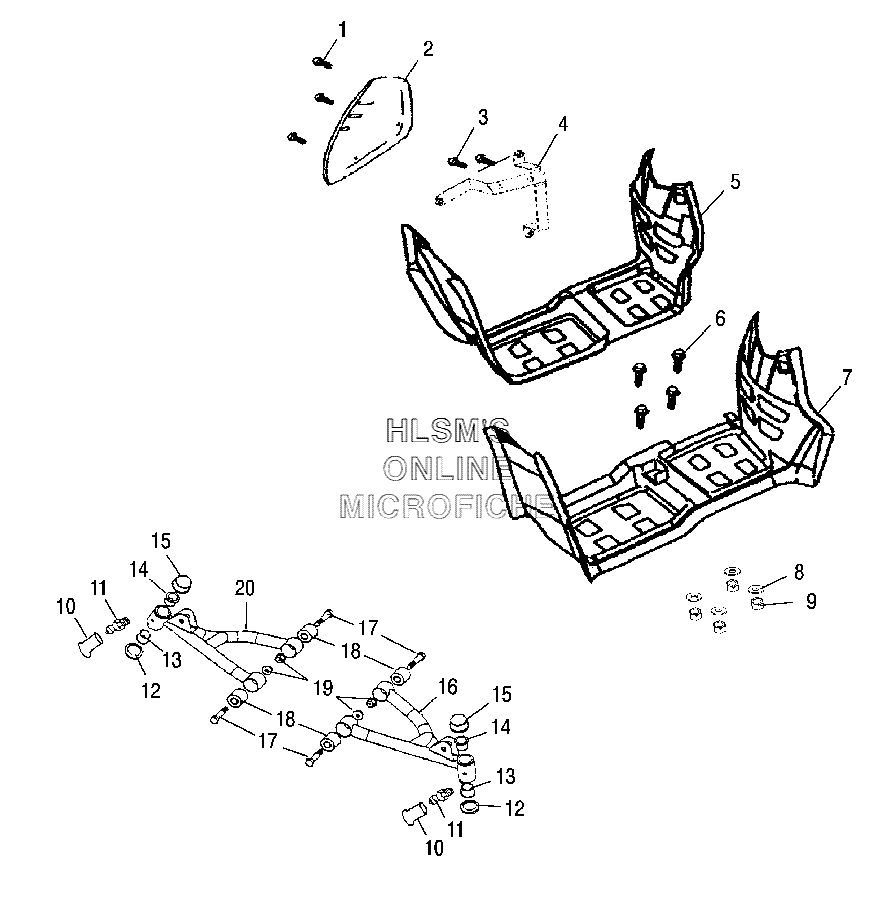

SUSPENSION - SWING ARM W/ FOOTREST для Polaris Predator 90 (A06KA09CA) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
10450701 BOLT HEXAGON WASHERBOLT HEXAGON WASHER
-
20450611 SHIELD, HEAT, SCRAMBLERSHIELD, HEAT, SCRAMBLER
-
30450298 BOLT HEXAGONBOLT HEXAGON
-
40451119 BRACKET HEAT SHIELDBRACKET HEAT SHIELD
-
50453194 FOOTWELL (RIGHT/BLACK)FOOTWELL (RIGHT/BLACK)
-
60452216 BOLT HEXAGONBOLT HEXAGON
-
70453193 FOOTWELL (LEFT/BLACK)FOOTWELL (LEFT/BLACK)
-
80450879 WASHER PLAINWASHER PLAIN
-
90450808 NUT LOCKNUT LOCK
-
100450321 CAP, RUBBERCAP, RUBBER
-
110450320 VALVE, GREASEVALVE, GREASE
-
120450317 RUBBER, DUSTPROOFRUBBER, DUSTPROOF
-
130450314 BUSHING, GREASE RETAINERBUSHING, GREASE RETAINER
-
140450313 BUSHING, GREASE RETAINERBUSHING, GREASE RETAINER
-
150450316 COVER, WATERPROOFCOVER, WATERPROOF
-
160451155 SUSPENSION ARM (LEFT/SILVER)SUSPENSION ARM (LEFT/SILVER)
-
170450820 BOLT WASHER, HEXAGONBOLT WASHER, HEXAGON
-
180450288 BUSHING SUSPENSIONBUSHING SUSPENSION
-
190450249 NUT FLANGENUT FLANGE
-
200451156 SUSPENSION ARM (RIGHT/SILVER)SUSPENSION ARM (RIGHT/SILVER)
