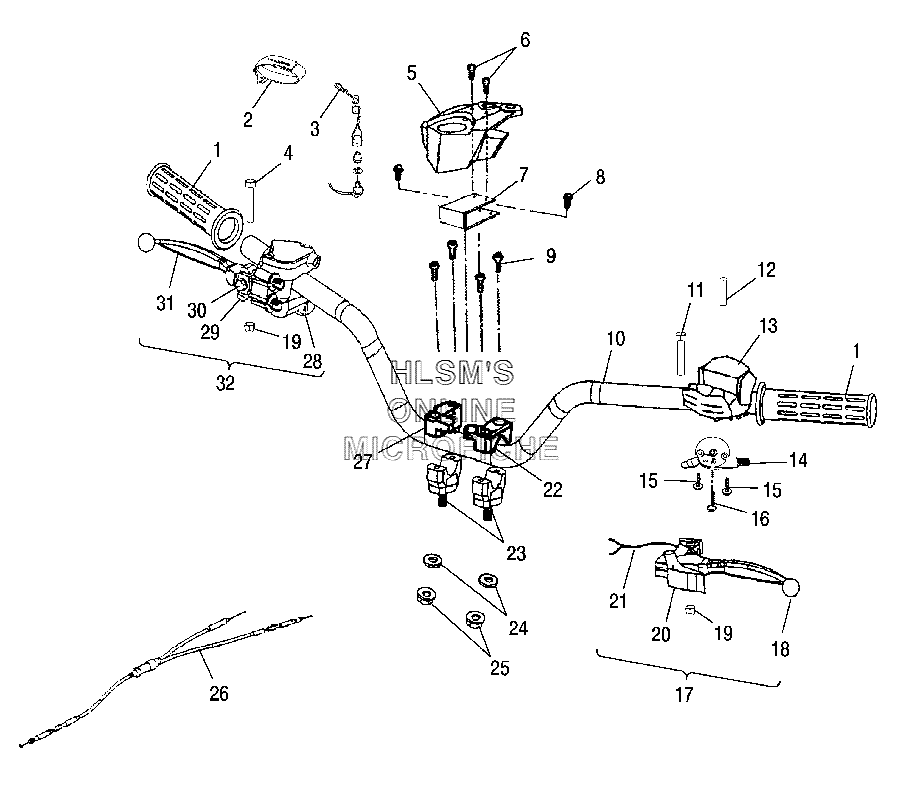

HANDLEBAR для Polaris Predator 90 (A06KA09CA) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
10451097 GRIP HANDGRIP HAND
-
27080891 TETHER, WRIST BANDTETHER, WRIST BAND
-
30450550 SWITCH, SAFETYSWITCH, SAFETY
-
40450806 BOLT BRAKE LEVER (RIGHT)BOLT BRAKE LEVER (RIGHT)
-
50452195 COVER HANDLEBARCOVER HANDLEBAR
-
60451137 SCREW PAN HEADSCREW PAN HEAD
-
70451129 BRACKET INSTRUMENT PANELBRACKET INSTRUMENT PANEL
-
80450701 BOLT HEXAGON WASHERBOLT HEXAGON WASHER
-
90450148 BOLT SOCKET, HEXAGONBOLT SOCKET, HEXAGON
-
100451161-067 HANDLEBARHANDLEBAR
-
110450807 BOLT BRAKE LEVER (LEFT)BOLT BRAKE LEVER (LEFT)
-
120452203 HOSE BREATHERHOSE BREATHER
-
130453359 SWITCH ASSY (LEFT)SWITCH ASSY (LEFT)
-
140451037 CHOKE, MANUAL ASSY (INCL. 15, 16)CHOKE, MANUAL ASSY (INCL. 15, 16)
-
150451148 BOLTBOLT
-
160451149 BOLTBOLT
-
170450463 LEVER ASSY (LEFT) (INCL. 18 21)LEVER ASSY (LEFT) (INCL. 18 21)
-
180450693 LEVER, BRAKE (LEFT)LEVER, BRAKE (LEFT)
-
190450808 NUT LOCKNUT LOCK
-
200450692 HAND BRAKE LOCKHAND BRAKE LOCK
-
210451090 HARNESS, SENSOR SWITCHHARNESS, SENSOR SWITCH
-
220450460 CLAMP (LEFT/TOP)CLAMP (LEFT/TOP)
-
230450459 CLAMP SADDLE, HANDLEBARCLAMP SADDLE, HANDLEBAR
-
240450279 WASHERWASHER
-
250450276 NUT LOCKNUT LOCK
-
260450471 CABLE THROTTLECABLE THROTTLE
-
270450461 CLAMP (RIGHT/TOP)CLAMP (RIGHT/TOP)
-
280452202 ARM THROTTLEARM THROTTLE
-
290450994 BRKT BRAKE CABLEBRKT BRAKE CABLE
-
300450309 BOLT HEXAGONBOLT HEXAGON
-
310450694 LEVER, BRAKE (RIGHT)LEVER, BRAKE (RIGHT)
-
320451099 LEVER ASSY (RIGHT) (INCL. 28 31)LEVER ASSY (RIGHT) (INCL. 28 31)
