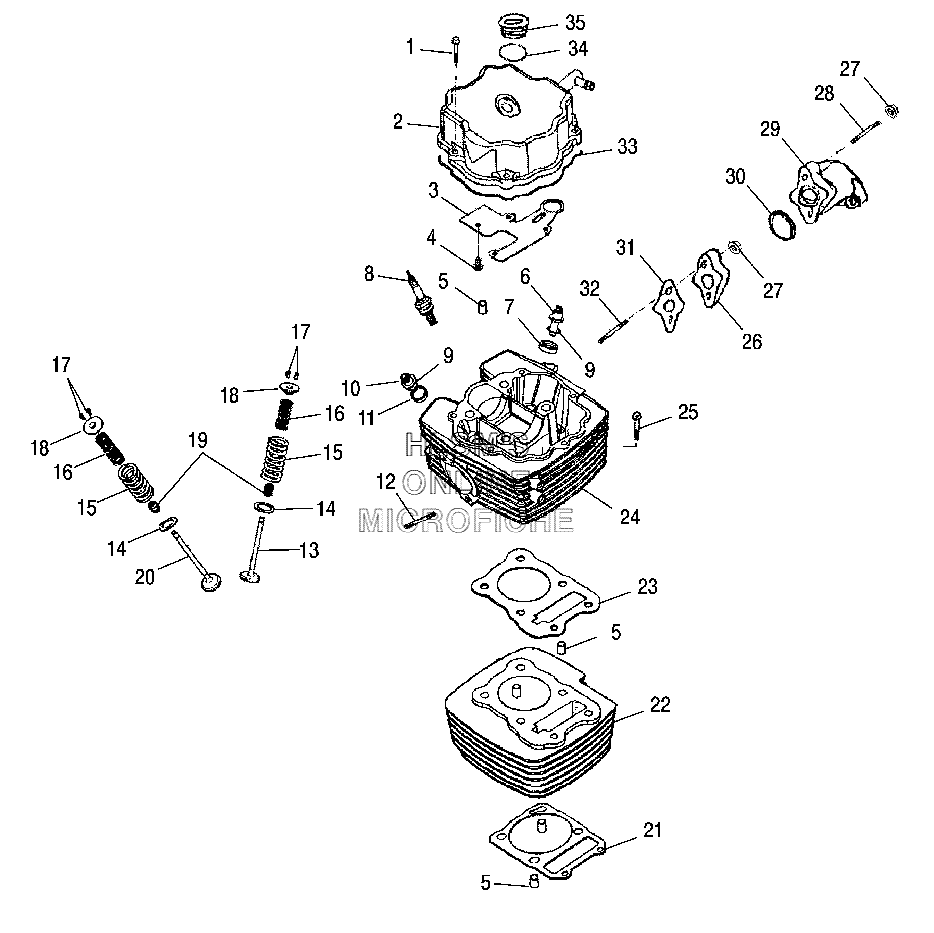

CYLINDER HEAD для Polaris Sawtooth (06SB20AB) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
10452400 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
20452395 COVER ASSY., VALVECOVER ASSY., VALVE
-
30452125 BREATHER, CRANKCASE (LOWER)BREATHER, CRANKCASE (LOWER)
-
40451766 SCREW, TAPPINGSCREW, TAPPING
-
50450142 PIN, DOWELPIN, DOWEL
-
60452380 GUIDE, VALVE INTAKEGUIDE, VALVE INTAKE
-
70452378 SEAT, INTAKESEAT, INTAKE
-
80453034 PLUG, SPARK, CR6HSAPLUG, SPARK, CR6HSA
-
90452382 O-RINGO-RING
-
100452381 GUIDE, VALVE, EXHAUSTGUIDE, VALVE, EXHAUST
-
110452379 SEAT, EXHAUSTSEAT, EXHAUST
-
120452398 BOLT, STUDBOLT, STUD
-
130452383 VALVE, INTAKEVALVE, INTAKE
-
140452388 SEAT, VALVE, SPRING OUTERSEAT, VALVE, SPRING OUTER
-
150452385 SPRING, VALVE, OUTERSPRING, VALVE, OUTER
-
160452386 SPRING, VALVE, INNERSPRING, VALVE, INNER
-
170452389 CLIP, RETAINERCLIP, RETAINER
-
180452387 RETAINER, VALVE, SPRINGRETAINER, VALVE, SPRING
-
190452390 SEAL, VALVESEAL, VALVE
-
200452384 VALVE, EXHAUSTVALVE, EXHAUST
-
210452376 GASKET, CYLINDERGASKET, CYLINDER
-
220452375 CYLINDERCYLINDER
-
230452391 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
240452377 HEAD, CYLINDERHEAD, CYLINDER
-
250452401 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
260452404 INSULATOR, MANIFOLDINSULATOR, MANIFOLD
-
270450880 NUT, FLANGE W/SERRNUT, FLANGE W/SERR
-
280452405 BOLT, STUDBOLT, STUD
-
290452396 MANIFOLDMANIFOLD
-
300452397 O-RINGO-RING
-
310452403 GASKET, MANIFOLDGASKET, MANIFOLD
-
320452399 BOLT, STUDBOLT, STUD
-
330452392 O-RING, HEAD COVERO-RING, HEAD COVER
-
340452394 O-RINGO-RING
-
350452393 CAP, HEAD COVERCAP, HEAD COVER
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER MOUNTING - FRONT
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CRANKCASE
- CRANKCASE COVER - LEFT
- CRANKCASE COVER - RIGHT
- CRANKSHAFT W/ PISTON
- • CYLINDER HEAD
- DECALS
- DRIVE - REAR
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - REAR W/ SEAT
- FRAME
- FUEL TANK
- GENERATOR / STARTING MOTOR
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- STEERING POST
- SUSPENSION
- SUSPENSION - REAR SWING ARM
- SUSPENSION - SWING ARM W/ FOOTREST
- TRANSMISSION - INTERNALS
- WHEEL - FRONT
- WHEEL - REAR
- WHEEL - REAR W/ AXLE
