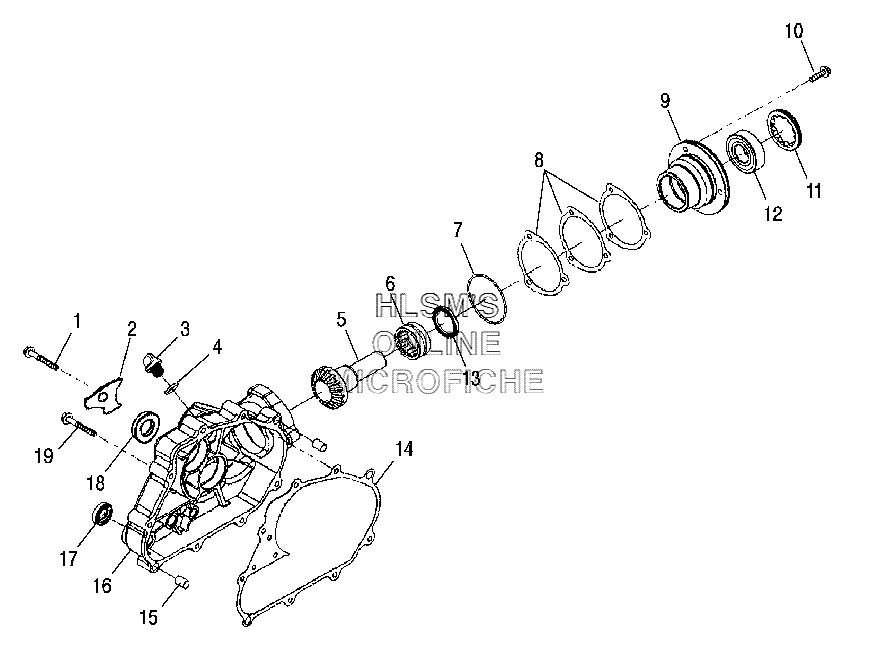

DRIVE - REAR для Polaris Sawtooth (06SB20AB) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
10452330 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
20453245 RETAINER, SIGHT GLASS, TRANSRETAINER, SIGHT GLASS, TRANS
-
30451813 PLUG, OILPLUG, OIL
-
40450154 O-RINGO-RING
-
50452356 GEAR, SHAFT, OUTPUTGEAR, SHAFT, OUTPUT
-
60452358 BEARING, NEEDLEBEARING, NEEDLE
-
70452353 O-RINGO-RING
-
80452352 SHIM SETSHIM SET
-
90452351 COLLAR, GEAR SHAFTCOLLAR, GEAR SHAFT
-
100452350 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
110452355 NUT, LOCKNUT, LOCK
-
120452354 BEARING, BALLBEARING, BALL
-
130452357 SEAL, OILSEAL, OIL
-
140452334 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
150450142 PIN, DOWELPIN, DOWEL
-
160452332 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
170452175 SEAL, OILSEAL, OIL
-
180452333 SEAL AND SIGHT GLASSSEAL AND SIGHT GLASS
-
190452343 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
