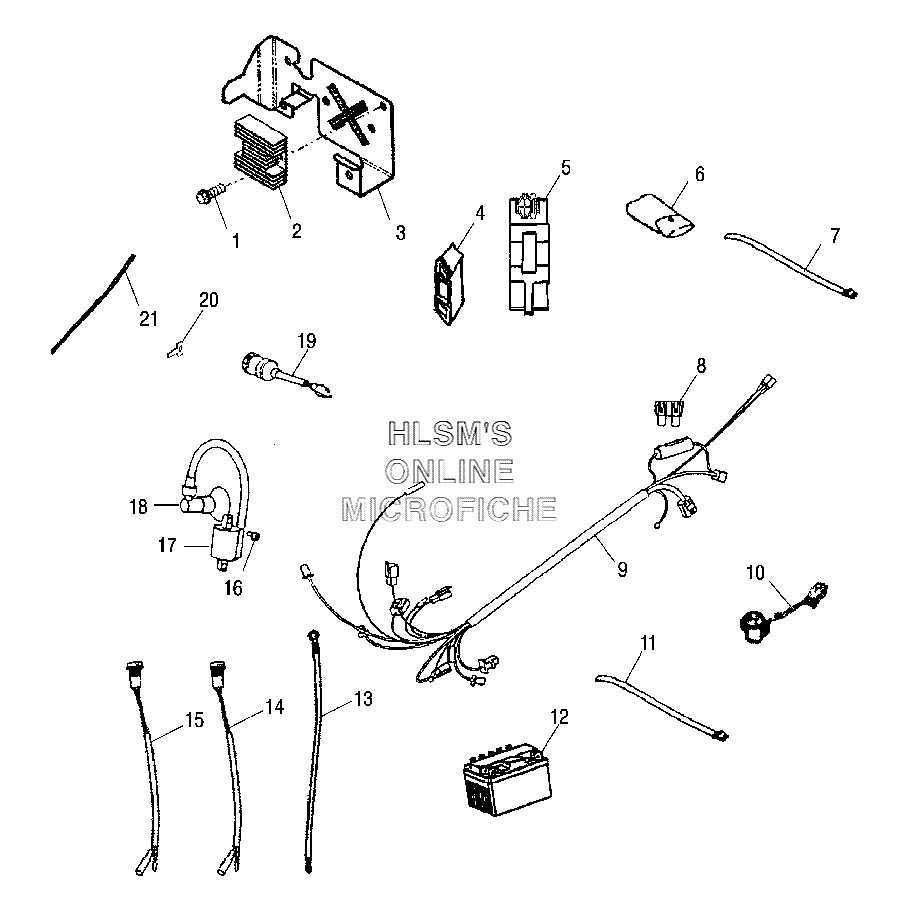

ELECTRICAL COMPONENTS для Polaris Sawtooth (06SB20AB) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
10450701 BOLT, HEX WASHERBOLT, HEX WASHER
-
20453025 RECTIFIER/REGULATORRECTIFIER/REGULATOR
-
30452764 BRACKET, ELECTRICBRACKET, ELECTRIC
-
40452759 PAD, RUBBERPAD, RUBBER
-
50453100 CDI (INCL. 4)CDI (INCL. 4)
-
60452762 POUCH, TOOL, PHOENIXPOUCH, TOOL, PHOENIX
-
70450742 STRAPSTRAP
-
80452744 FUSE, HARNESS, MAIN, PHOENIXFUSE, HARNESS, MAIN, PHOENIX
-
90453234 MAIN WIRE HARNESS ASSY.MAIN WIRE HARNESS ASSY.
-
100452761 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
110450721 STRAPSTRAP
-
120452746 BATTERY YUASA (YTX12)BATTERY YUASA (YTX12)
-
130452767 CABLE ASSY., BATTERYCABLE ASSY., BATTERY
-
140452766 INDICATOR, REVERSEINDICATOR, REVERSE
-
150452765 INDICATOR, NEUTRALINDICATOR, NEUTRAL
-
160452763 BOLT, HEX, SEMSBOLT, HEX, SEMS
-
170452309 COIL ASSY., IGNITIONCOIL ASSY., IGNITION
-
180453364 CAP, SPARK PLUG, PHOENIXCAP, SPARK PLUG, PHOENIX
-
190452748 SWITCH, IGNITIONSWITCH, IGNITION
-
200453372 KEYKEY
-
210453144 CABLE, ETC CONNECTINGCABLE, ETC CONNECTING
-
200453143 KEY, BLANK, 2006KEY, BLANK, 2006
