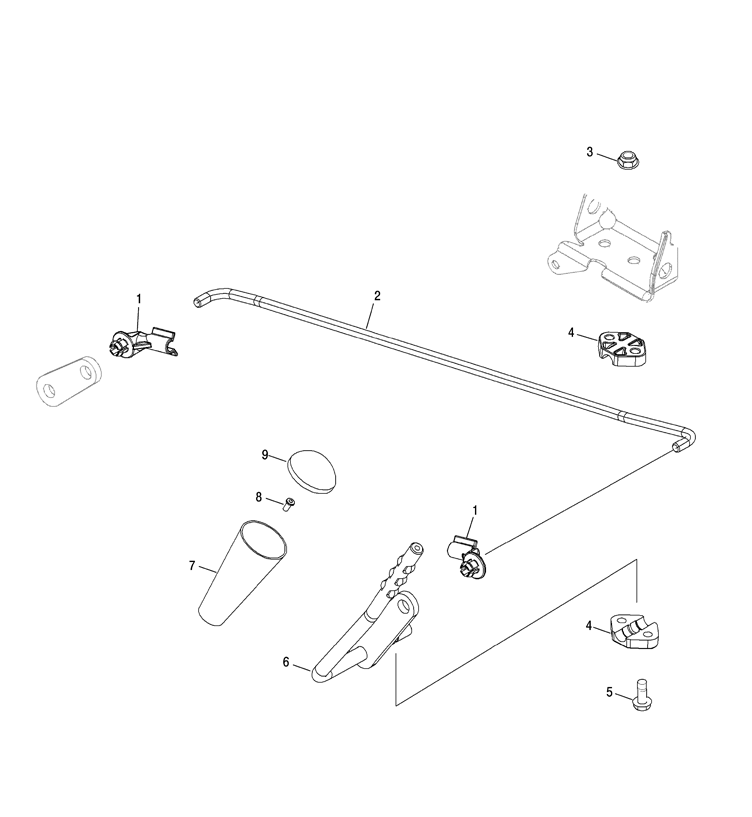

GEAR SELECTOR для Polaris HAWKEYE 4X4 INTL (A07LH27FB) - 2007 года выпуска
-
№АртикулНазвание
-
15436722 BUSHING-SNAP LINKAGE,NYLATRONBUSHING-SNAP LINKAGE,NYLATRON
-
25334711 ROD-SHIFTERROD-SHIFTER
-
37547317 NUT-M8X1.25,HXFLG,NYLON INSNUT-M8X1.25,HXFLG,NYLON INS
-
45435042 MOUNT-GEAR SELECTORMOUNT-GEAR SELECTOR
-
57518469 BOLT-M8X1.25X35,HX HD FLGBOLT-M8X1.25X35,HX HD FLG
-
61015047-067 WELD-SHIFT HANDLE, BLACKWELD-SHIFT HANDLE, BLACK
-
73233198 KNOB ASM,HI/REV.KNOB ASM,HI/REV.
-
87512024 SCREWSCREW
-
95436647 CAPCAP
