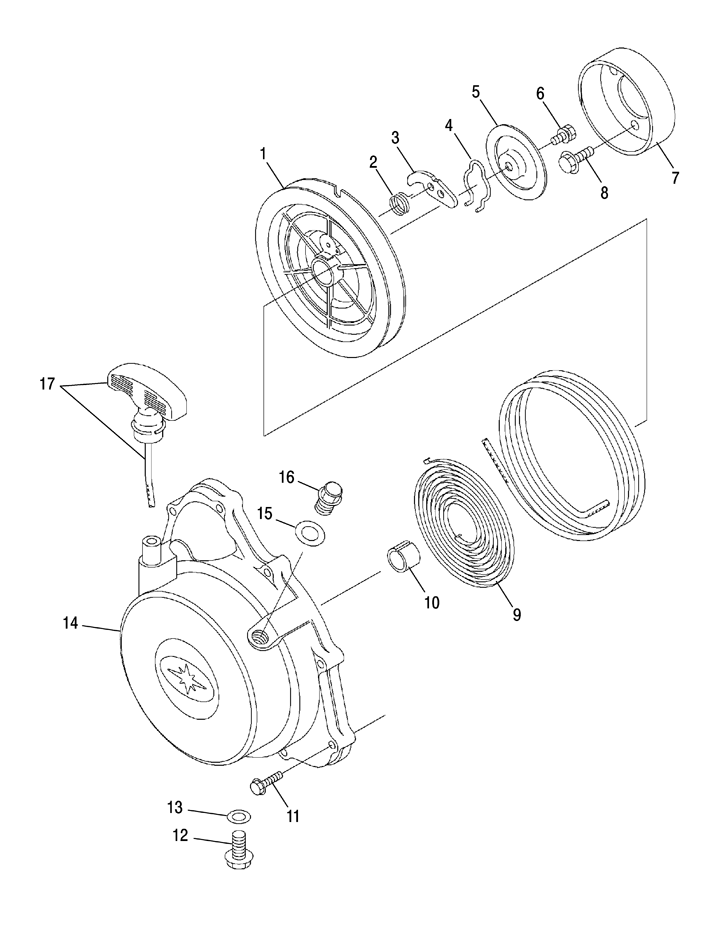

STARTER - RECOIL для Polaris HAWKEYE 4X4 INTL (A07LH27FB) - 2007 года выпуска
-
№АртикулНазвание
-
13084822 ASM.,REELASM.,REEL
-
23083463 SPRING, RETURNSPRING, RETURN
-
33083378 RATCHETRATCHET
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53089842 PLATE-FRICTIONPLATE-FRICTION
-
63089843 ASM-BOLT/WASHERASM-BOLT/WASHER
-
73089976 PULLEY-STARTERPULLEY-STARTER
-
83089987 BOLTBOLT
-
93083185 SPRING, SPIRALSPRING, SPIRAL
-
103084750 BUSHINGBUSHING
-
113089984 COULD NOT FINDCOULD NOT FIND
-
123089845 BOLT-FLANGEBOLT-FLANGE
-
137555998 WASHER,FLATWASHER,FLAT
-
143089840 ASM-RECOIL STARTER (INCL. 1-7,9,10,17)ASM-RECOIL STARTER (INCL. 1-7,9,10,17)
-
143089841 CASE-STARTER COMPLETECASE-STARTER COMPLETE
-
153082956 GASKETGASKET
-
163086749 PLUGPLUG
-
173085083 ROPE ASMROPE ASM
