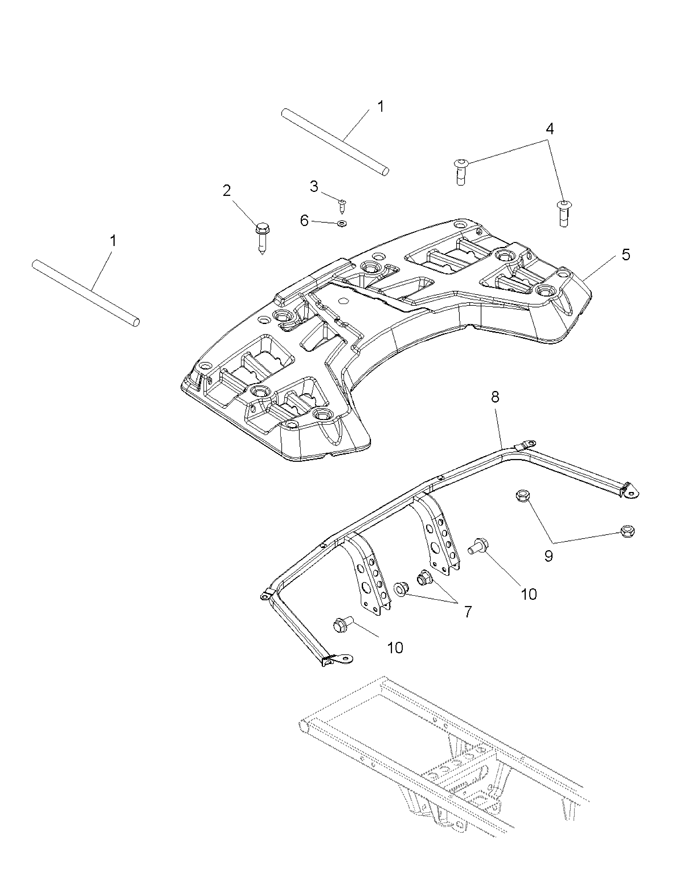

RACK - REAR для Polaris HAWKEYE 4X4 INTL (A07LH27FB) - 2007 года выпуска
-
№АртикулНазвание
-
15521744 ROD-CARGO,RACKROD-CARGO,RACK
-
27518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BLSCR-M6X1.0X20,HXHD,FLG,TDFM,BL
-
37518238 SCR-10X5/8-HI/LO,PN-T25,TRX-MSCR-10X5/8-HI/LO,PN-T25,TRX-M
-
47518533 BOLT-M6X1.0X20,HXHD,FLG, BLACKBOLT-M6X1.0X20,HXHD,FLG, BLACK
-
52633189-070 ASM-RACK,REAR, BLACK (INCL. WARNING DECALS AND REFLECTORS)ASM-RACK,REAR, BLACK (INCL. WARNING DECALS AND REFLECTORS)
-
67556034 WASHERWASHER
-
77547317 NUT-M8X1.25,HXFLG,NYLON INSNUT-M8X1.25,HXFLG,NYLON INS
-
81015408-067 WELD-SUPPORT,REAR RACK, BLACKWELD-SUPPORT,REAR RACK, BLACK
-
97547274 NUT-M6 FLANGE,NYLOKNUT-M6 FLANGE,NYLOK
-
107516732 SCREWSCREW
