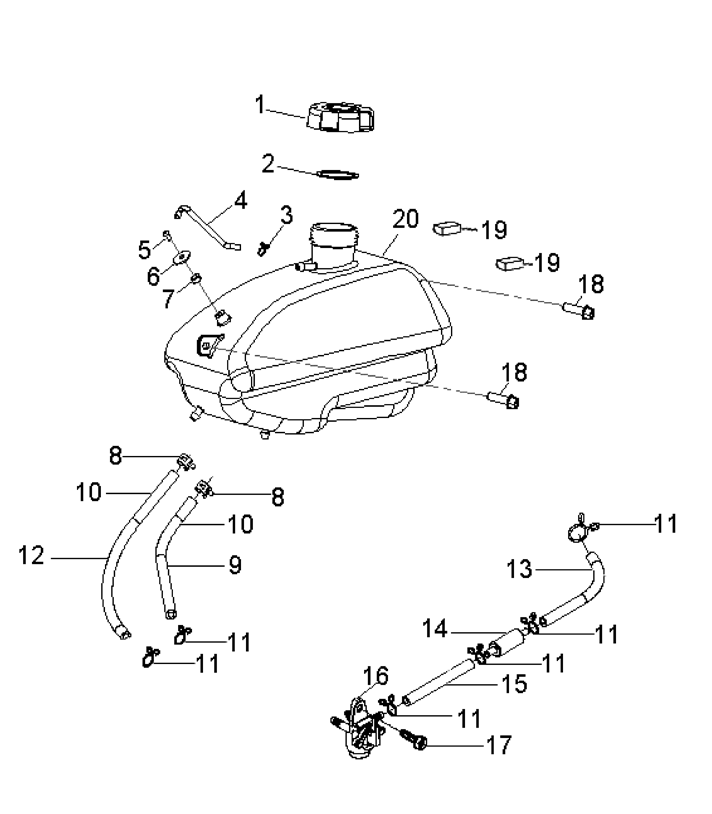

FUEL TANK для Polaris OUTLAW 90 (A07KA09AA) (SILVER METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
10453928 CAP, FUEL ASSY (INCLUDES 2)CAP, FUEL ASSY (INCLUDES 2)
-
20453692 GASKET FUEL CAP, OUTLAWGASKET FUEL CAP, OUTLAW
-
30453944 CLAMPCLAMP
-
40453697 HOSE VENT, OUTLAWHOSE VENT, OUTLAW
-
50453699 SCREWSCREW
-
60452913 WASHER PLAIN, 5X25X2WASHER PLAIN, 5X25X2
-
70453698 SPACERSPACER
-
80453693 CLAMP HOSECLAMP HOSE
-
90454029 HOSE FUEL, FORMED, 165MMHOSE FUEL, FORMED, 165MM
-
100453946 SLEEVE HOSE, FUELSLEEVE HOSE, FUEL
-
110450054 CLIPCLIP
-
120453945 HOSE FORMEDHOSE FORMED
-
130450363-440 LINE FUELLINE FUEL
-
142520462 FILTER FUEL 65 MICRONFILTER FUEL 65 MICRON
-
150450363-440 LINE FUELLINE FUEL
-
160450366 MANUAL FUEL CUP ASSYMANUAL FUEL CUP ASSY
-
170450701 BOLT HEX WASHERBOLT HEX WASHER
-
180452215 BOLT HEXBOLT HEX
-
190453696 ADHESIVE ELE WIREADHESIVE ELE WIRE
-
200453328 TANK FUELTANK FUEL
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY.
- CAM CHAIN
- CARBURETOR
- CHAIN / CHAIN GUARD
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CRANKCASE
- CRANKCASE COVER - LEFT
- CRANKCASE COVER - RIGHT
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - REAR W/ SEAT
- FRAME
- • FUEL TANK
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- KICK START
- KICK START 2
- MANUAL - OWNER'S
- OIL PUMP
- STARTING MOTOR /W GENERATOR
- STEERING POST
- SUSPENSION
- SUSPENSION - SWING ARM W/ FOOTREST
- TRANSMISSION - INTERNALS
- TRANSMISSION - SHIFTER ASSY.
- WHEEL - FRONT
- WHEEL - REAR
- WHEEL - REAR W/ AXLE
