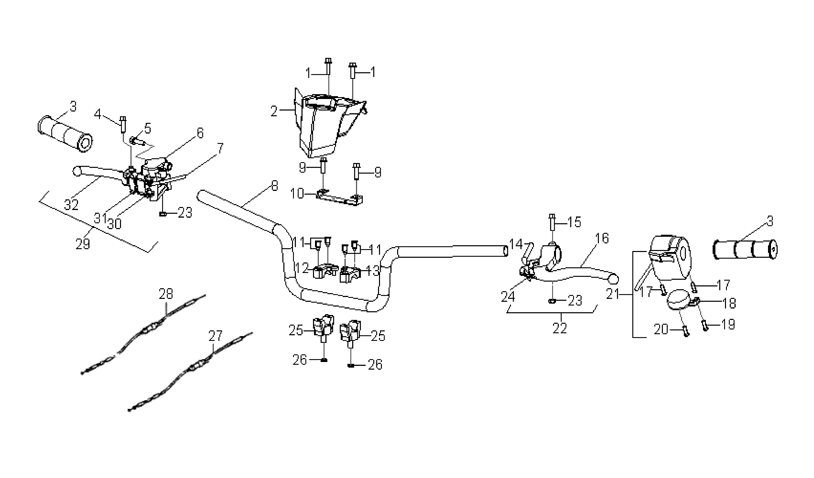

HANDLEBAR для Polaris OUTLAW 90 (A07KA09AA) (SILVER METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
10450667 BOLT, PHILLIPSBOLT, PHILLIPS
-
20453329-070 POD UPPER, BLACKPOD UPPER, BLACK
-
30453370 GRIP HANDLEBAR, PHOENIX (NBR)GRIP HANDLEBAR, PHOENIX (NBR)
-
40450806 BOLT BRAKE LVR, RIGHT HANDBOLT BRAKE LVR, RIGHT HAND
-
50451788 BOLT PHILLIPS, 5MMBOLT PHILLIPS, 5MM
-
60453721 LEVER TROTTLE, RIGHT HANDLEVER TROTTLE, RIGHT HAND
-
70453736 WIRE SWITCH, BRAKEWIRE SWITCH, BRAKE
-
80453737-067 HANDLEBAR OUTLAW, BLACKHANDLEBAR OUTLAW, BLACK
-
90450701 BOLT HEX WASHERBOLT HEX WASHER
-
100453565 BRKT POD, BLACKBRKT POD, BLACK
-
110450148 BOLT SOCKET, HEXBOLT SOCKET, HEX
-
120450461 CLAMP, RIGHT HAND, TOPCLAMP, RIGHT HAND, TOP
-
130450460 CLAMP, LEFT HAND, TOPCLAMP, LEFT HAND, TOP
-
140453815 SENSOR BRAKESENSOR BRAKE
-
150450807 BOLT BRAKE LVR, LEFT HANDBOLT BRAKE LVR, LEFT HAND
-
160450693 LEVER, BRAKE, LEFT HANDLEVER, BRAKE, LEFT HAND
-
170451148 BOLTBOLT
-
180453566 ASM CHOKE, MANUALASM CHOKE, MANUAL
-
190453708 BOLTBOLT
-
200451149 BOLTBOLT
-
210453816 SWITCH, LEFT HAND ASSY (INCLUDES 17 TO 20)SWITCH, LEFT HAND ASSY (INCLUDES 17 TO 20)
-
220454043 LEVER, BRAKE, LEFT HAND ASSY (INCLUDES 14 TO 16, 22 TO 24)LEVER, BRAKE, LEFT HAND ASSY (INCLUDES 14 TO 16, 22 TO 24)
-
230450808 NUT LOCKNUT LOCK
-
240454042 LOCK-BRAKE,PARKLOCK-BRAKE,PARK
-
250450459 CLAMP SADDLE, HANDLE BARCLAMP SADDLE, HANDLE BAR
-
260450276 NUT LOCKNUT LOCK
-
270453499 CABLE CHOKECABLE CHOKE
-
280453500 CABLE THROTTLECABLE THROTTLE
-
290453740 LEVER ASSY, LEFT HANDLEVER ASSY, LEFT HAND
-
300452202 THROTTLE ASSYTHROTTLE ASSY
-
310450994 BRKT BRAKE CABLEBRKT BRAKE CABLE
-
320450694 LEVER, BRAKE, RIGHT HANDLEVER, BRAKE, RIGHT HAND
