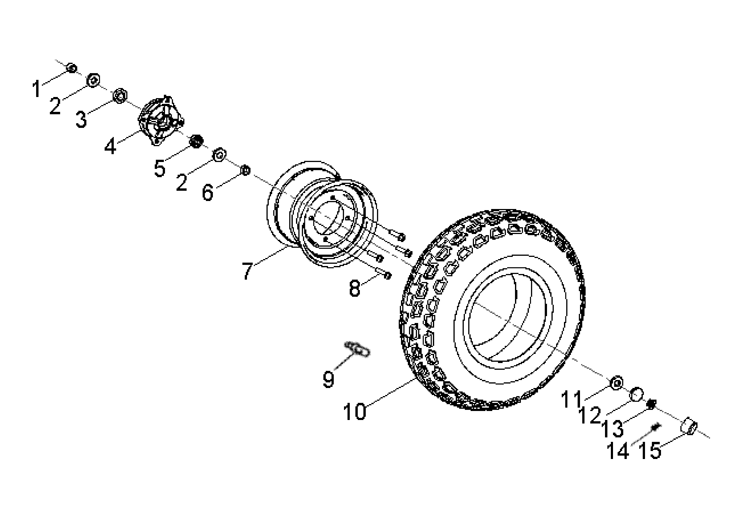

WHEEL - FRONT для Polaris OUTLAW 90 (A07KA09AA) (SILVER METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
10450390 SPACER, INNERSPACER, INNER
-
20450389 SEAL OILSEAL OIL
-
30450393 BEARINGBEARING
-
40450885-486 DRUM-BRAKE,UN, SLVRDRUM-BRAKE,UN, SLVR
-
50450392 BEARINGBEARING
-
60450391 SPACER, OUTERSPACER, OUTER
-
70453498-385 RIM FRONT, SILVERRIM FRONT, SILVER
-
80450124 BOLT HEX WSHR FACEBOLT HEX WSHR FACE
-
90450401 VALVE, RIMVALVE, RIM
-
100450870 TIRE, 19X7 8TIRE, 19X7 8
-
110453511 WASHER WHEEL ASM, FRONTWASHER WHEEL ASM, FRONT
-
120453514 WASHER WHEELWASHER WHEEL
-
130450394 NUT LOCKNUT LOCK
-
140450395 PIN COTTERPIN COTTER
-
150450829 CAP RUBBERCAP RUBBER
