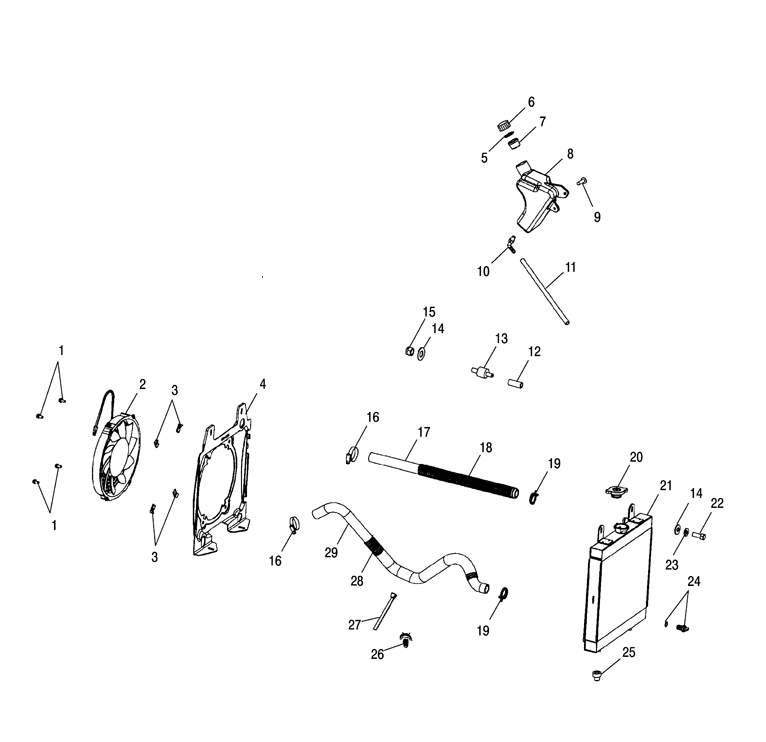

COOLING SYSTEM для Polaris SCRAMBLER 500 4X4 (A07BG50AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
17517656 SCREWSCREW
-
22410430 FAN AND MOTOR, SPAL ASSYFAN AND MOTOR, SPAL ASSY
-
37670111 CLIP, UCLIP, U
-
45434043 SHROUD FANSHROUD FAN
-
55810279 GASKETGASKET
-
65430743 CAP, OVERFLOWCAP, OVERFLOW
-
75433774 CAP, PLUG9X(GRN), FLEX TEMPCAP, PLUG9X(GRN), FLEX TEMP
-
85433410 TANK, SURGETANK, SURGE
-
97512084 SCREWSCREW
-
107052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
118450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
125020937 SPACERSPACER
-
133110032 MOUNT, RUBBERMOUNT, RUBBER
-
147558301 WASHER, FLATWASHER, FLAT
-
157542122 NUT NYLOKNUT NYLOK
-
167080614 CLAMP, HOSECLAMP, HOSE
-
175411985 HOSE UPPER ENGINEHOSE UPPER ENGINE
-
185521511 GUARD HOSE, 12''GUARD HOSE, 12''
-
197080826 CLAMP ROTO CLIPCLAMP ROTO CLIP
-
201240093 CAP PRESSURE, 13 LBS.CAP PRESSURE, 13 LBS.
-
211240177 RADIATORRADIATOR
-
227512240 BOLTBOLT
-
237552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
247052296 VALVE PLASTIC DRAINVALVE PLASTIC DRAIN
-
255410584 BUSHING MOUNT, LOWER RADIATORBUSHING MOUNT, LOWER RADIATOR
-
267080965 MOUNT CABLE TIE, .25MOUNT CABLE TIE, .25
-
277080138 CABLE TIECABLE TIE
-
285521550 PLASTIC, HOSEGUARD 18''PLASTIC, HOSEGUARD 18''
-
295411989 HOSE LOWER ENGINEHOSE LOWER ENGINE
