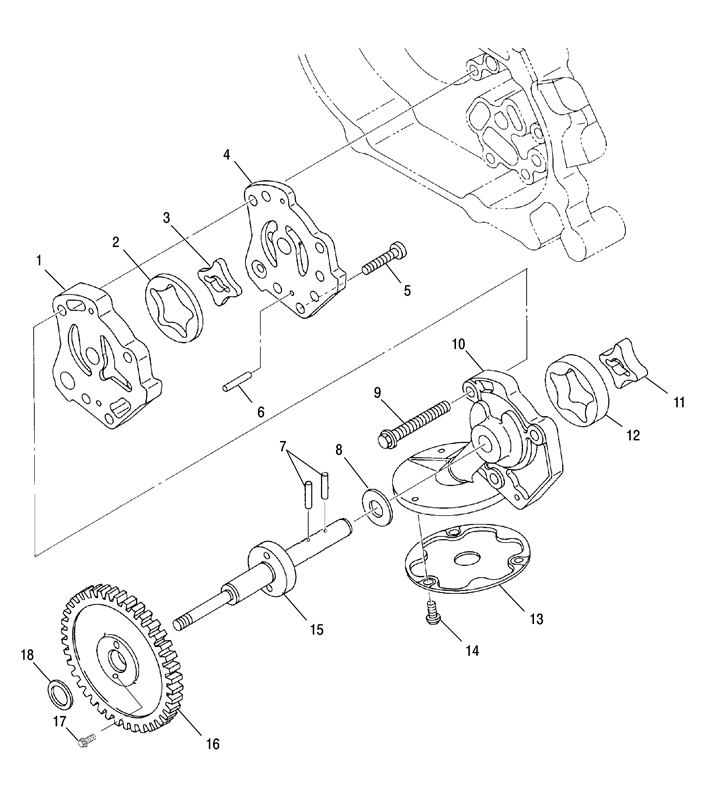

OIL PUMP для Polaris SCRAMBLER 500 4X4 (A07BG50AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
13084946 CASE #2, OIL PUMPCASE #2, OIL PUMP
-
23084949 ROTOR, OUTER, FEEDROTOR, OUTER, FEED
-
33084948 ROTOR, INNER, FEEDROTOR, INNER, FEED
-
43088210 OIL PUMP ASSY (INCLUDED 1 TO 8, 10 TO 15)OIL PUMP ASSY (INCLUDED 1 TO 8, 10 TO 15)
-
43087264 OIL PUMP CASE 1OIL PUMP CASE 1
-
53085535 SCREWSCREW
-
63084955 PIN, DOWELPIN, DOWEL
-
73084954 PIN, DOWELPIN, DOWEL
-
83084953 WASHERWASHER
-
93084962 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
103087265 OIL PUMP CASE 3OIL PUMP CASE 3
-
113084950 ROTOR, INNER, SCAV.ROTOR, INNER, SCAV.
-
123084951 ROTOR, OUTERROTOR, OUTER
-
133084956 STRAINER UNIT, OILSTRAINER UNIT, OIL
-
143084205 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
153085858 SHAFT, PUMPSHAFT, PUMP
-
163089774 GEAR, PUMP 2GEAR, PUMP 2
-
173089505 BOLT FLANGEBOLT FLANGE
-
183084959 SPACER, 0.8SPACER, 0.8
-
183084960 SPACER, 1.0SPACER, 1.0
-
183084961 SPACER, 1.2SPACER, 1.2
