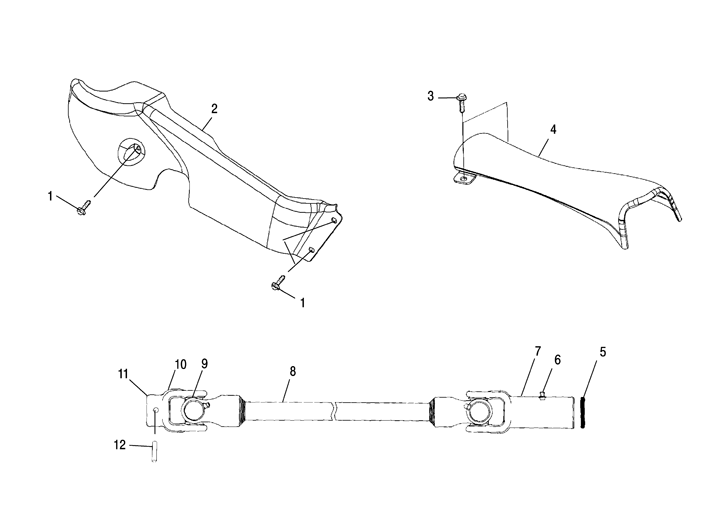

DRIVESHAFT - INTERMEDIATE для Polaris SCRAMBLER 500 4X4 (A07BG50AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
17517916 SCREWSCREW
-
25435245 GUARD PROP SHAFT, SIDEGUARD PROP SHAFT, SIDE
-
37517386 SCREWSCREW
-
45433154 GUARD PROP SHAFT, FRONTGUARD PROP SHAFT, FRONT
-
55411092 O RINGO RING
-
67080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
73260131 YOKEYOKE
-
81380217 PROPSHAFT, FRONT, NONSERV ASSUPROPSHAFT, FRONT, NONSERV ASSU
-
93260104 CROSS AND BEARING KITCROSS AND BEARING KIT
-
103260133 YOKEYOKE
-
111380217 PROPSHAFT, FRONT, NONSERV ASSY (INCLUDES 7 TO 10)PROPSHAFT, FRONT, NONSERV ASSY (INCLUDES 7 TO 10)
-
127661913 PIN, SPRINGPIN, SPRING
