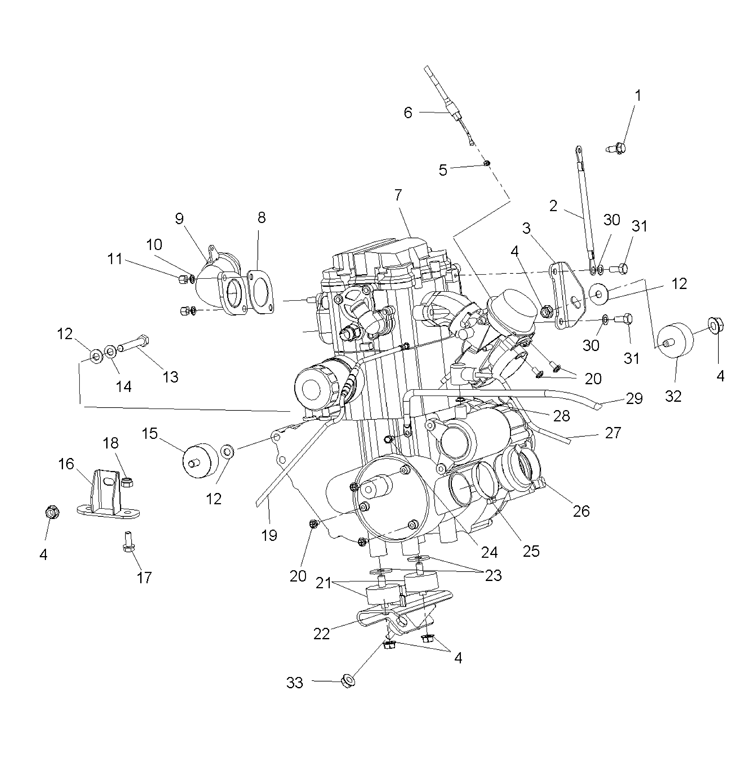

ENGINE - MOUNTING для Polaris SCRAMBLER 500 4X4 (A07BG50AFA) (SILVER) - 2007 года выпуска
-
№АртикулНазвание
-
17517386 SCREWSCREW
-
24010132 CABLE, GND ENGINECABLE, GND ENGINE
-
35242674 BRACKET, ENGINE MOUNT, TOP (BLACK)BRACKET, ENGINE MOUNT, TOP (BLACK)
-
47547108 NUTNUT
-
53084696 GUIDE, CABLEGUIDE, CABLE
-
67081170 CABLE, THROTTLE, 1/4 TURN, 4 STKCABLE, THROTTLE, 1/4 TURN, 4 STK
-
73089962 ENGINE SB, EH500PLE126 (SEE NOTE)ENGINE SB, EH500PLE126 (SEE NOTE)
-
83085075 GASKET ASSY (EXHAUST)GASKET ASSY (EXHAUST)
-
91261391-029 MANIFOLD (BLACK)MANIFOLD (BLACK)
-
103080051 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
113087199 NUTNUT
-
127555823 WASHERWASHER
-
137515417 SCREWSCREW
-
147552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
153110067 MOUNT, MOTORMOUNT, MOTOR
-
161040688-067 MOUNT, FR.ENGINE (BLACK).MOUNT, FR.ENGINE (BLACK).
-
177515398 SCREWSCREW
-
187542324 NUT, NYLOKNUT, NYLOK
-
197081177 CABLE CHOKE, FRICTION, 26''CABLE CHOKE, FRICTION, 26''
-
203084205 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
213110046 MOUNT, RUBBER (FRONT)MOUNT, RUBBER (FRONT)
-
221014993-067 MOUNT, ENGINE, REAR (BLACK)MOUNT, ENGINE, REAR (BLACK)
-
237555815 WASHER, FLATWASHER, FLAT
-
243082038 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
257080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
265412487 BOOT CLUTCH, INTAKEBOOT CLUTCH, INTAKE
-
274010093 CABLE, SOL/STARTERCABLE, SOL/STARTER
-
283083649 NUT, FLANGENUT, FLANGE
-
294010095 CABLE, BATTERY/ENGINE (BLACK)CABLE, BATTERY/ENGINE (BLACK)
-
307552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
317512315 BOLTBOLT
-
323110044 ISOLATOR (3/8-24M/M,60DURO)ISOLATOR (3/8-24M/M,60DURO)
-
337547089 NUT, FLANGENUT, FLANGE
