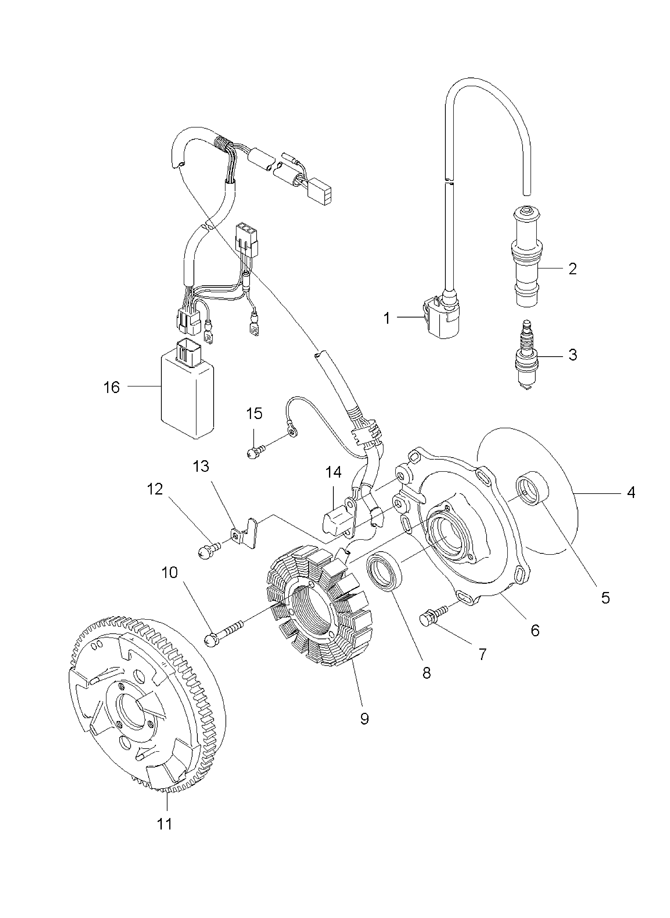

MAGNETO для Polaris SCRAMBLER 500 4X4 (A07BG50AFA) (SILVER) - 2007 года выпуска
-
№АртикулНазвание
-
13089260 IGNITION COIL ASSY (INCLUDES 1,2)IGNITION COIL ASSY (INCLUDES 1,2)
-
23084980 SPARK PLUG CAPSPARK PLUG CAP
-
33070172 SPARK PLUG, BKR6E (4)SPARK PLUG, BKR6E (4)
-
43084978 O RINGO RING
-
53084972 BEARING, METALBEARING, METAL
-
63089572 PLATE ASSY (INCLUDES 5,6,8 TO 13, 15)PLATE ASSY (INCLUDES 5,6,8 TO 13, 15)
-
63089248 PLATEPLATE
-
73081657 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
83084973 SEAL, OILSEAL, OIL
-
93089249 STATORSTATOR
-
103089251 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
113089247 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
123084976 SCREWANDWASHER ASSYSCREWANDWASHER ASSY
-
133089250 BAND PULSE (INCLUDES 13)BAND PULSE (INCLUDES 13)
-
143089254 COIL PULSERCOIL PULSER
-
153081256 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
163089238 CDI SYSTEMCDI SYSTEM
