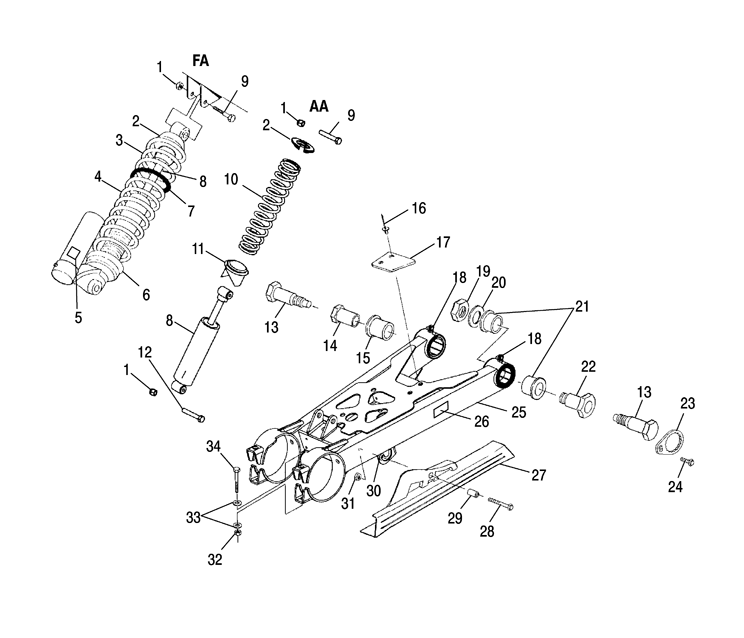

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris SCRAMBLER 500 4X4 (A07BG50AFA) (SILVER) - 2007 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25631045 RETAINER SPRINGRETAINER SPRING
-
37041865-293 SPRING COMP, 180#/IN, 13.36L (RED)SPRING COMP, 180#/IN, 13.36L (RED)
-
47041864-293 SPRING COMP, 280#/IN, 3.4LG (RED)SPRING COMP, 280#/IN, 3.4LG (RED)
-
57075343 COULD NOT FINDCOULD NOT FIND
-
61500278 RING, SPRING, PRELOAD 234 00 063RING, SPRING, PRELOAD 234 00 063
-
75433550 SPACER SPRINGSPACER SPRING
-
87041867 SHOCK REAR MONO, GAS, CH, 19.08LGSHOCK REAR MONO, GAS, CH, 19.08LG
-
97515415 SCREWSCREW
-
115630551 CAM, ADJUST, SPRINGCAM, ADJUST, SPRING
-
127517761 SCREW 3/8 24X2.5HX/CP GR8 YSCREW 3/8 24X2.5HX/CP GR8 Y
-
135134321 BOLT PIVOTBOLT PIVOT
-
145133166 BUSHING PIVOT (LEFT)BUSHING PIVOT (LEFT)
-
155434545 BUSHING HYBRID (BLACK) (LEFT)BUSHING HYBRID (BLACK) (LEFT)
-
167661046 RIVET POP, 3/16(.376 .500)RIVET POP, 3/16(.376 .500)
-
175432727 GUIDE, CHAIN PADGUIDE, CHAIN PAD
-
187080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
197547082 NUT, HEX, JAMNUT, HEX, JAM
-
207556035 WASHER, FLATWASHER, FLAT
-
215434546 BUSHING (RIGHT), HYBRID (BLACK)BUSHING (RIGHT), HYBRID (BLACK)
-
225133167 BUSHING PIVOT (RIGHT)BUSHING PIVOT (RIGHT)
-
235247488 BRKT BOLT LOCKBRKT BOLT LOCK
-
247515399 SCREWSCREW
-
251541988-385 SWING ARM ASSY, LONG TVL (SILVER) (INCLUDES 15,18,21)SWING ARM ASSY, LONG TVL (SILVER) (INCLUDES 15,18,21)
-
267078572 DECAL ''CHAIN FREEPLAY'', HYBRIDDECAL ''CHAIN FREEPLAY'', HYBRID
-
275432854 GUARD, CHAINGUARD, CHAIN
-
287515304 SCREW FLANGEDSCREW FLANGED
-
295332828 BUSHINGBUSHING
-
307558402 WASHER, FLATWASHER, FLAT
-
317542343 NUT, FLANGENUT, FLANGE
-
327547066 NUT, NYLOKNUT, NYLOK
-
337555883 WASHERWASHER
-
347512576 BOLTBOLT
