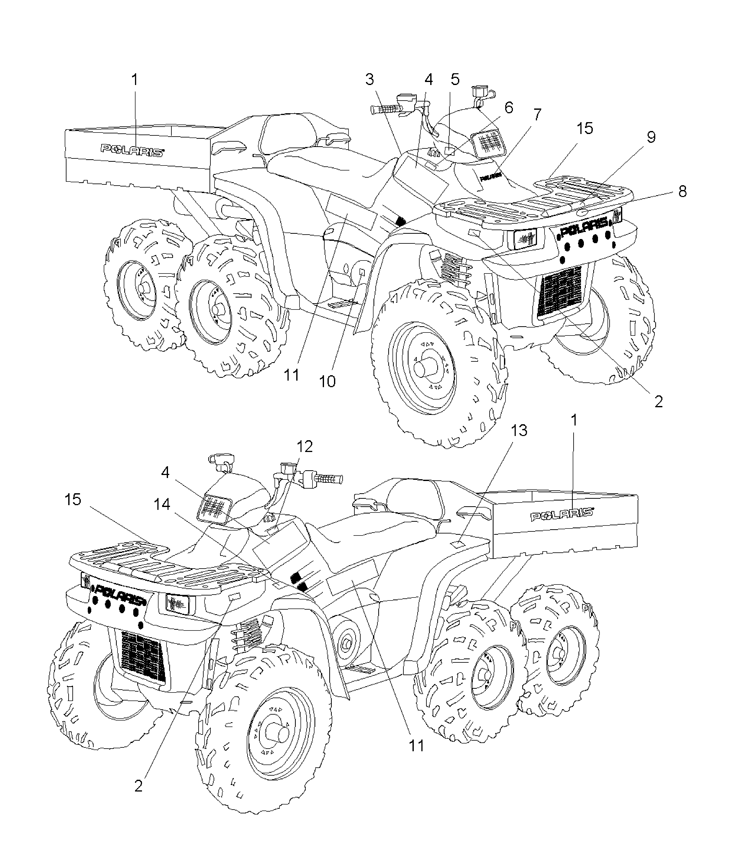

DECALS для Polaris SPORTSMAN 6X6 (A07CL50AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
17174340 DECALDECAL
-
17174341 DECALDECAL
-
27171472 DECAL AMBER, REFLECTOR (LEFT)DECAL AMBER, REFLECTOR (LEFT)
-
27171473 DECAL AMBER, REFLECTOR (RIGHT)DECAL AMBER, REFLECTOR (RIGHT)
-
37172588 DECALDECAL
-
47174336 DECAL TANKSIDE, SPTSMAN 6X6 (LEFT)DECAL TANKSIDE, SPTSMAN 6X6 (LEFT)
-
47174337 DECAL TANKSIDE, SPTSMAN 6X6 (RIGHT)DECAL TANKSIDE, SPTSMAN 6X6 (RIGHT)
-
57078003 DECAL HEADLIGHT ADJUSTMENTDECAL HEADLIGHT ADJUSTMENT
-
67079780 DECALDECAL
-
77079773 DECAL ''POLARIS'', FRONT COVERDECAL ''POLARIS'', FRONT COVER
-
87078465 LOGO POLARIS STARLOGO POLARIS STAR
-
97174476 DECALDECAL
-
107172562 DECAL DRAIN RECOILDECAL DRAIN RECOIL
-
117174338 DECAL SIDE PANEL, LWR, ''AWD'' (LEFT)DECAL SIDE PANEL, LWR, ''AWD'' (LEFT)
-
117174339 DECAL SIDE PANEL, LWR, ''AWD'' (RIGHT)DECAL SIDE PANEL, LWR, ''AWD'' (RIGHT)
-
127172564 DECALDECAL
-
137172591 DECAL (IF BUILT BEFORE 10/02/06)DECAL (IF BUILT BEFORE 10/02/06)
-
137174822 DECAL (IF BUILT AFTER 10/02/06)DECAL (IF BUILT AFTER 10/02/06)
-
147172589 DECALDECAL
-
157171494 DECAL ARROW, CONTAINER (LEFT)DECAL ARROW, CONTAINER (LEFT)
-
157171495 DECAL ARROW, CONTAINER (RIGHT)DECAL ARROW, CONTAINER (RIGHT)
