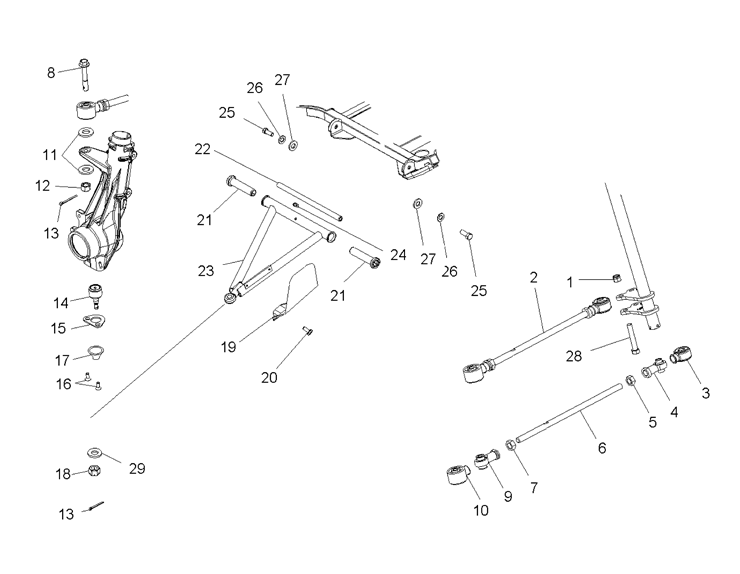

SUSPENSION - FRONT для Polaris SPORTSMAN 6X6 (A07CL50AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
21822852 TIE ROD ASSY, 1/2 20X13.4TIE ROD ASSY, 1/2 20X13.4
-
35412928 BOOT SEAL, ROD END, 1/2 INBOOT SEAL, ROD END, 1/2 IN
-
47061139 ROD END, 3/8, 1/2 20(RIGHT), 44DEGROD END, 3/8, 1/2 20(RIGHT), 44DEG
-
57542711 NUT JAMNUT JAM
-
65020926 ROD, TIEROD, TIE
-
77547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
87517909 BOLT M10X1.25X65, HX WASH HDBOLT M10X1.25X65, HX WASH HD
-
97061138 ROD END, 10MM, 1/2 20(LEFT), 42 DEGROD END, 10MM, 1/2 20(LEFT), 42 DEG
-
105412929 BOOT SEAL, ROD END, 10MMBOOT SEAL, ROD END, 10MM
-
117556099 WASHERWASHER
-
127547177 NUT M10X1.25 HX LOCK YNUT M10X1.25 HX LOCK Y
-
137661203 PIN, COTTERPIN, COTTER
-
147061130 BALLJOINT GREASELESS, STRUT (IF BUILT BEFORE 10/27/06)BALLJOINT GREASELESS, STRUT (IF BUILT BEFORE 10/27/06)
-
147061153 BALLJOINT GREASELESS, STRUT (IF BUILT AFTER 10/27/06)BALLJOINT GREASELESS, STRUT (IF BUILT AFTER 10/27/06)
-
155211121 BRKT, BALL JOINTBRKT, BALL JOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
175412658 BOOT BALLJOINT, GREASELESS, STRTBOOT BALLJOINT, GREASELESS, STRT
-
187542438 NUT, CASTLENUT, CASTLE
-
195431150-070 SHIELD CV JOINT (LEFT) (BLACK)SHIELD CV JOINT (LEFT) (BLACK)
-
195431149-070 SHIELD CV JOINT (RIGHT) (BLACK)SHIELD CV JOINT (RIGHT) (BLACK)
-
207512084 SCREWSCREW
-
215434551 BUSHING A ARM, LONG (BLACK)BUSHING A ARM, LONG (BLACK)
-
225133806 SHAFT A ARMSHAFT A ARM
-
232202282 KIT A FRAME (LEFT) (1541870) (INCLUDES 13, 21, 22, 25)KIT A FRAME (LEFT) (1541870) (INCLUDES 13, 21, 22, 25)
-
232202283 KIT A FRAME (RIGHT) (1541871) (INCLUDES 13, 21, 22, 25)KIT A FRAME (RIGHT) (1541871) (INCLUDES 13, 21, 22, 25)
-
247080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
257512492 SCREWSCREW
-
267552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
277555832 WASHERWASHER
-
287515415 SCREWSCREW
-
297555957 WASHERWASHER
