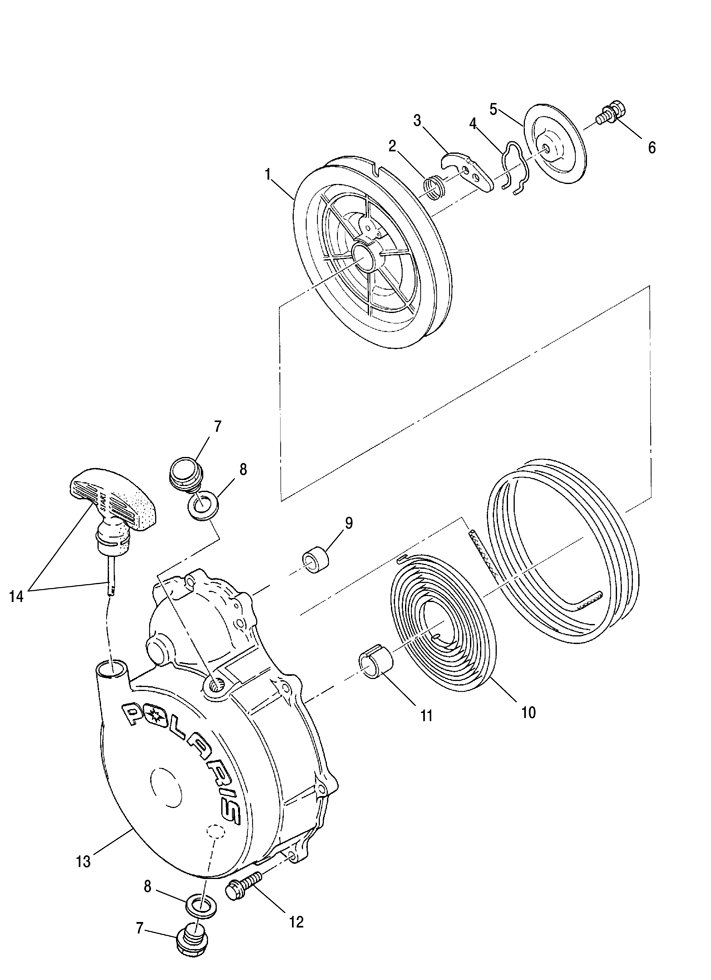

STARTER - RECOIL для Polaris SPORTSMAN 6X6 (A07CL50AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
13084822 REEL ASSYREEL ASSY
-
23083463 SPRING, RETURNSPRING, RETURN
-
33083378 RATCHETRATCHET
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53084744 PLATE, FRICTIONPLATE, FRICTION
-
63085266 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
73086749 PLUGPLUG
-
83082956 GASKETGASKET
-
93083669 BUSHING, STARTERBUSHING, STARTER
-
103083185 SPRING, SPIRALSPRING, SPIRAL
-
113084750 BUSHINGBUSHING
-
123084877 BOLT, FLANGEBOLT, FLANGE
-
133087163 RECOIL ASSY (INCL.1-6,9-11,13,14)RECOIL ASSY (INCL.1-6,9-11,13,14)
-
133087164 CASE, STARTER ASSY (INCLUDES 11)CASE, STARTER ASSY (INCLUDES 11)
-
143085083 ROPE ASSYROPE ASSY
