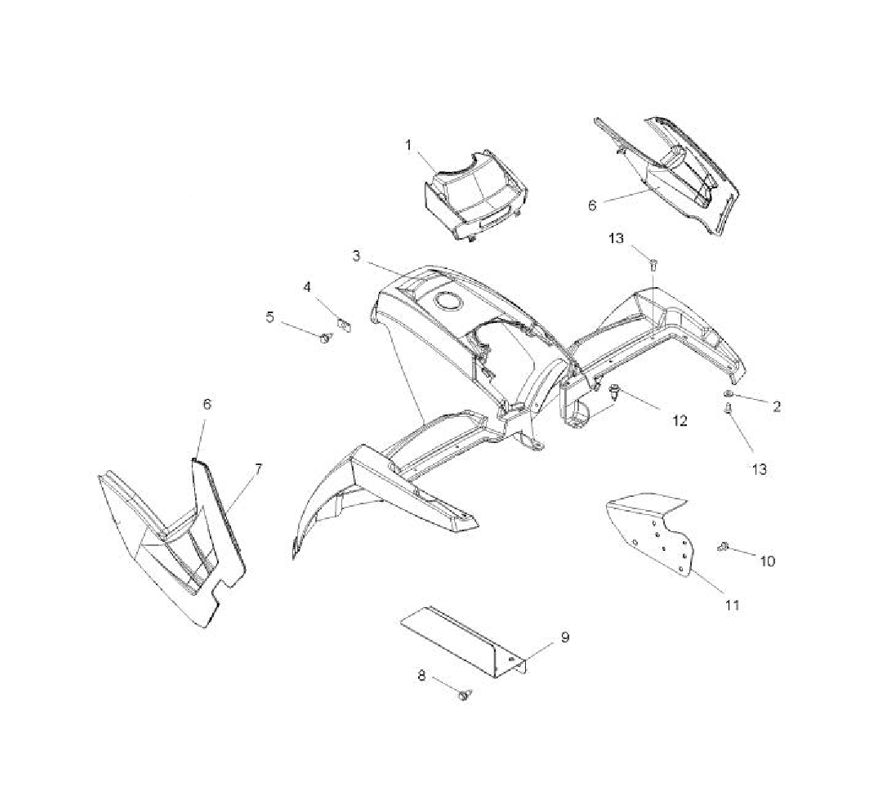

FENDER - FRONT для Polaris SPORTSMAN 800 EFI INT (A07MH76FA) - 2007 года выпуска
-
№АртикулНазвание
-
15436715-177 COVER-FRONT, BLACK METCOVER-FRONT, BLACK MET
-
17661893 CLIP-TRIM,METALCLIP-TRIM,METAL
-
27556034 WASHERWASHER
-
32633307-177 ASM-CAB,FOAM/FRONT, BLACK METASM-CAB,FOAM/FRONT, BLACK MET
-
47670057 NUT, SPEEDNUT, SPEED
-
57517219 SCREWSCREW
-
65435559-473 PANEL-SIDE, LEFT HAND,SILVER VENOMPANEL-SIDE, LEFT HAND,SILVER VENOM
-
62632936-473 PANEL/FOIL ASM, RIGHT HAND,SLVR VENOMPANEL/FOIL ASM, RIGHT HAND,SLVR VENOM
-
75813031 FOIL-SIDE PANEL,L-SHAPEFOIL-SIDE PANEL,L-SHAPE
-
75813041 FOIL-SIDE PANEL, RIGHT HANDFOIL-SIDE PANEL, RIGHT HAND
-
75813055 FOIL-SIDE PANEL,FRONTFOIL-SIDE PANEL,FRONT
-
87517386 SCREWSCREW
-
95248100-329 GUARD-SPLASH,SPMN,RH,E-COATGUARD-SPLASH,SPMN,RH,E-COAT
-
107512232 BOLTBOLT
-
115246872 GUARD,SPLASH LEFT HANDGUARD,SPLASH LEFT HAND
-
127661855 RIVET-TUFLOK,.315-.325X.787 (50RIVET-TUFLOK,.315-.325X.787 (50
-
137512026 SCREWSCREW
