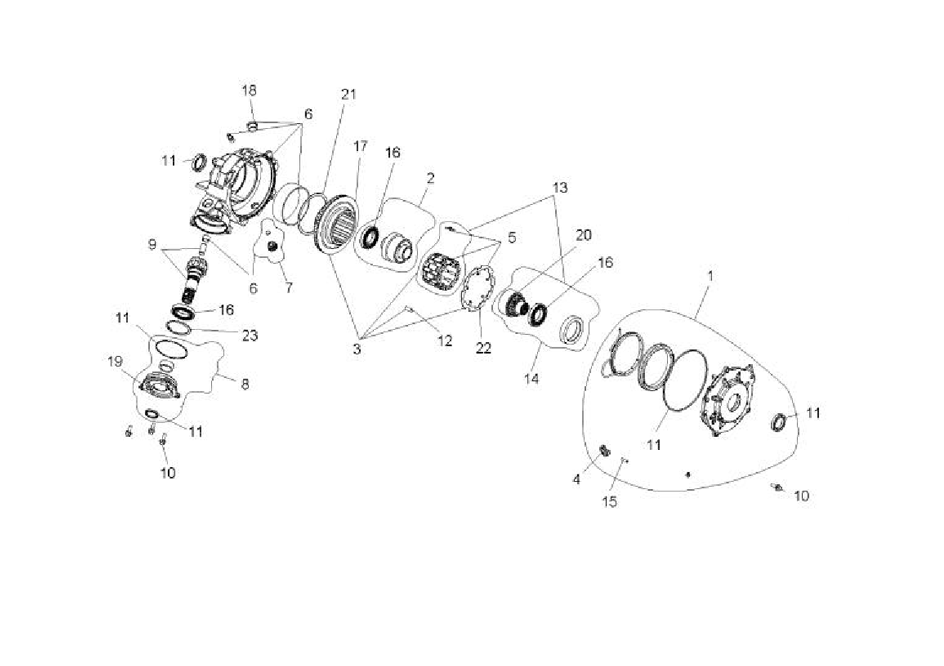

GEARCASE - FRONT для Polaris SPORTSMAN 800 EFI INT (A07MH76FA) - 2007 года выпуска
-
№АртикулНазвание
-
-1332578 ASM-GEARCASE,AWD (INCL. ALL)ASM-GEARCASE,AWD (INCL. ALL)
-
13234402 ASM-COVER,OUTPUT (INCL. COIL, THRUST PLATE, O-RING, SEAL, INSERT, SET SCREW)ASM-COVER,OUTPUT (INCL. COIL, THRUST PLATE, O-RING, SEAL, INSERT, SET SCREW)
-
23234403 ASM-HUB,RACE/OUTPUT (INCL. BEARING, HUB ASM., SPACER)ASM-HUB,RACE/OUTPUT (INCL. BEARING, HUB ASM., SPACER)
-
33234404 ASM-CLUTCH (INCL. ARMATURE PLATE, CLUTCH HOUSING/RING GEAR, ROLL CAGE)ASM-CLUTCH (INCL. ARMATURE PLATE, CLUTCH HOUSING/RING GEAR, ROLL CAGE)
-
43234389 ASM-PLATE,THRUST (INCL. SEAL)ASM-PLATE,THRUST (INCL. SEAL)
-
53234466 ASM-ROLL CAGE (INCL. ROLL CAGE, ARMATURE PLATE)ASM-ROLL CAGE (INCL. ROLL CAGE, ARMATURE PLATE)
-
63234411 ASM-GEARCASE (INCL. BUSHINGS, SEAL, VENT, PLUGS)ASM-GEARCASE (INCL. BUSHINGS, SEAL, VENT, PLUGS)
-
73234412 ASM-PLUG,DRAIN,MAGNETIC (INCL. MAGNET)ASM-PLUG,DRAIN,MAGNETIC (INCL. MAGNET)
-
83234463 ASM-INPUT COVER (INCL. BUSHING, O-RING, SEAL)ASM-INPUT COVER (INCL. BUSHING, O-RING, SEAL)
-
93234415 ASM-GEAR,PINION (INCL. PIN)ASM-GEAR,PINION (INCL. PIN)
-
103234405 KIT-BOLT (INCL. ALL BOLTS)KIT-BOLT (INCL. ALL BOLTS)
-
113234406 KIT-REPAIR,SEAL (INCL. ALL SEALS, O-RINGS)KIT-REPAIR,SEAL (INCL. ALL SEALS, O-RINGS)
-
123234393 KIT-ROLLER (20) (INCL. COMPLETE SET ROLLERS)KIT-ROLLER (20) (INCL. COMPLETE SET ROLLERS)
-
133234464 KIT-CAGE,SPRINGS AND OUTPUT HUBS (INCL. SPACERS)KIT-CAGE,SPRINGS AND OUTPUT HUBS (INCL. SPACERS)
-
143234465 HUB-OUTPUT, RIGHT HAND (INCL. SPACER, BEARING, HUB, BUSHING)HUB-OUTPUT, RIGHT HAND (INCL. SPACER, BEARING, HUB, BUSHING)
-
153234408 SET-SCREW,#10-14 W/NYLOKSET-SCREW,#10-14 W/NYLOK
-
163234390 BEARINGBEARING
-
173234409 CLUTCH-HSG/RING GEAR,42T 7.624CLUTCH-HSG/RING GEAR,42T 7.624
-
183233942 PLUG-OIL FILL 3/4-16 HOLLOWPLUG-OIL FILL 3/4-16 HOLLOW
-
193234413 ASM-COVER PLATE,INPUTASM-COVER PLATE,INPUT
-
203234436 BUSHING-1X1.316X1BUSHING-1X1.316X1
-
213234437 SPACER-RING GEARSPACER-RING GEAR
-
223234407 PLATE-ARMATUREPLATE-ARMATURE
-
233234416 RING-RETAINING,INTRNL,5000-218RING-RETAINING,INTRNL,5000-218
