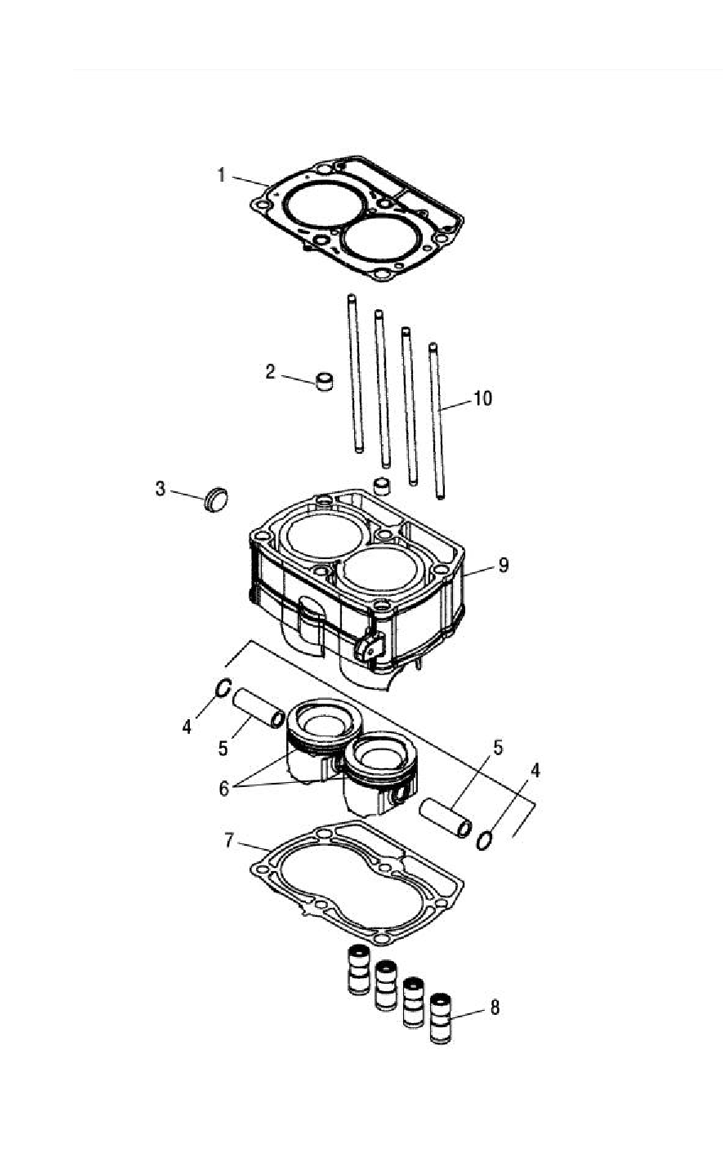

PISTON AND CYLINDER для Polaris SPORTSMAN 800 EFI INT (A07MH76FA) - 2007 года выпуска
-
№АртикулНазвание
-
-2202917 KIT-PISTON (INCL. 4-6)KIT-PISTON (INCL. 4-6)
-
15247359 GASKET-HEADGASKET-HEAD
-
27661175 DOWEL-HOL,M16X12,0600089DOWEL-HOL,M16X12,0600089
-
37051534 PLUG-EXPANSION 1 1/8''PLUG-EXPANSION 1 1/8''
-
43021510 CIRCLIP-PISTONCIRCLIP-PISTON
-
62202920 KIT-PISTON RINGS 80MMKIT-PISTON RINGS 80MM
-
75247360 GASKET-BASEGASKET-BASE
-
85134152 LIFTER-VALVE,HYDRAULICLIFTER-VALVE,HYDRAULIC
-
92202696 KIT-CYLINDER,80 MM (INCL. 3)KIT-CYLINDER,80 MM (INCL. 3)
-
105132402 PUSHRODPUSHROD
