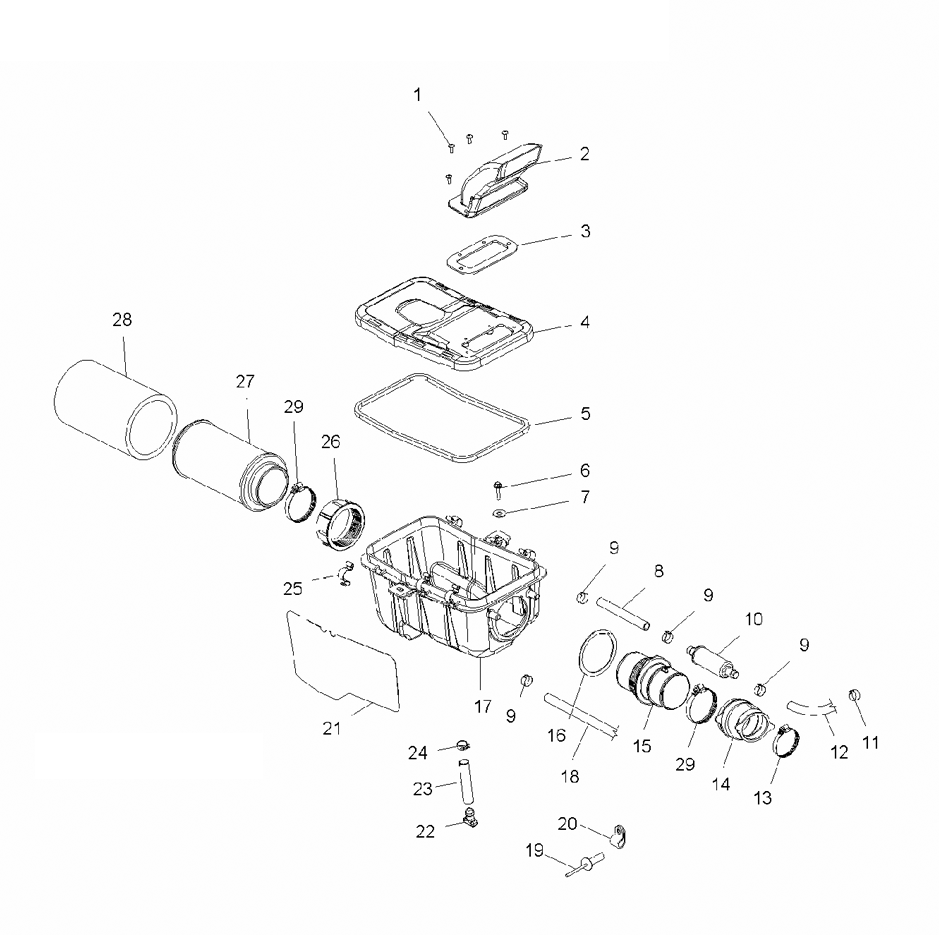

AIR INTAKE SYSTEM для Polaris SCRAMBLER 4X4 (BG50AA) (SONIC BLUE) - 2008 года выпуска
-
№АртикулНазвание
-
17517317 SCREWSCREW
-
25436944 DUCT-INLET, AIRBOX COVERDUCT-INLET, AIRBOX COVER
-
35411422 GASKET, INTAKEGASKET, INTAKE
-
45432868 COVER, AIRBOXCOVER, AIRBOX
-
55812829 SEAL-AIRBOX COVERSEAL-AIRBOX COVER
-
67515180 SCREWSCREW
-
77558301 WASHER, FLATWASHER, FLAT
-
88450073-600 LINE, BREATHER, 3/8 ID.LINE, BREATHER, 3/8 ID.
-
97080699 CLAMP, HOSECLAMP, HOSE
-
102530029 FILTER, BREATHER, IN LINEFILTER, BREATHER, IN LINE
-
117080694 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
125411847 HOSE, BRTHR, FORMED, W/CHAFEHOSE, BRTHR, FORMED, W/CHAFE
-
137080413 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
145411414 BOOT, CARB, HYBRIDBOOT, CARB, HYBRID
-
155432473 DUCT, CARBURETOR, INLETDUCT, CARBURETOR, INLET
-
165830128 GASKET, CARBURETOR INLET DUCTGASKET, CARBURETOR INLET DUCT
-
175432774 BOX, AIRBOX, AIR
-
185411873 HOSE, BRTHR, SLIT, 63CM, 3/8I.DHOSE, BRTHR, SLIT, 63CM, 3/8I.D
-
197621432 RIVET, 3/16X.402RIVET, 3/16X.402
-
207080880 CLAMP-HOSE, .625 DIA VNL COATEDCLAMP-HOSE, .625 DIA VNL COATED
-
215813042 FOIL-AIRBOX, 10.75 X 5.60FOIL-AIRBOX, 10.75 X 5.60
-
225435299 PLUG-TRAPPLUG-TRAP
-
238450059-150 FUEL LINEFUEL LINE
-
247080650 CLAMP, HOSECLAMP, HOSE
-
255242044 CLIPCLIP
-
265432601 COLLAR, CARBURETOR, INLETCOLLAR, CARBURETOR, INLET
-
277080595 FILTER, AIRFILTER, AIR
-
285811633 FILTER, PRECLEAN, SLEEVEFILTER, PRECLEAN, SLEEVE
-
297080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
