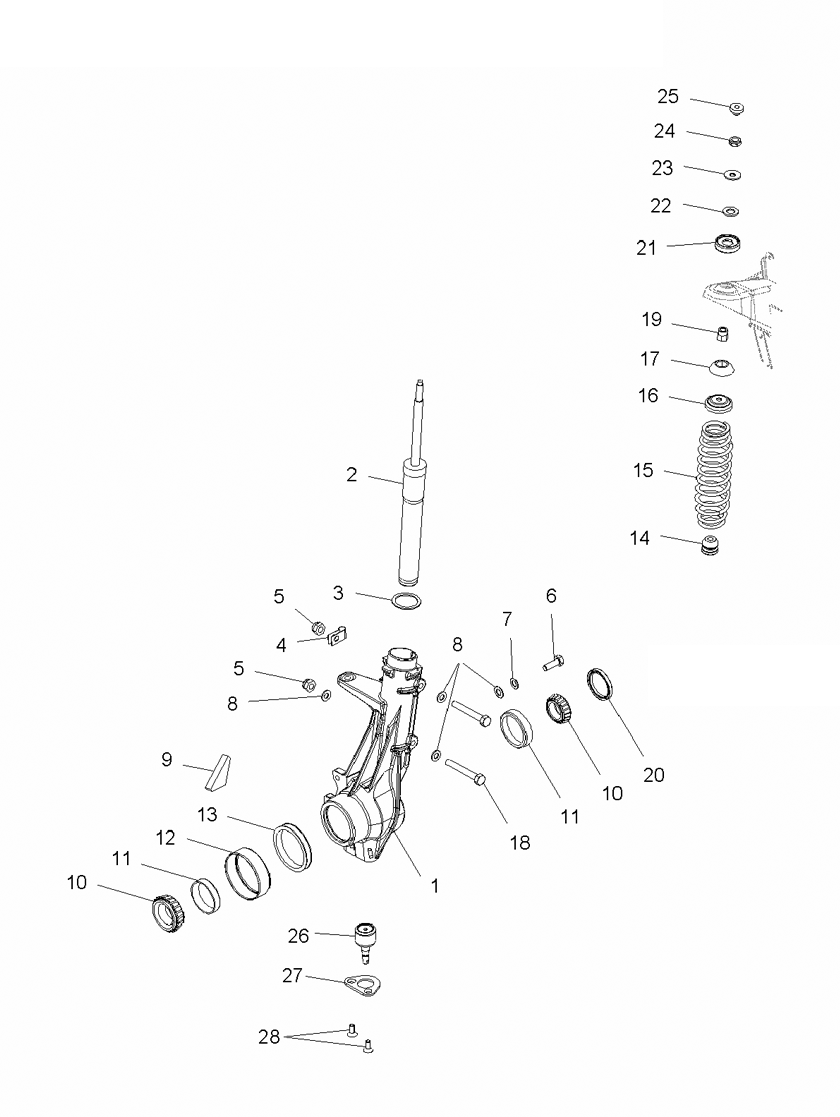

SUSPENSION - FRONT STRUT для Polaris SCRAMBLER 4X4 (BG50AA) (SONIC BLUE) - 2008 года выпуска
-
№АртикулНазвание
-
11822821 ASM-HUBSTRUT, LEFT HAND [INCL. 9,12,13,26,27,28]ASM-HUBSTRUT, LEFT HAND [INCL. 9,12,13,26,27,28]
-
11822822 ASM-HUBSTRUT, RIGHT HAND [INCL. 9,12,13,26,27,28]ASM-HUBSTRUT, RIGHT HAND [INCL. 9,12,13,26,27,28]
-
27041762 STRUT-FRONT, 18X30MM, 184.7MM LTSTRUT-FRONT, 18X30MM, 184.7MM LT
-
35211115 WASHERWASHER
-
47080367 CLAMP, CABLECLAMP, CABLE
-
57542324 NUT, NYLOKNUT, NYLOK
-
67512365 SCREW, CAPSCREW, CAP
-
77552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87558402 WASHER, FLATWASHER, FLAT
-
95810439 RETAINER, WIRE, STRUT CASTRETAINER, WIRE, STRUT CAST
-
103554509 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
113554507 BRG, TAPER, ROLL CUPBRG, TAPER, ROLL CUP
-
125222193 SLEEVE, STRUT HUB SEALSLEEVE, STRUT HUB SEAL
-
132410133 HUB/COIL (KIT)HUB/COIL (KIT)
-
145412665 BUMPER-MCU, 17.8MM IDBUMPER-MCU, 17.8MM ID
-
157041603-133 SPRINGSPRING
-
165243364 RETAINER-SPRINGRETAINER-SPRING
-
175432871 PIVOT, BALL, BOTTOMPIVOT, BALL, BOTTOM
-
187515339 BOLTBOLT
-
195132062 SPACER-1/2-20SPACER-1/2-20
-
203610028 SEAL, HUB STRUTSEAL, HUB STRUT
-
215432872 PIVOT, BALL, TOPPIVOT, BALL, TOP
-
225810291 SPACER, RUBBERSPACER, RUBBER
-
237555749 WASHERWASHER
-
247547104 NUTNUT
-
257052028 GROMMETGROMMET
-
267061153 BALLJOINT-GREASELESS, STRUTBALLJOINT-GREASELESS, STRUT
-
275211121 BRKT, BALL JOINT-BRKT, BALL JOINT-
-
287512284 BOLT, SOCKETBOLT, SOCKET
