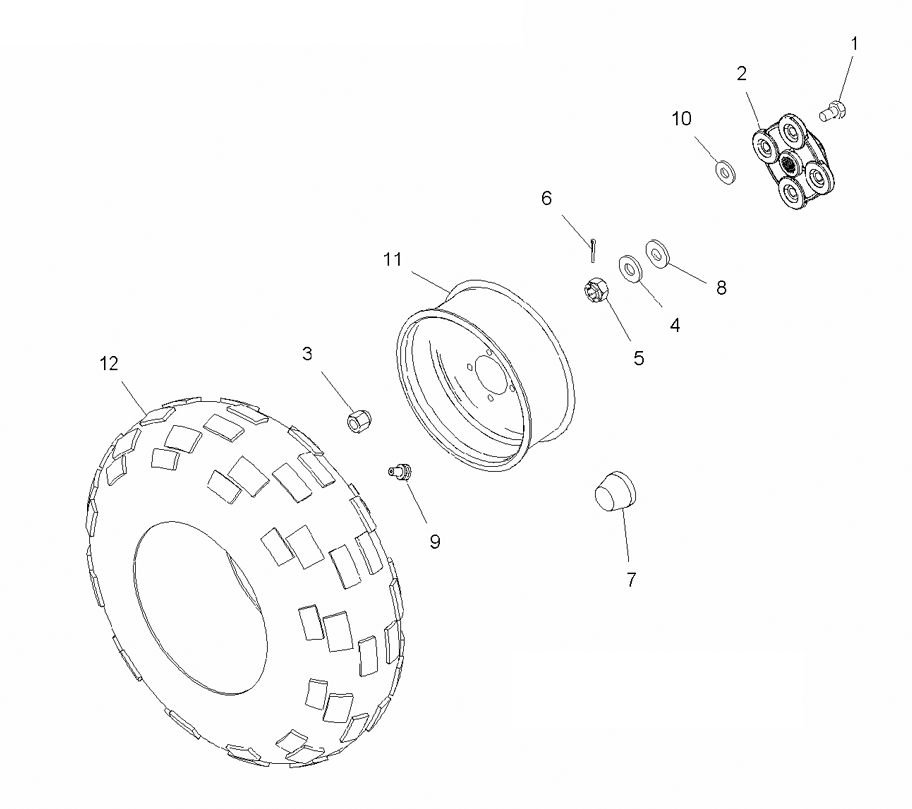

WHEEL - REAR для Polaris SCRAMBLER 4X4 (BG50AA) (SONIC BLUE) - 2008 года выпуска
-
№АртикулНазвание
-
17512673 BOLTBOLT
-
25131777 HUB, R.WHEEL, LG. FLANGE (MACH)HUB, R.WHEEL, LG. FLANGE (MACH)
-
37542714 NUTNUT
-
47555796 WASHER, CONEWASHER, CONE
-
57543005 NUT, CASTLENUT, CASTLE
-
67661404 PIN, COTTERPIN, COTTER
-
75413427 HUB-DUST COVERHUB-DUST COVER
-
87555745 WASHERWASHER
-
91525017 VALVE, RIMVALVE, RIM
-
107670081 PUSHNUT, BOLTPUSHNUT, BOLT
-
111520183-486 RIM, REAR, 8.5X10, NR SLVRRIM, REAR, 8.5X10, NR SLVR
-
125412323 TIRE-22X11-10, TITAN 489, 2 STARTIRE-22X11-10, TITAN 489, 2 STAR
