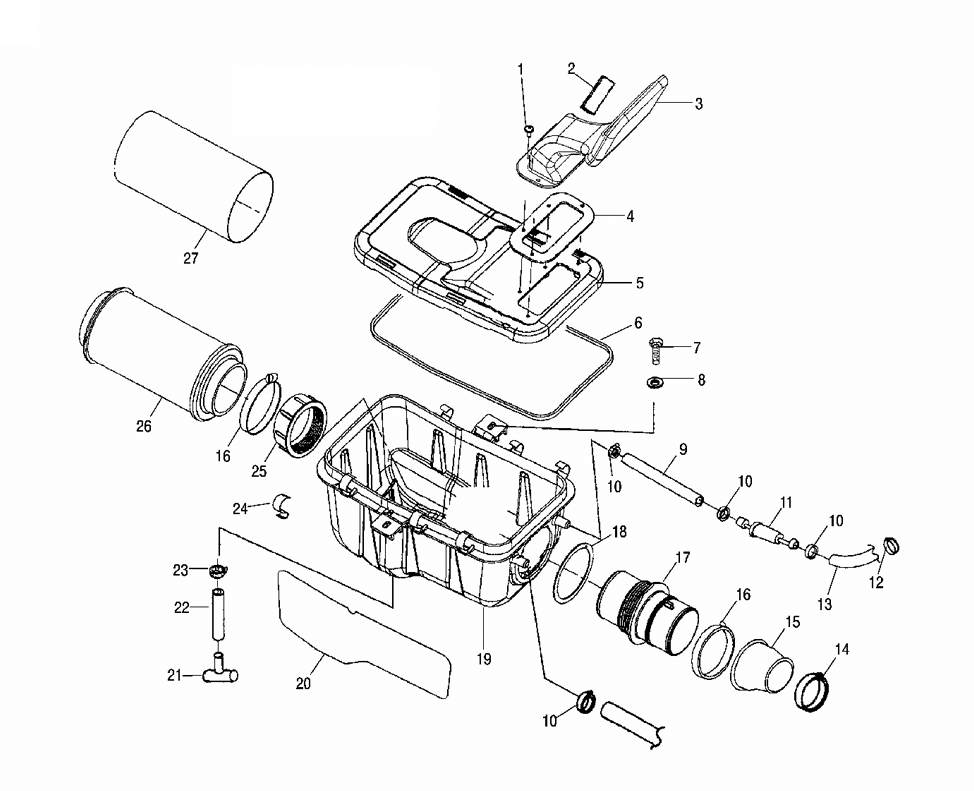

AIR INTAKE SYSTEM для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
17517317 SCREWSCREW
-
25810455 PADPAD
-
35436941 DUCT-INLET, AIR BOX COVERDUCT-INLET, AIR BOX COVER
-
45411422 GASKET, INTAKEGASKET, INTAKE
-
55432868 COVER, AIRBOXCOVER, AIRBOX
-
65812829 SEAL-AIRBOX COVERSEAL-AIRBOX COVER
-
77515179 SCREWSCREW
-
87558301 WASHER, FLATWASHER, FLAT
-
98450073-600 LINE, BREATHER, 3/8 ID.LINE, BREATHER, 3/8 ID.
-
107080699 CLAMP, HOSECLAMP, HOSE
-
112530029 FILTER, BREATHER, IN LINEFILTER, BREATHER, IN LINE
-
127080694 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
135411921 HOSE-BREATHER, NITRILEHOSE-BREATHER, NITRILE
-
147080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
155411540 BOOT, CARBURETORBOOT, CARBURETOR
-
167080413 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
175432473 DUCT, CARBURETOR, INLETDUCT, CARBURETOR, INLET
-
185830128 GASKET, CARBURETOR INLET DUCTGASKET, CARBURETOR INLET DUCT
-
195433387 BOX, AIRBOX, AIR
-
205813042 FOIL-AIRBOX, 10.75 X 5.60FOIL-AIRBOX, 10.75 X 5.60
-
215435299 PLUG-TRAPPLUG-TRAP
-
228450059-150 FUEL LINEFUEL LINE
-
237080650 CLAMP, HOSECLAMP, HOSE
-
245242044 CLIPCLIP
-
255432601 COLLAR, CARBURETOR, INLETCOLLAR, CARBURETOR, INLET
-
267080595 FILTER, AIRFILTER, AIR
-
275811633 FILTER, PRECLEAN, SLEEVEFILTER, PRECLEAN, SLEEVE
