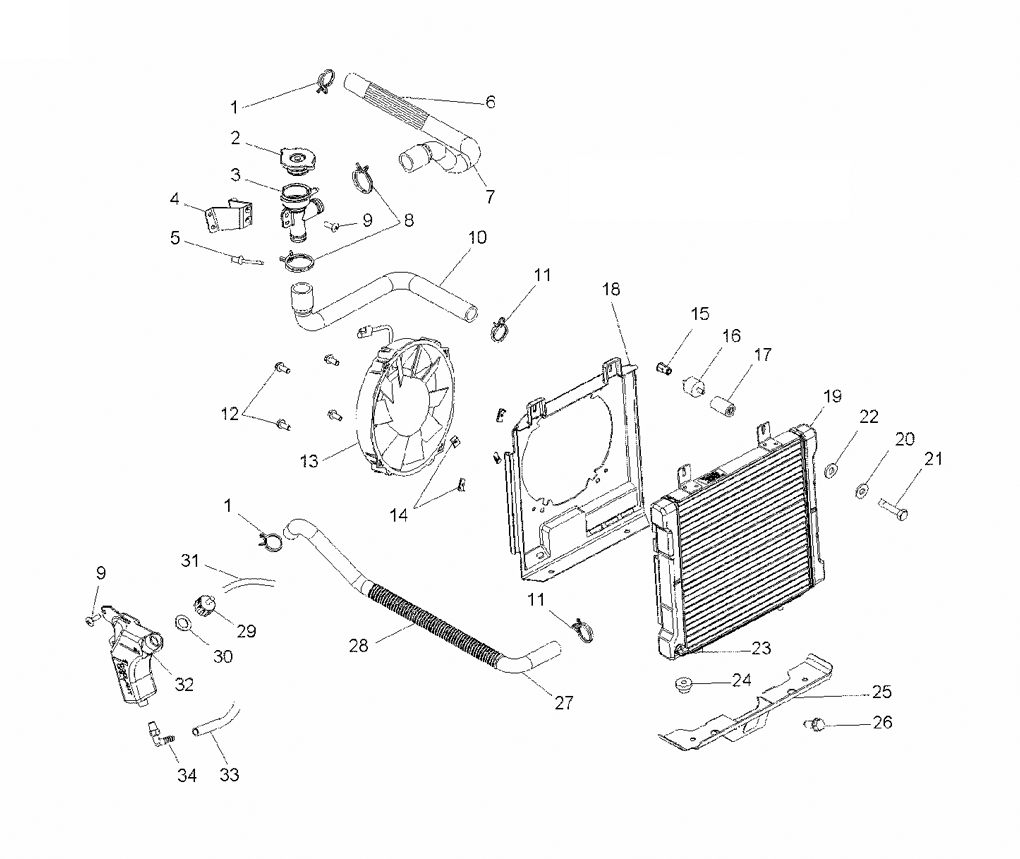

COOLING SYSTEM для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
17080614 CLAMP, HOSECLAMP, HOSE
-
21240044 CAP-PRESSURE, 13 PSICAP-PRESSURE, 13 PSI
-
35433364 FILLER-REMOTE COOLANTFILLER-REMOTE COOLANT
-
45243505 BRKT-REMOTE COOLANT FILL PLTDBRKT-REMOTE COOLANT FILL PLTD
-
57661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
65433948 FLEXGUARD-PLASTIC GUARDFLEXGUARD-PLASTIC GUARD
-
75411811 HOSE, ENGINE, UPPERHOSE, ENGINE, UPPER
-
87080827 CLAMP-ROTO SPRING 1''CLAMP-ROTO SPRING 1''
-
97512084 SCREWSCREW
-
105411632 HOSE, FILLER NECKHOSE, FILLER NECK
-
117080826 CLAMP-ROTO CLIPCLAMP-ROTO CLIP
-
127517659 SCREWSCREW
-
132410430 FAN AND MOTOR ASSY.FAN AND MOTOR ASSY.
-
147670111 CLIP, UCLIP, U
-
157547069 NUTSERT, HEXNUTSERT, HEX
-
163110032 MOUNT, RUBBERMOUNT, RUBBER
-
175020572 SPACER, MOUNTSPACER, MOUNT
-
185433059 SHROUD-FANSHROUD-FAN
-
191240178 RADIATORRADIATOR
-
207552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
217512240 BOLTBOLT
-
227558301 WASHER, FLATWASHER, FLAT
-
237052296 VALVE-PLASTIC DRAINVALVE-PLASTIC DRAIN
-
235411633 DRAIN PLUGDRAIN PLUG
-
245410584 BUSHING-MOUNT, LOWER RADIATORBUSHING-MOUNT, LOWER RADIATOR
-
255243503-067 BRKT, RADIATOR, LOWER, BLACKBRKT, RADIATOR, LOWER, BLACK
-
267512232 BOLTBOLT
-
275411694 HOSE, LOWER ENGINEHOSE, LOWER ENGINE
-
285521511 GUARD-HOSE, 12''GUARD-HOSE, 12''
-
295437635 CAP-OVERFLOW BOTTLE W/FITTINGCAP-OVERFLOW BOTTLE W/FITTING
-
305810279 GASKETGASKET
-
318360009-600 LINE, FUEL, 1/8 ID, 600 CM.LINE, FUEL, 1/8 ID, 600 CM.
-
325433410 TANK, SURGETANK, SURGE
-
338450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
347052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
