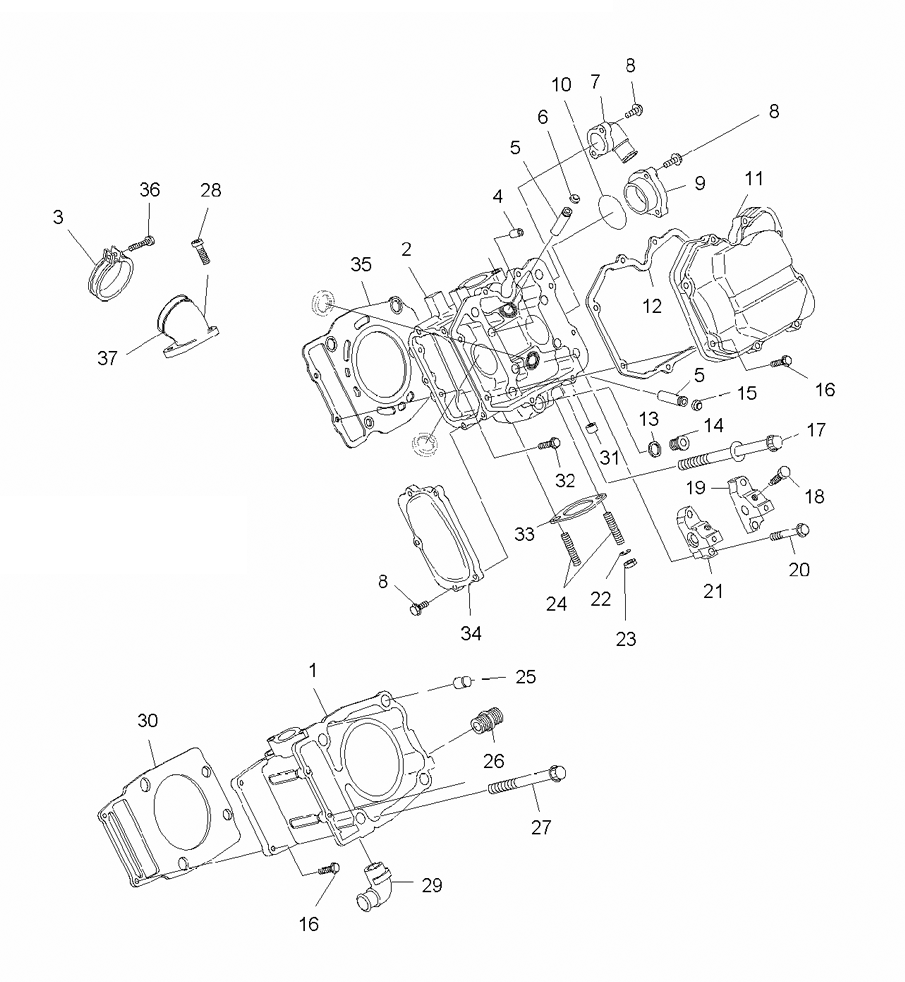

CYLINDER HEAD W/ CYLINDER для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
13089256 ASM-CYLINDER [INCL. 29]ASM-CYLINDER [INCL. 29]
-
23085527 ASM., HEAD, CYLINDER [INCL. 4-6,13-15,24,31]ASM., HEAD, CYLINDER [INCL. 4-6,13-15,24,31]
-
33083166 ASM-ADAPTER BAND [INCL. 36]ASM-ADAPTER BAND [INCL. 36]
-
43084857 KNOCK, PIPEKNOCK, PIPE
-
53084994 GUIDE, VALVEGUIDE, VALVE
-
63084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
73084870 ADAPTER-WATER OUTADAPTER-WATER OUT
-
83084877 BOLT, FLANGEBOLT, FLANGE
-
93084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
103084867 O-RINGO-RING
-
113085073 COVER, ROCKERCOVER, ROCKER
-
123085074 GASKET (ROCKER COVER)GASKET (ROCKER COVER)
-
133084861 GASKETGASKET
-
143084860 PLUGPLUG
-
153084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
163084874 BOLT, FLANGEBOLT, FLANGE
-
173084875 BOLTBOLT
-
183085854 BOLT-ROCKER SHAFTBOLT-ROCKER SHAFT
-
193084864 SUPPORT, VALVE ROCKER SHAFT (PTO)SUPPORT, VALVE ROCKER SHAFT (PTO)
-
203084876 BOLTBOLT
-
213084863 SUPPORT, VALVE ROCKER SHAFT (MAG)SUPPORT, VALVE ROCKER SHAFT (MAG)
-
223080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
233087199 NUTNUT
-
243085326 STUDSTUD
-
253087266 KNOCK, PIPEKNOCK, PIPE
-
263084849 UNION-OIL FILTERUNION-OIL FILTER
-
273084873 BOLT, FLANGEBOLT, FLANGE
-
283081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
293086747 PIPE-2, ELBOWPIPE-2, ELBOW
-
303085370 GASKET, CYLINDERGASKET, CYLINDER
-
313084862 PLUG, BLINDPLUG, BLIND
-
323086781 BOLT, FLANGEBOLT, FLANGE
-
333085075 ASM., GASKET (EXHAUST)ASM., GASKET (EXHAUST)
-
343089242 COVER-CAMSHAFTCOVER-CAMSHAFT
-
353085371 ASM., GASKET, HEADASM., GASKET, HEAD
-
363081497 SCREW, PAN HEADSCREW, PAN HEAD
-
373084879 ADAPTERADAPTER
