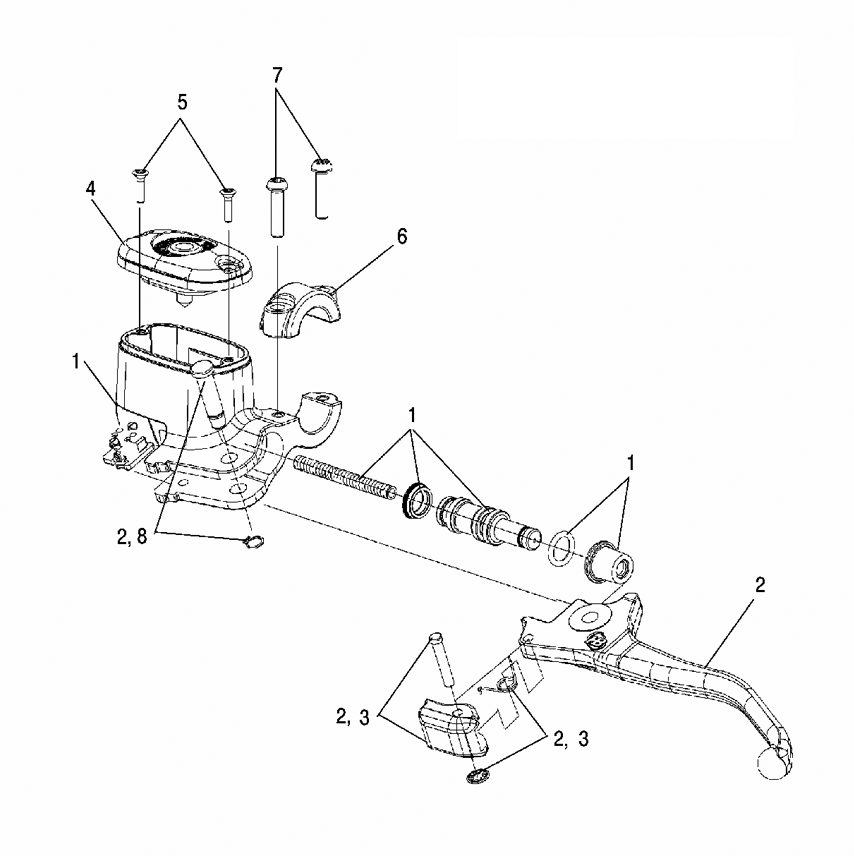

BRAKE - FRONT MASTER CYLINDER для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска
-
№АртикулНазвание
-
-2203051 KIT-M/C ASM 11/16'', HB [INCL. ALL]KIT-M/C ASM 11/16'', HB [INCL. ALL]
-
12203052 KIT-PISTONANDRES. BODY, 11/16'', HB [INCL. PISTON, SEALS, SPRING, BODY]KIT-PISTONANDRES. BODY, 11/16'', HB [INCL. PISTON, SEALS, SPRING, BODY]
-
22203053 KIT-LEVER AND PARK LEVER, HB [INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS]KIT-LEVER AND PARK LEVER, HB [INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS]
-
32203054 KIT-PARK LEVER, HB [INCL. PIN, LEVER, SPRING, RING]KIT-PARK LEVER, HB [INCL. PIN, LEVER, SPRING, RING]
-
42203055 KIT-M/C COVER, HB [INCL., COVER W/SEAL]KIT-M/C COVER, HB [INCL., COVER W/SEAL]
-
52203056 KIT-M/C COVER SCREWS, HB [INCL. 2 SCREWS]KIT-M/C COVER SCREWS, HB [INCL. 2 SCREWS]
-
62203093 KIT-CLAMP, HB, 11/16'' [INCL. CLAMP ONLY]KIT-CLAMP, HB, 11/16'' [INCL. CLAMP ONLY]
-
72203058 KIT-SCREWS, CLAMP, HB [INCL. 2 SCREWS]KIT-SCREWS, CLAMP, HB [INCL. 2 SCREWS]
-
82203059 KIT-PIVOT PIN, HB [INCL. BRAKE LEVER, PIN, SNAP RING]KIT-PIVOT PIN, HB [INCL. BRAKE LEVER, PIN, SNAP RING]
