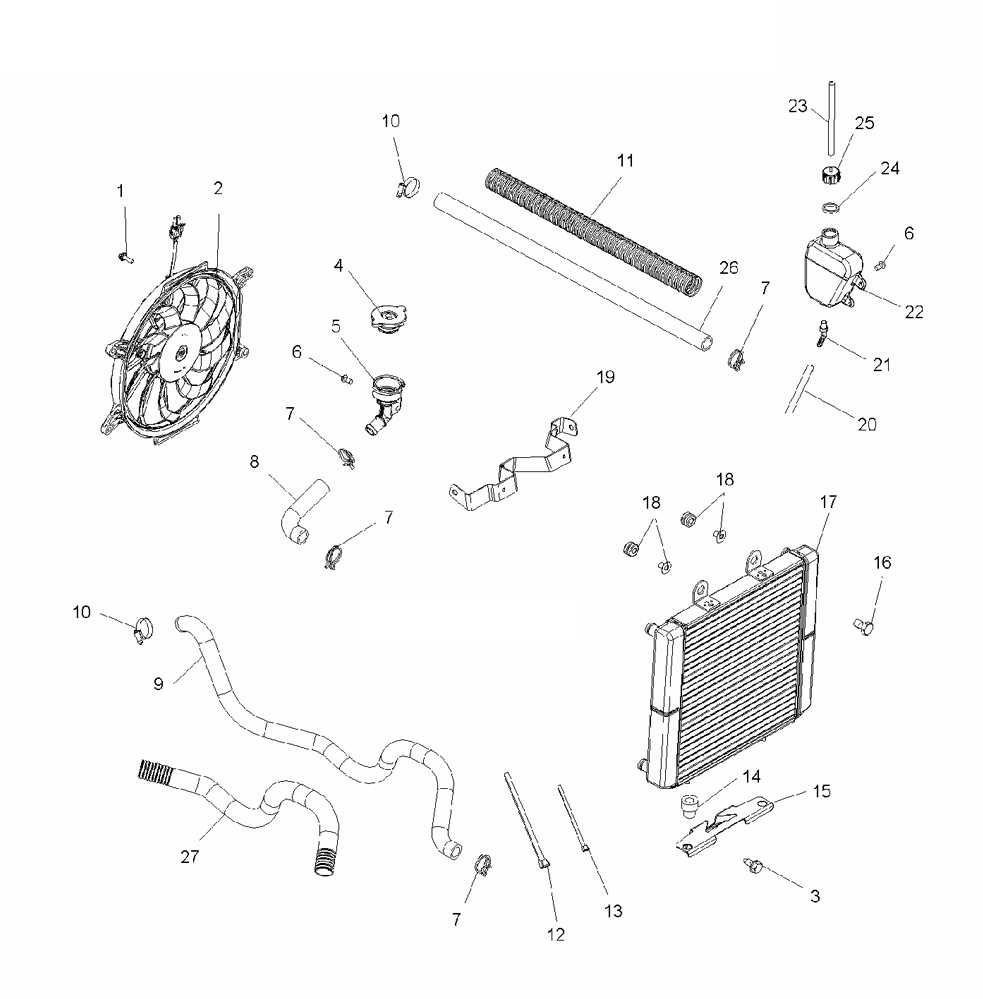

COOLING SYSTEM для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска
-
№АртикулНазвание
-
17517975 BOLT-M6 HEX HDBOLT-M6 HEX HD
-
22410383 ASM-FAN AND MOTOR, SPAL, 11''ASM-FAN AND MOTOR, SPAL, 11''
-
37517386 SCREWSCREW
-
41240044 CAP-PRESSURE, 13 PSICAP-PRESSURE, 13 PSI
-
55412402 FILLER NECKFILLER NECK
-
67512084 SCREWSCREW
-
77080826 CLAMP-ROTO CLIPCLAMP-ROTO CLIP
-
85412405 HOSE-FILLER NECKHOSE-FILLER NECK
-
95412860 HOSE-LOWER, ENGINEHOSE-LOWER, ENGINE
-
107080696 CLAMP, HOSE, 1.25, WORM DRIVECLAMP, HOSE, 1.25, WORM DRIVE
-
115521550 PLASTIC, HOSEGUARD 18''PLASTIC, HOSEGUARD 18''
-
127080138 CABLE TIECABLE TIE
-
137080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
145410584 BUSHING-MOUNT, LOWER RADIATORBUSHING-MOUNT, LOWER RADIATOR
-
155247047-067 BRKT-RADIATOR, LOWER, BLACKBRKT-RADIATOR, LOWER, BLACK
-
167515179 SCREWSCREW
-
171240305 RADIATOR-CROSSFLOWRADIATOR-CROSSFLOW
-
185411975 GROMMET/INSERT-ASMGROMMET/INSERT-ASM
-
195250769 BRKT-RADIATOR, UPPERBRKT-RADIATOR, UPPER
-
208450003-1525 LINE, FUEL, 1/4 ID (1525 CM.)LINE, FUEL, 1/4 ID (1525 CM.)
-
217052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
225436936 TANK-SURGETANK-SURGE
-
238360009-600 LINE, FUEL, 1/8 ID, 600 CM.LINE, FUEL, 1/8 ID, 600 CM.
-
245810279 GASKETGASKET
-
255437635 CAP-OVERFLOW BOTTLE, W/FITTINGCAP-OVERFLOW BOTTLE, W/FITTING
-
265412859 HOSE-UPPER, ENGINEHOSE-UPPER, ENGINE
-
275521748 PLASTIC-HOSE GUARD 20''PLASTIC-HOSE GUARD 20''
