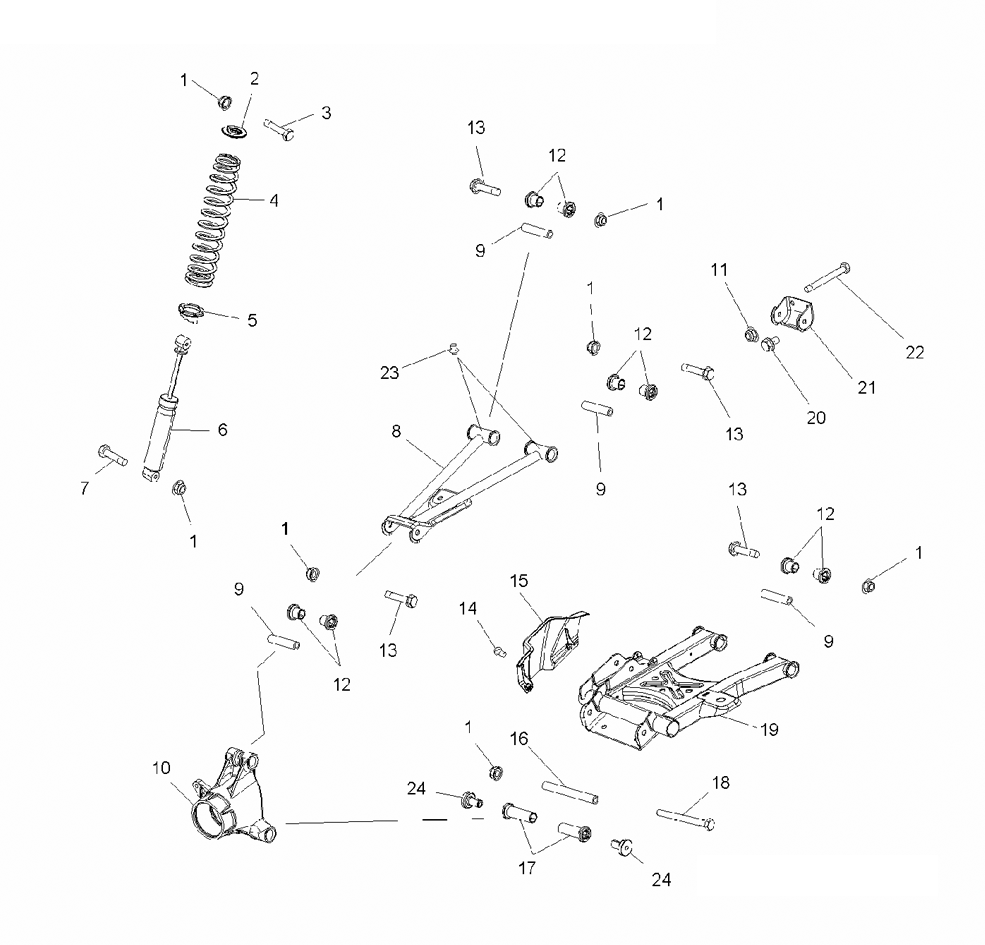

SUSPENSION - REAR для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска
-
№АртикулНазвание
-
17547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
25251753 RETAINER-SPRING, STEELRETAINER-SPRING, STEEL
-
37515433 SCREWSCREW
-
47043375-067 SPRING-COMP, REAR, 120#/IN, BLACKSPRING-COMP, REAR, 120#/IN, BLACK
-
55630551 CAM, ADJUST, SPRINGCAM, ADJUST, SPRING
-
67043374 SHOCK-RR, IRSSHOCK-RR, IRS
-
77515415 SCREWSCREW
-
81015848-067 WELD-UPPER CONTROL ARM, LEFT HAND, BLACKWELD-UPPER CONTROL ARM, LEFT HAND, BLACK
-
81015849-067 WELD-UPPER CONTROL ARM, RIGHT HAND, BLACKWELD-UPPER CONTROL ARM, RIGHT HAND, BLACK
-
95134882 SHAFT-A-ARM, SHORTSHAFT-A-ARM, SHORT
-
105134985 CARRIER-BEARING, WHEEL(MACH)RIGHT HANDCARRIER-BEARING, WHEEL(MACH)RIGHT HAND
-
117547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
125436832 BUSHING-CONTROL ARM, 1.285BUSHING-CONTROL ARM, 1.285
-
137518523 SCR-3/8-24X3 3/4 HXFLG GR5-YSCR-3/8-24X3 3/4 HXFLG GR5-Y
-
147518196 SCR-10-24X3/4 PH/TX/TRI-SEMS YSCR-10-24X3/4 PH/TX/TRI-SEMS Y
-
155437233-070 SHIELD-CV, REAR, LEFT HAND, BLACKSHIELD-CV, REAR, LEFT HAND, BLACK
-
155437234-070 SHIELD-CV, REAR, RIGHT HAND, BLACKSHIELD-CV, REAR, RIGHT HAND, BLACK
-
165136101 TUBE-PIVOT, 107.26MM, 10.33IDTUBE-PIVOT, 107.26MM, 10.33ID
-
175437229 BUSHING-CONTROL ARM, WEARBUSHING-CONTROL ARM, WEAR
-
187518522 SCR-3/8-24X6-1/2 HXFLG, GR5-YSCR-3/8-24X6-1/2 HXFLG, GR5-Y
-
191016022-067 WELD-CONTROL, LOWER, LEFT HAND, BLACKWELD-CONTROL, LOWER, LEFT HAND, BLACK
-
191016023-067 WELD-CONTROL, LOWER, RIGHT HAND, BLACKWELD-CONTROL, LOWER, RIGHT HAND, BLACK
-
207517632 SCREWSCREW
-
215249289 BRKT-CONTROL-ARM, PIVOTBRKT-CONTROL-ARM, PIVOT
-
227518365 BOLT-3/8-16X7 HEX FLANGE GR5BOLT-3/8-16X7 HEX FLANGE GR5
-
237080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
245136102 BUSHING-PIVOT, WEAR, 10.33 DBUSHING-PIVOT, WEAR, 10.33 D
