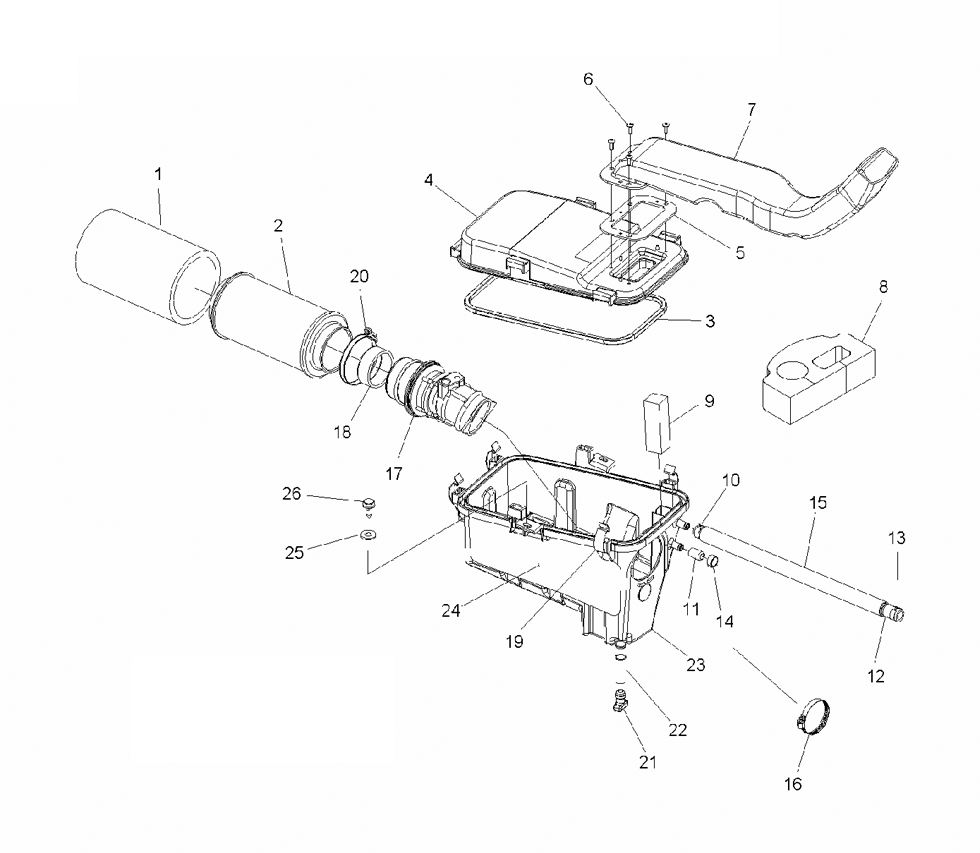

AIR INTAKE SYSTEM для Polaris SPORTSMAN X2 700 EFI (TN68AZ) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
15811633 FILTER, PRECLEAN, SLEEVEFILTER, PRECLEAN, SLEEVE
-
27080595 FILTER, AIRFILTER, AIR
-
35812829 SEAL-AIRBOX COVERSEAL-AIRBOX COVER
-
45436278 COVER-AIR BOXCOVER-AIR BOX
-
55412748 GASKET-INTAKEGASKET-INTAKE
-
67517317 SCREWSCREW
-
75436957 DUCT-AIR INTAKEDUCT-AIR INTAKE
-
85812773 SEAL-FOAM, LARGE INTAKESEAL-FOAM, LARGE INTAKE
-
95812910 FILTER-CRANKCASEFILTER-CRANKCASE
-
107080699 CLAMP, HOSECLAMP, HOSE
-
115433396 CAP, END, 406-12, 3/4 BLACKCAP, END, 406-12, 3/4 BLACK
-
125412615 KIT-BREATHER LINE, SINGLE PCKIT-BREATHER LINE, SINGLE PC
-
137080694 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
147080003 CLAMP, HOSECLAMP, HOSE
-
158450108-34 SHEATH-REFLECT SLEEVE, 19X34CMSHEATH-REFLECT SLEEVE, 19X34CM
-
167080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
175412842 BOOTBOOT
-
185433847 SLEEVE-CARB, INNERSLEEVE-CARB, INNER
-
195249292 CLIP-AIR BOXCLIP-AIR BOX
-
207080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
215435299 PLUG-TRAPPLUG-TRAP
-
228450059-150 FUEL LINEFUEL LINE
-
235435981 BOX-AIR INTAKE, 4 STROKEBOX-AIR INTAKE, 4 STROKE
-
245812771 FOIL-AIRBOX, , 9.75 X 4.50FOIL-AIRBOX, , 9.75 X 4.50
-
257555859 WASHER, FLATWASHER, FLAT
-
267515179 SCREWSCREW
