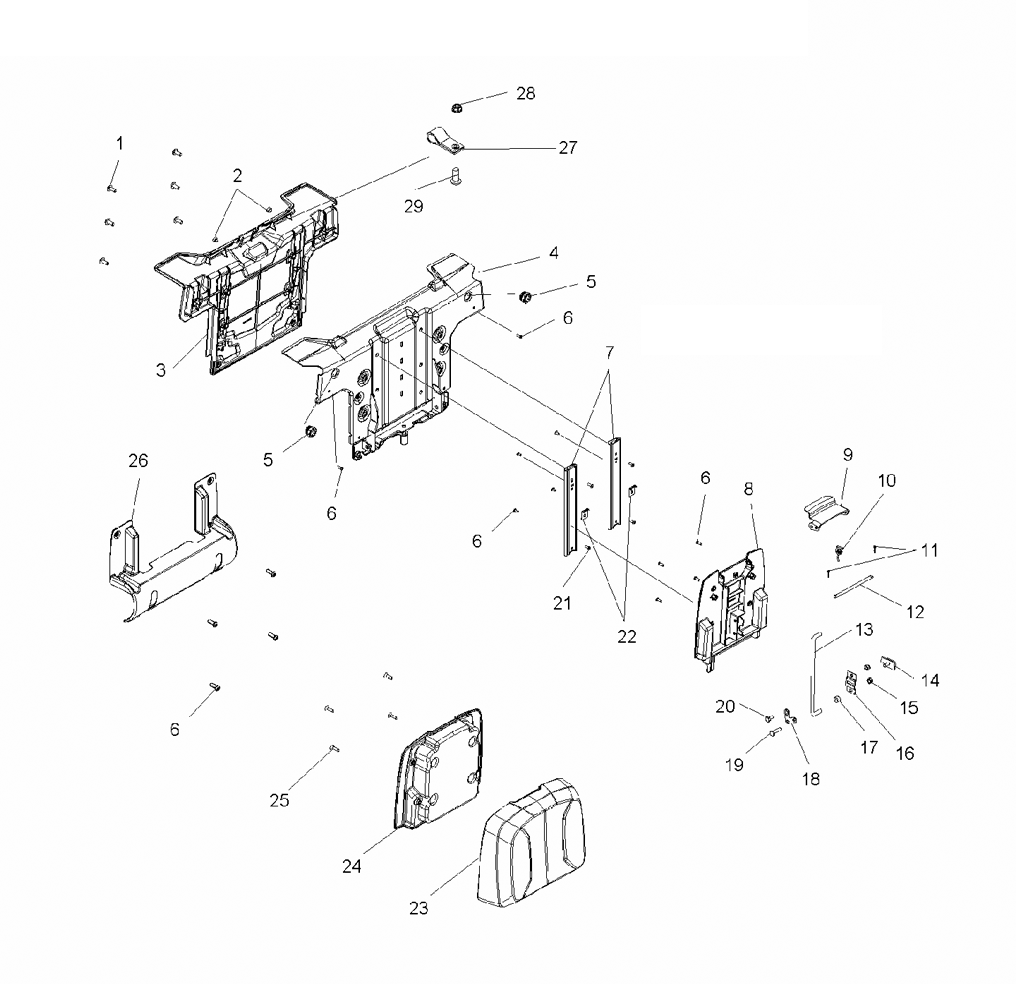

SEAT - PASSENGER - BACK для Polaris SPORTSMAN X2 700 EFI (TN68AZ) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
17518601 SCR-5/16-18X3/4 TR/TX-GR5SCR-5/16-18X3/4 TR/TX-GR5
-
25413087 BUMPER-RUBBER, 1/2'' ODBUMPER-RUBBER, 1/2'' OD
-
35436531 BASE-COVER, PASS SEATBASE-COVER, PASS SEAT
-
41015676-067 WELD-SUPPORT, SEAT BACK, BLACKWELD-SUPPORT, SEAT BACK, BLACK
-
55412994 GROMMET-SEAT LATCHGROMMET-SEAT LATCH
-
67512076 SCREWSCREW
-
77081379 SLIDE-SINGLE EXTENSION [PAIR]SLIDE-SINGLE EXTENSION [PAIR]
-
85436532 BASE-SLIDER, PASS SEATBASE-SLIDER, PASS SEAT
-
95250944 PLATE-HANDLE, SEATPLATE-HANDLE, SEAT
-
107043219 SPRING-LATCHSPRING-LATCH
-
117661010 PIN, COTTERPIN, COTTER
-
125135336 ROD-PASSENGER SEATROD-PASSENGER SEAT
-
135250162 ROD-HANDLE, PASS, BACKROD-HANDLE, PASS, BACK
-
145631980 LATCH-SLIDER, CASTLATCH-SLIDER, CAST
-
157542122 NUT-NYLOKNUT-NYLOK
-
165249903 PLATE-RETAINER, SLIDEPLATE-RETAINER, SLIDE
-
177556373 SPACER-.34 ID X .56 OD X .31SPACER-.34 ID X .56 OD X .31
-
185250163 PLATE-SLIDER, PIVOTPLATE-SLIDER, PIVOT
-
197518615 SCR-SHLDR, 5/16X3/8X1/4-20SCR-SHLDR, 5/16X3/8X1/4-20
-
207512102 SCREWSCREW
-
217518256 SCR-#8-32X.375'', TORX, TRI-YSCR-#8-32X.375'', TORX, TRI-Y
-
225250454 BRKT-STOP, SLIDERBRKT-STOP, SLIDER
-
235436149-070 BUN-SEAT, BLACKBUN-SEAT, BLACK
-
245436150 BASE-SEATBASE-SEAT
-
257517652 SCREWSCREW
-
265436533-070 COVER-LATCH, PASS, BACK, BLACKCOVER-LATCH, PASS, BACK, BLACK
-
275813086 HANDLE-SEATHANDLE-SEAT
-
287542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
297517685 SCREWSCREW
