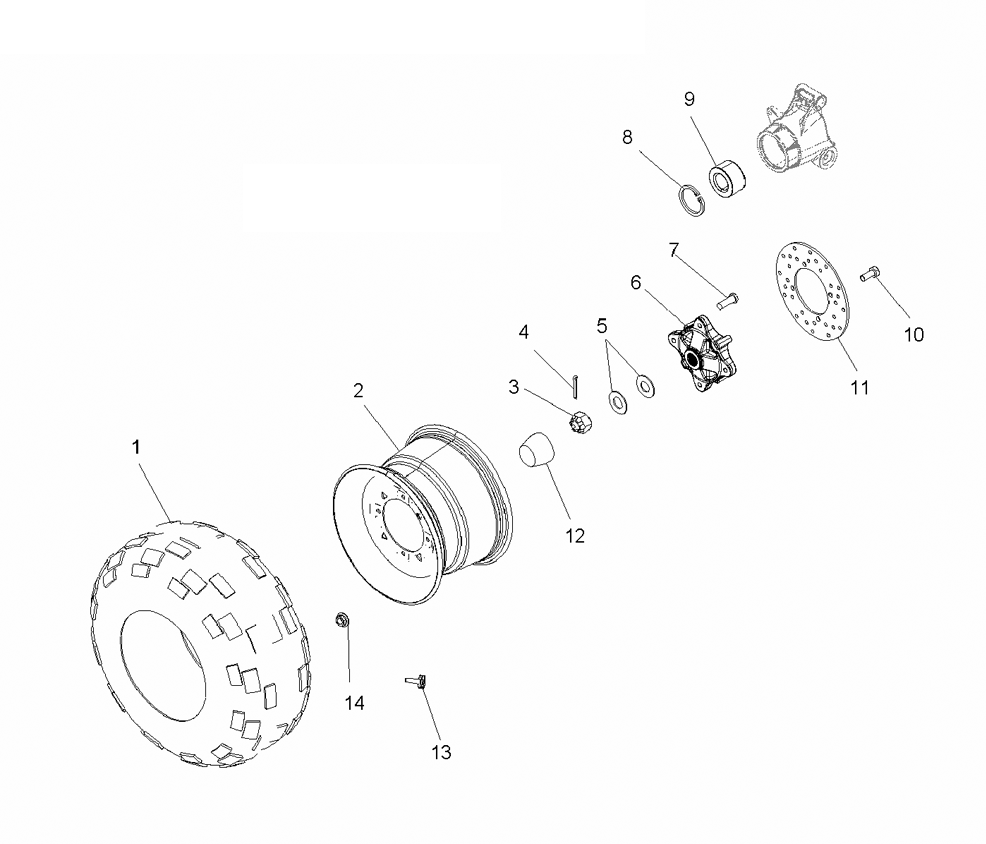

WHEEL - REAR для Polaris SPORTSMAN X2 700 EFI (TN68AZ) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
15412451 TIRE-REAR AT 25X11-12 489 3STRTIRE-REAR AT 25X11-12 489 3STR
-
21520992-486 WELD-RIM, REAR, 12X8, 10GA, SLVRWELD-RIM, REAR, 12X8, 10GA, SLVR
-
37543005 NUT, CASTLENUT, CASTLE
-
47661404 PIN, COTTERPIN, COTTER
-
57555796 WASHER, CONEWASHER, CONE
-
65135113 HUB-WHEEL, REAR, MACHHUB-WHEEL, REAR, MACH
-
77515513 STUDSTUD
-
87710440 RING, RETAININGRING, RETAINING
-
93585502 BEARING [BUILT 9/17/07 AND BEFORE]BEARING [BUILT 9/17/07 AND BEFORE]
-
93514635 BEARING-WHEEL, 40X74X40MM [BUILT 9/18/07 AND AFTER]BEARING-WHEEL, 40X74X40MM [BUILT 9/18/07 AND AFTER]
-
107518653 BOLT-3/8-16X3/4-HX/CP-GR5-BBOLT-3/8-16X3/4-HX/CP-GR5-B
-
115248250 DISC-BRAKE, REAR, 8.625X.188DISC-BRAKE, REAR, 8.625X.188
-
125413427 HUB-DUST COVERHUB-DUST COVER
-
131525017 VALVE, RIMVALVE, RIM
-
147547237 NUT-FLANGE, TWO PIECE, 3/8-24NUT-FLANGE, TWO PIECE, 3/8-24
